Professional dampers, vibration isolators for gimbals, sensors, equipments

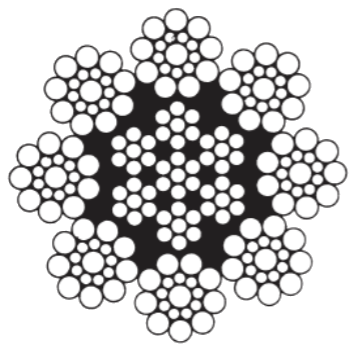

To mount the gimbal on a platform in motion one needs a gimbal damper. Gimbal dampers vibration isolators protects the gimbal from vibrations, structure-borne noise and shocks, it gives smoothness to the footage. In our products we use a unique version of the general wire rope isolator specially developed by us.
Handcrafted in EU (Budapest, Hungary).
| Type A | 3-12kg | drone (slider, crane, cable, dolly) | Ronin /Mx MōVI M5-M15 Pro Gremsy ACR LIDAR Insta360 Titan other sensors |
| Type A carbon | 0-5kg | drone DJI M300 xx | Lidar, hyperspectral and other sensors and cameras Specim AFX xx Yellowscan |
| Type B | 3-15kg | car direct, rc bike | Ronin /Mx MōVI M5-M15 Pro Gremsy ACR |
| Type C | 8-16kg | drone, slider, crane, cable, dolly | Ronin 2 MōVI Pro Insta360 Titan |
| Type D | 12-35kg | dolly, crane, spring arm, isolation arm, Balckarm, GFM isolator, Motocrane, Ideavision Hybris | GFM isolator, Motocrane, Ideavision Hybris |

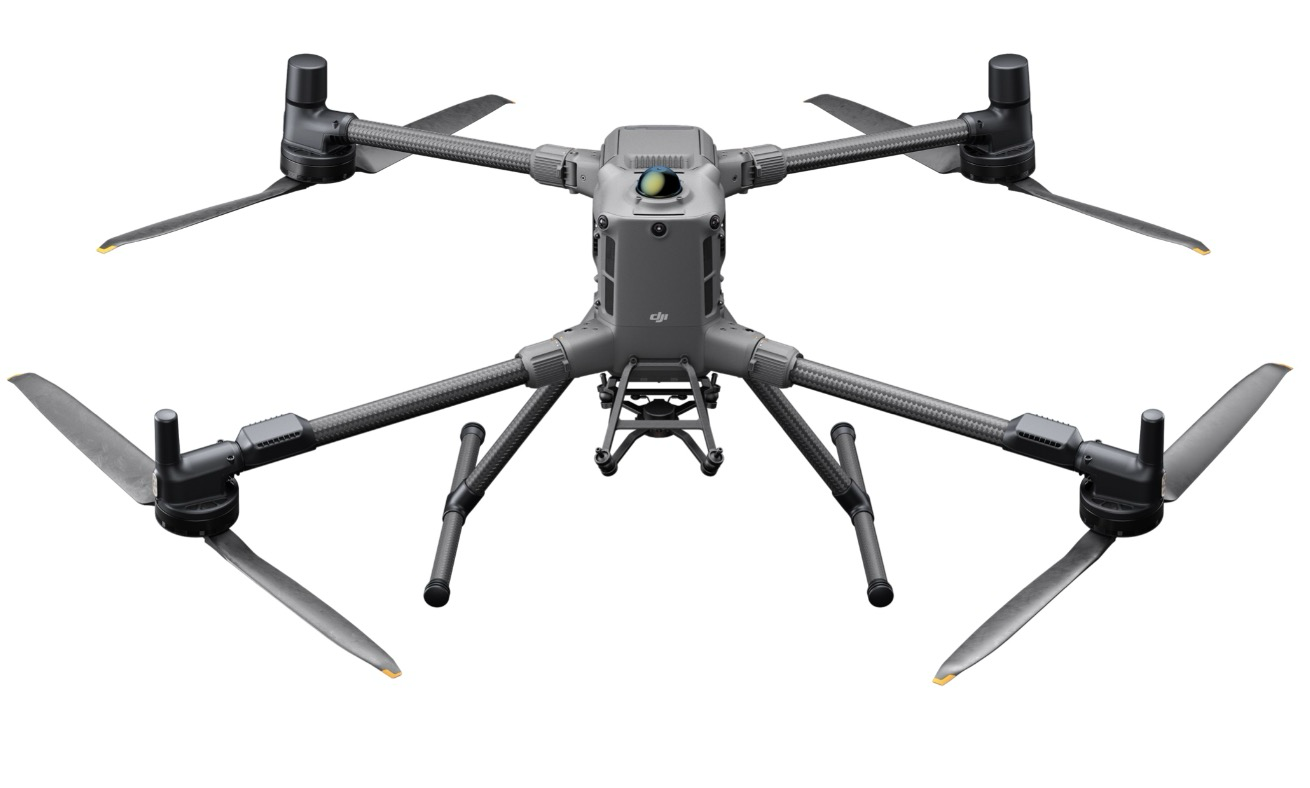

| DJI M300 mount | Dji Matrice 300 RTK | LIDAR other sensors | |
| DJI M600 mount | Dji M600 Matrice | Ronin /Mx MōVI M5-M15 Pro Gremsy ACR LIDAR other sensors | |
| DJI Wind 4 mount | Dji Wind 4 gimbal dampers vibration isolators | Ronin /Mx MōVI M5-M15 Pro Gremsy ACR LIDAR other sensors |

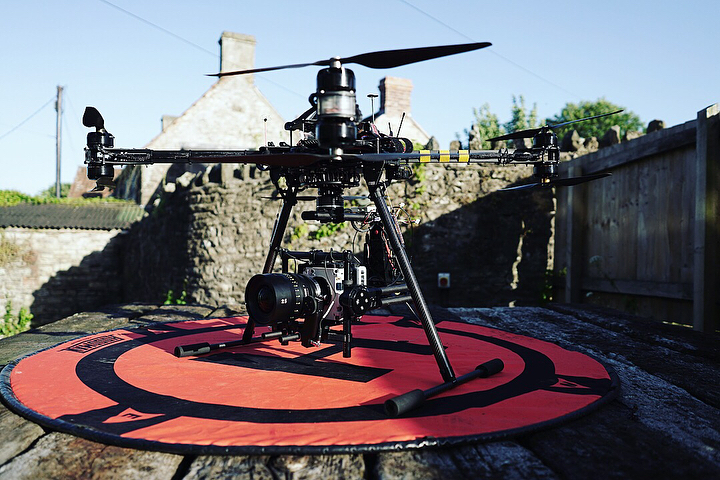

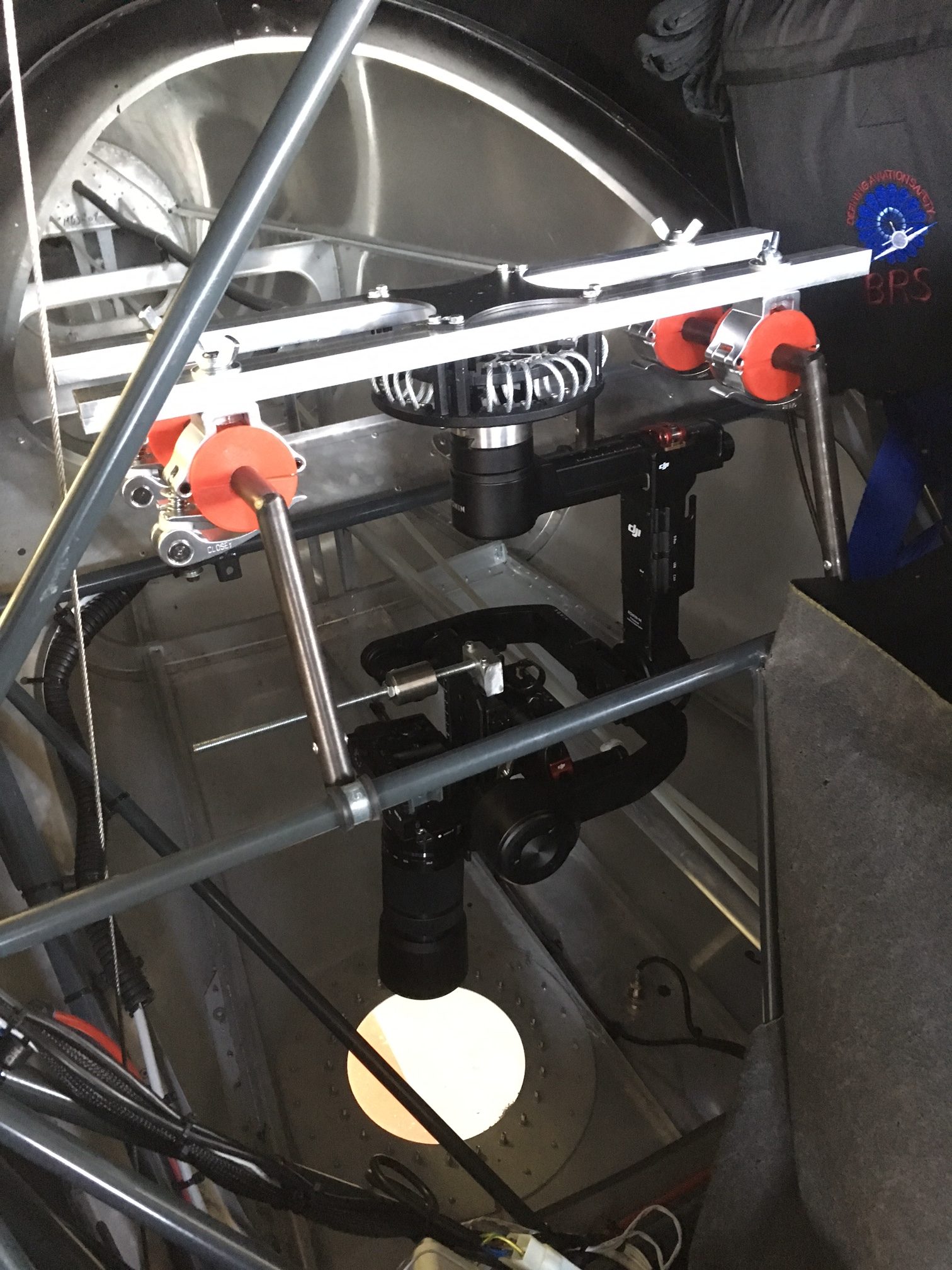

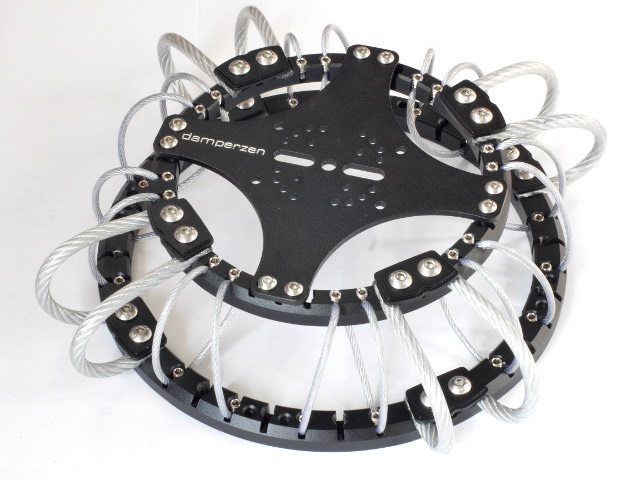

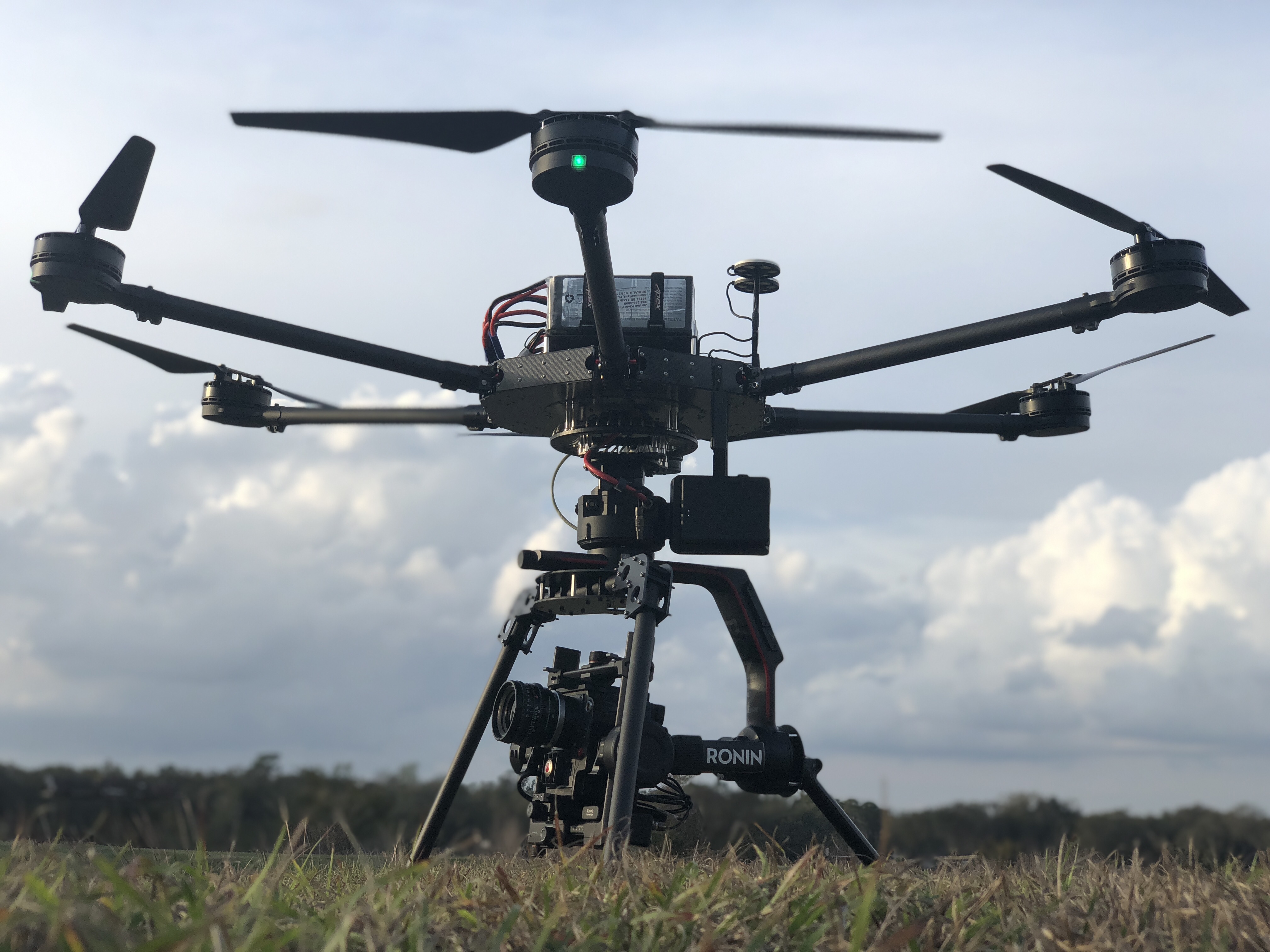

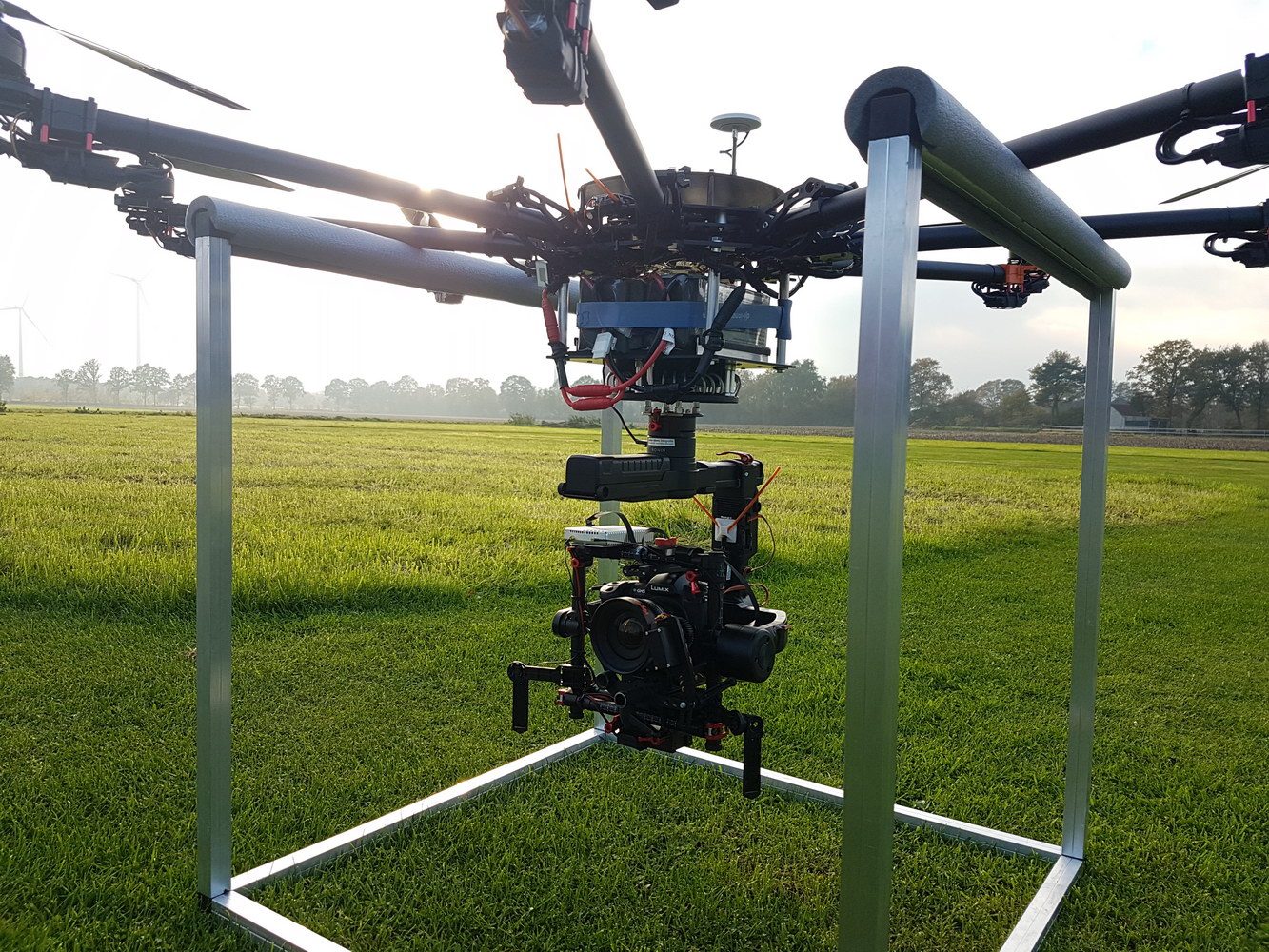

Type A [3-12kg drone slider crane cable dolly] gimbal dampers vibration isolators
 |

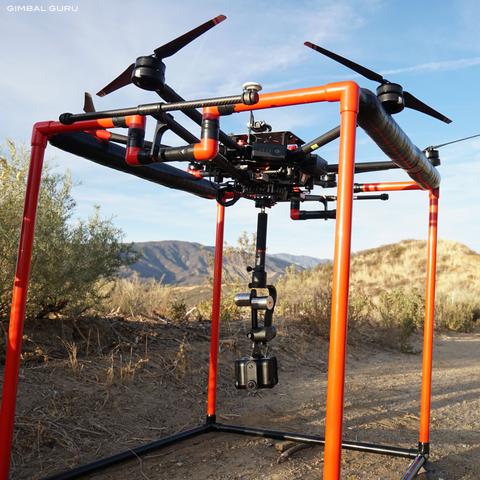

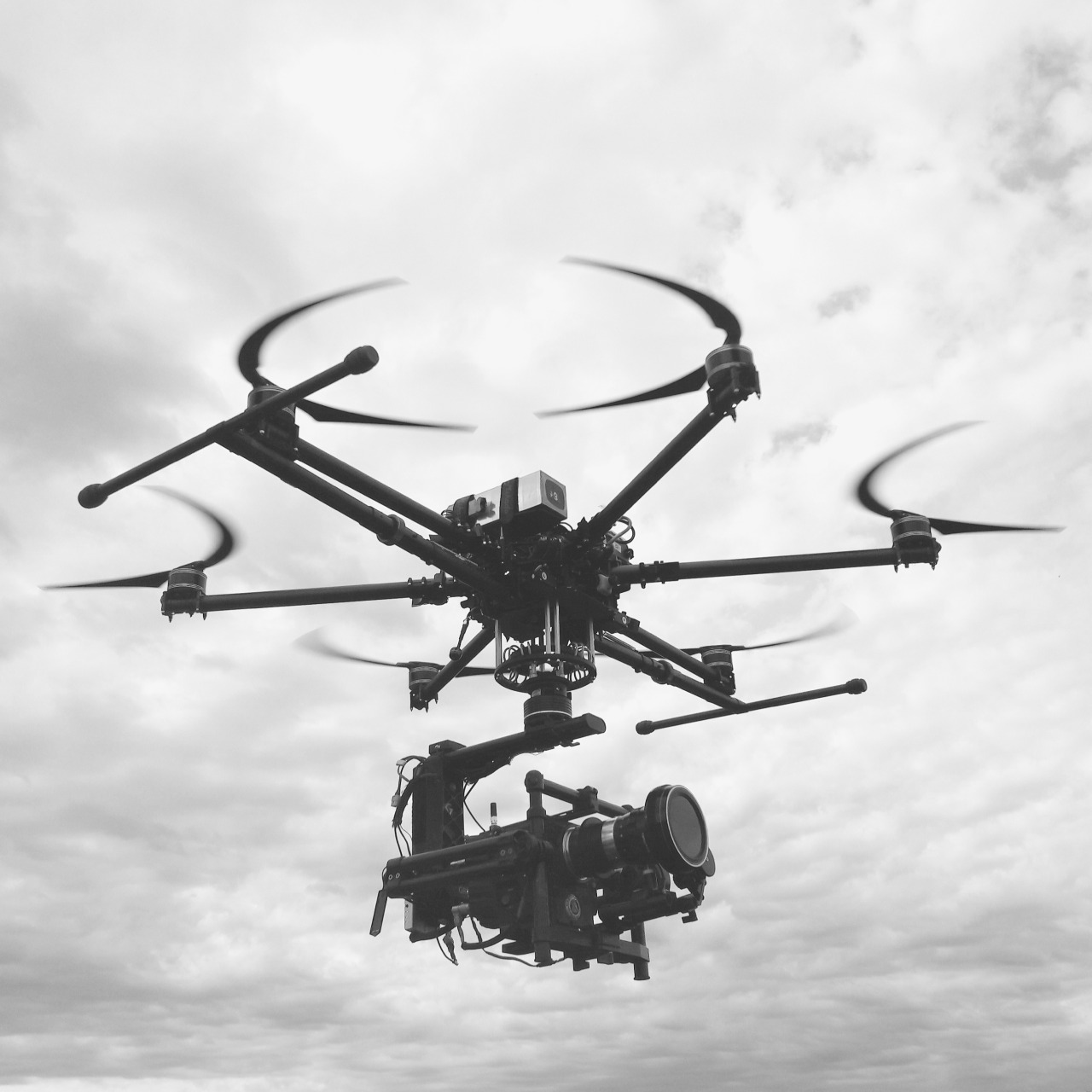

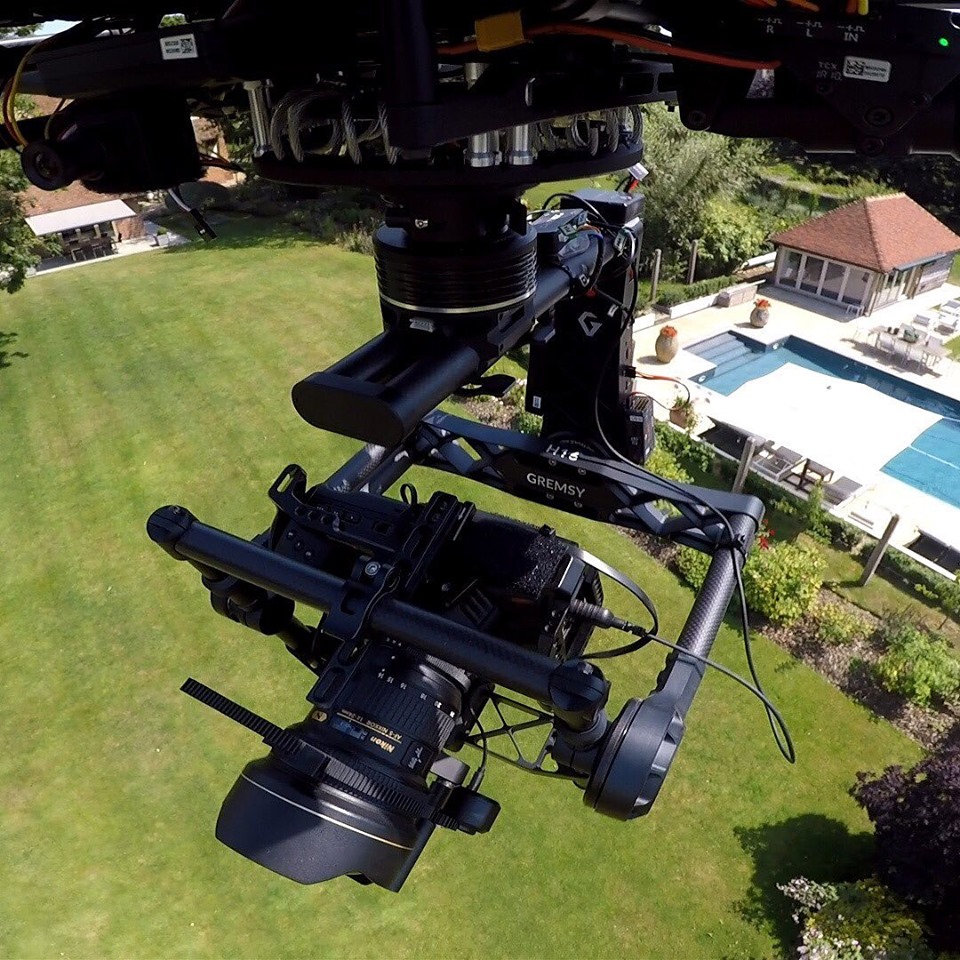

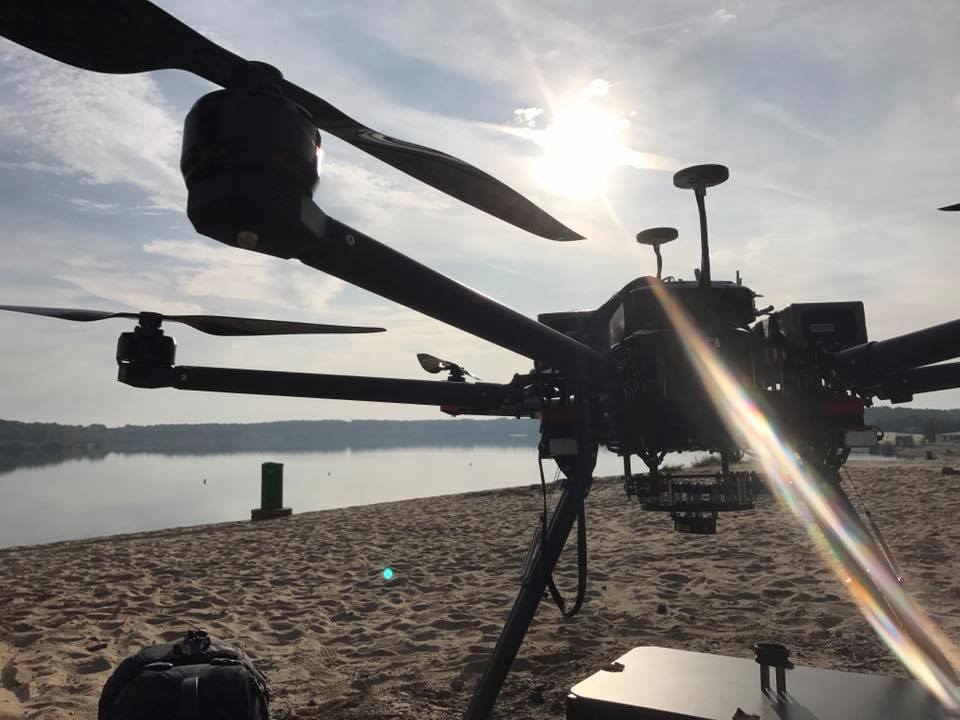

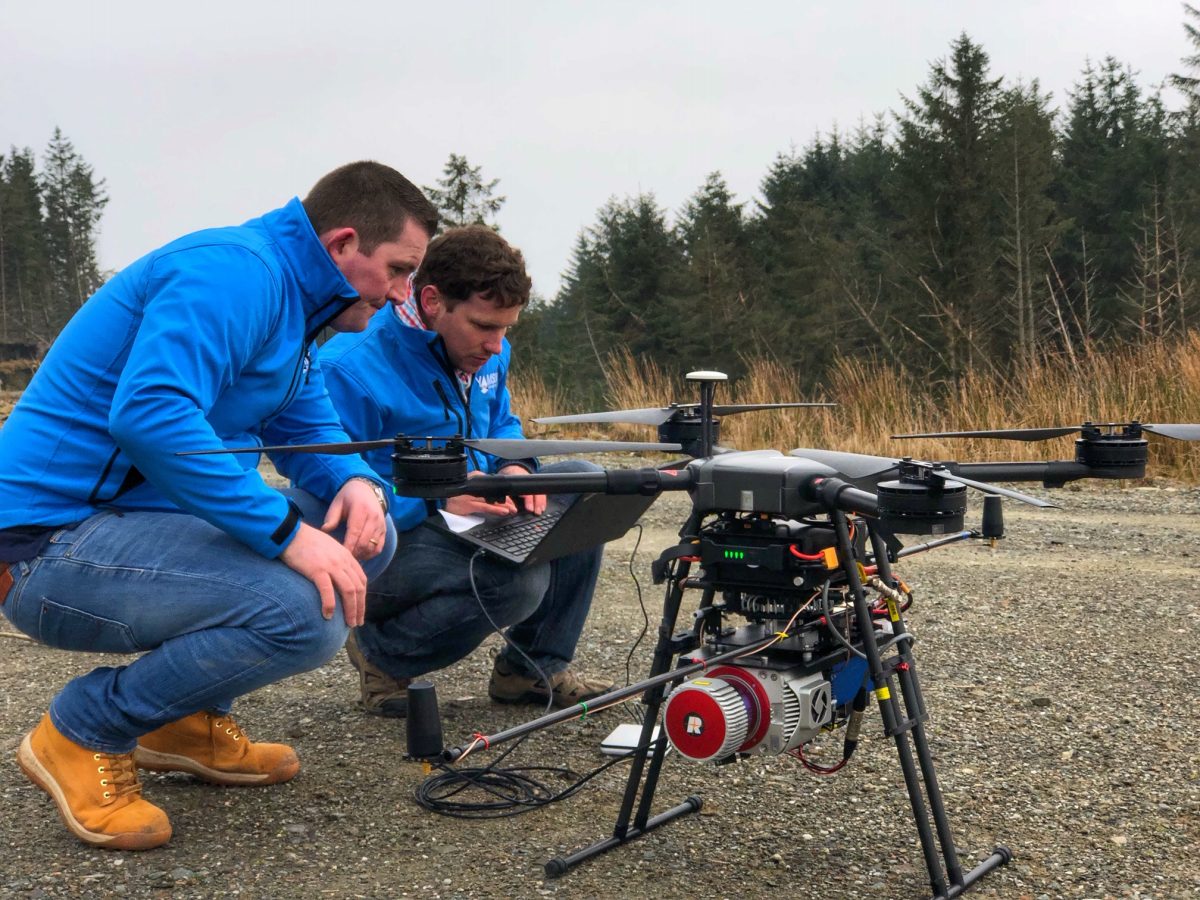

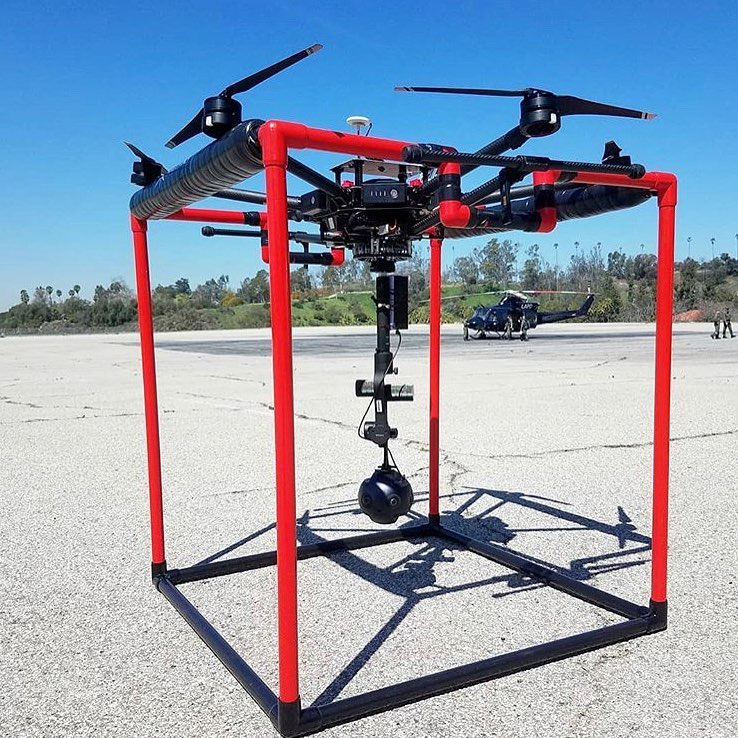

  Matrice 300 customer: geoslam.com     customer: DiCarlo Precision Instrument  customer: thaichristen.tumblr.com  customer: facebook.com/sdimagingUK/  customer:  customer:  customer: gimbalguru.com  customer: bitframe.at  photo: Gimbal Guru  customer: Visualskies Ltd  customer:  customer: UFlyte  customer:  customer: Geoslam  customer: Aberystwyth University  customer: Geoslam  photo: Gimbal Guru   photo: Gimbal Guru       photo: beehiveaerial.com  customer: SwiftCine  customer:  customer: blueskyvisionmedia  customer:     Matrice 300 customer: geoslam.com  |
 |
M600 upgrade | https://www.youtube.com/watch?v=KT5i4gUuuU0&t=182s |
| M600 upgrade | https://www.youtube.com/watch?v=W27Db6QfdsE | |

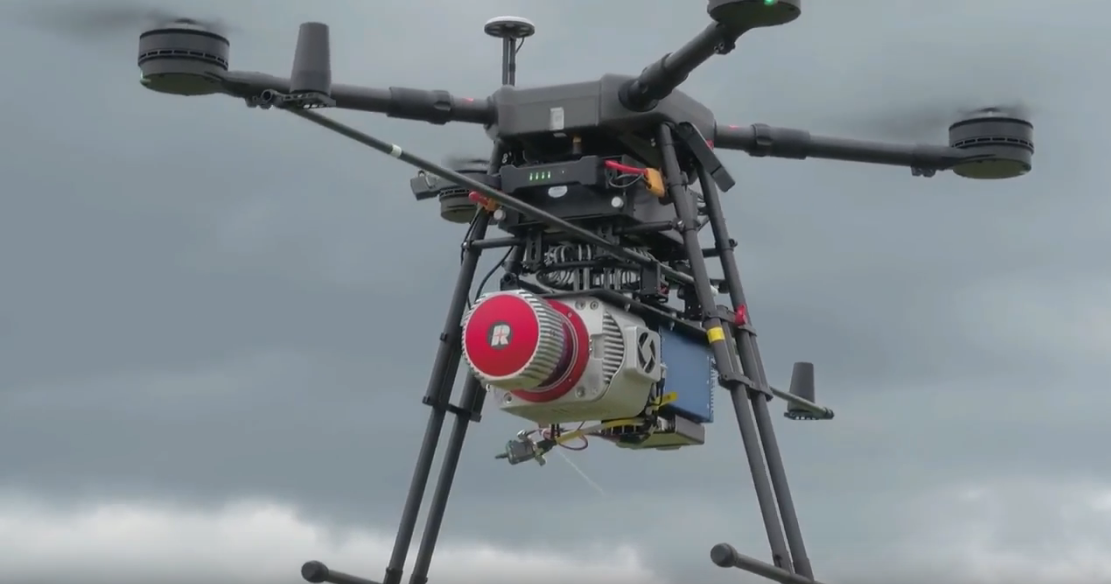

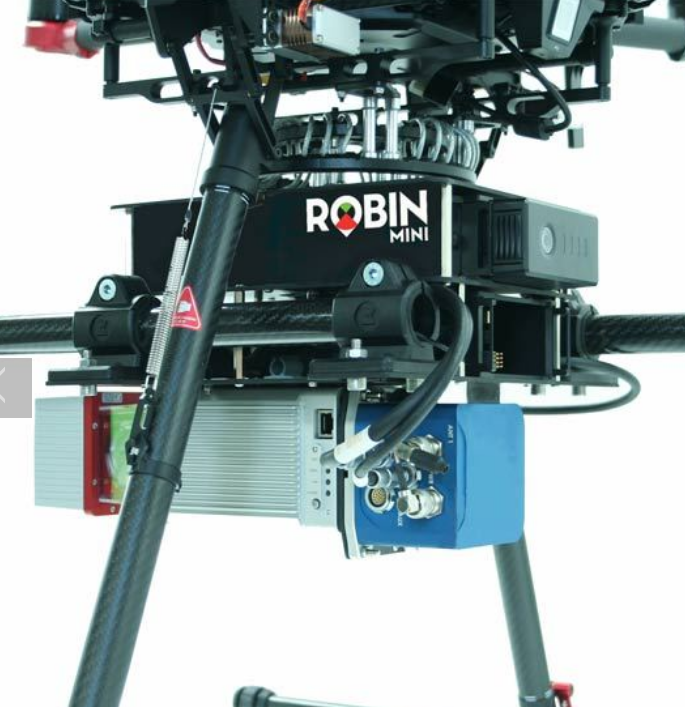

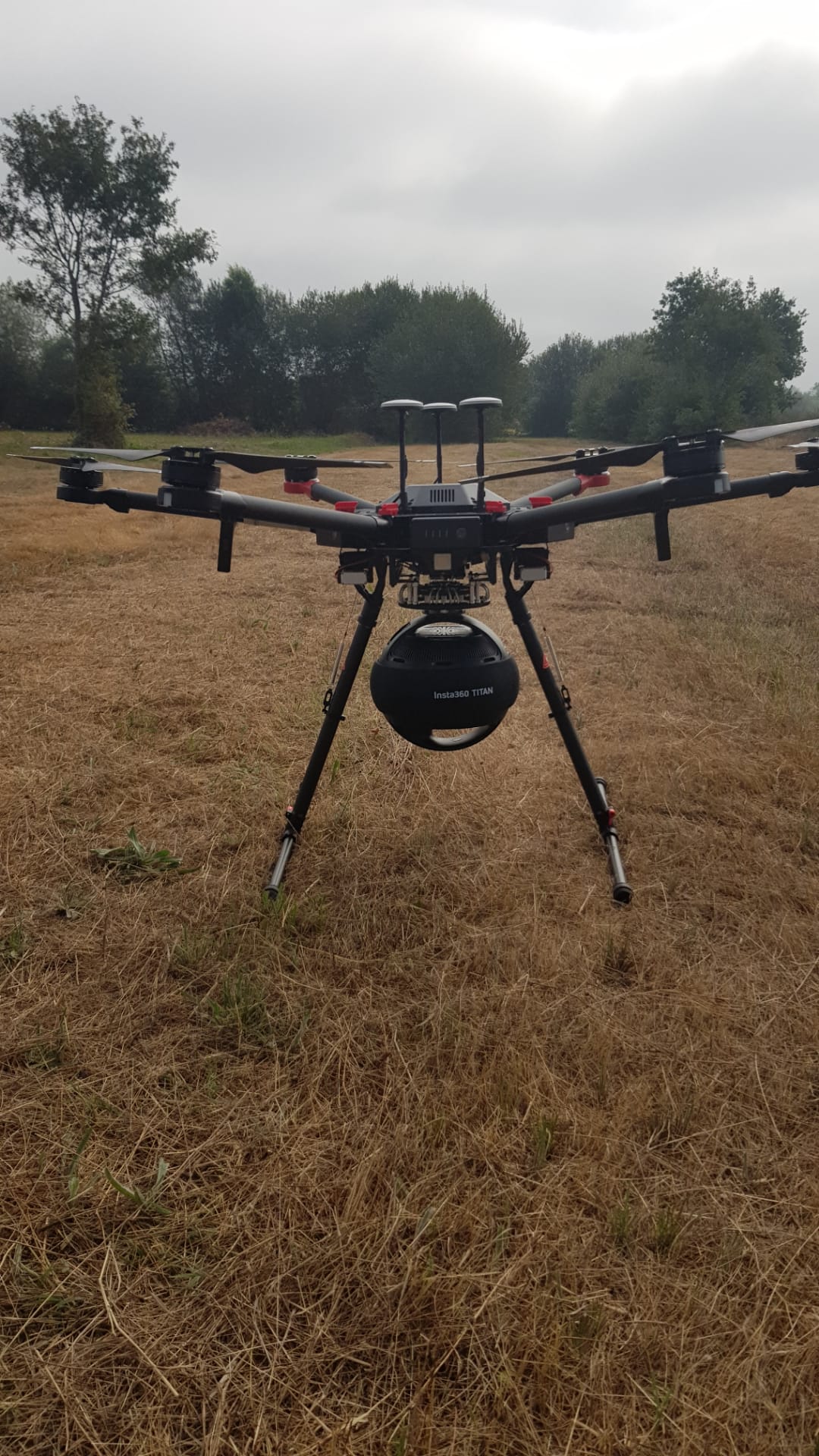

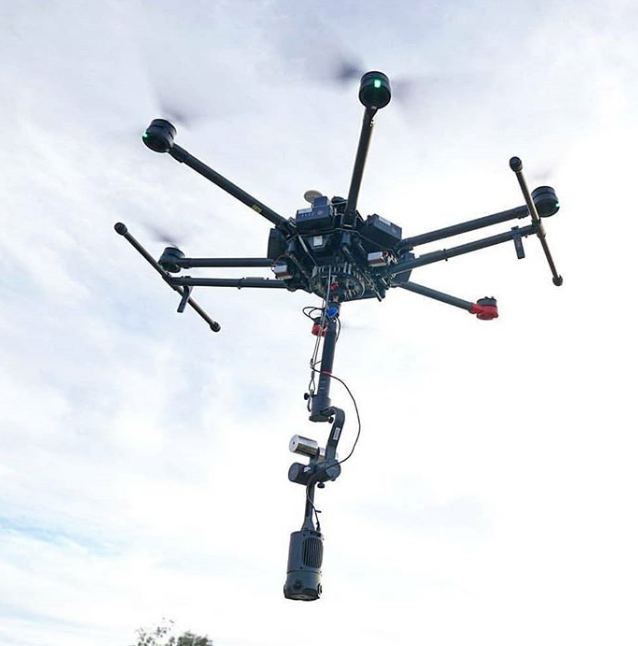

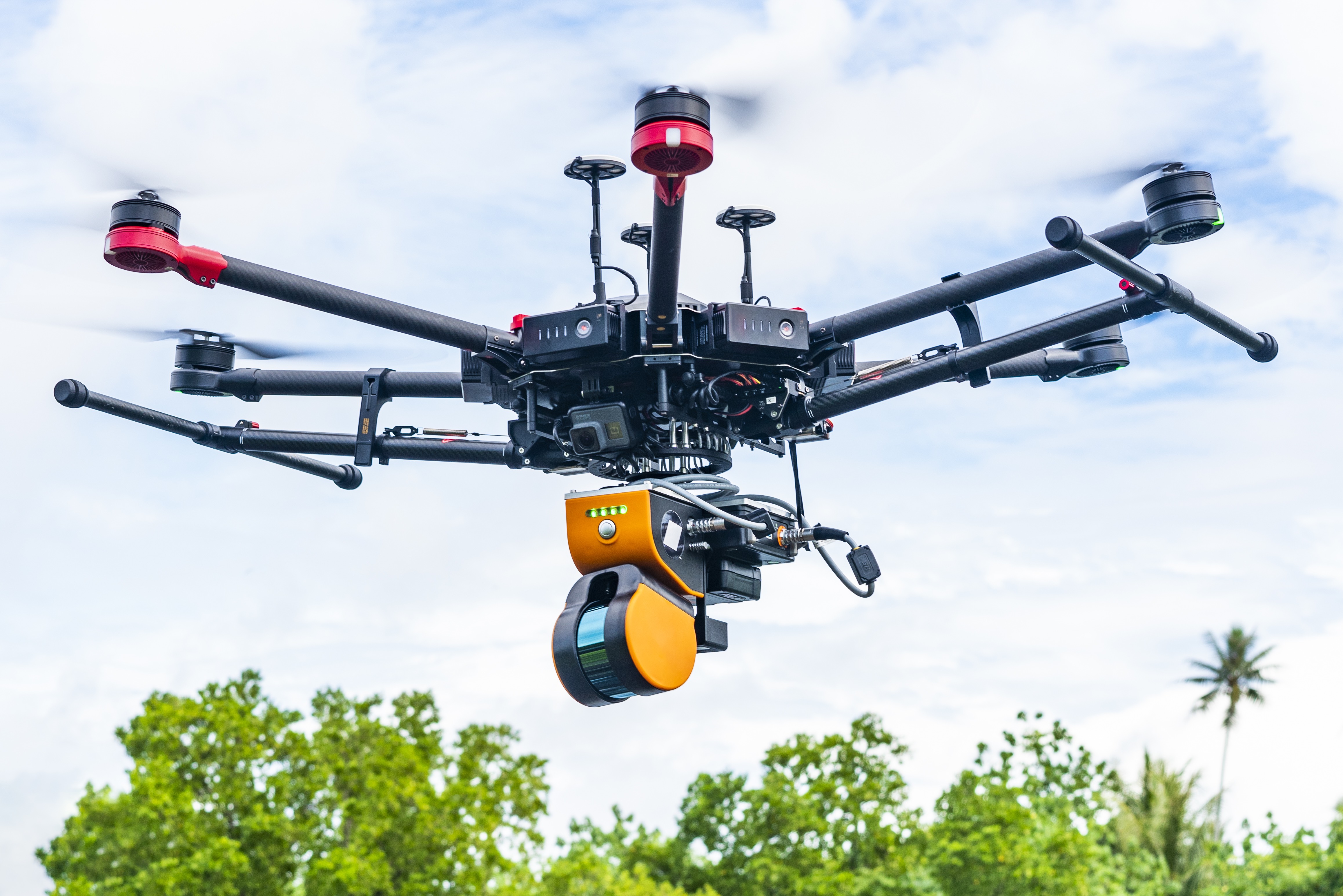

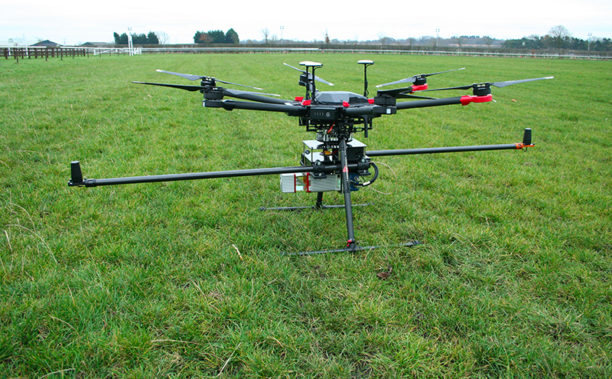

| DJI M600 UAV Lidar | https://www.youtube.com/watch?v=UbhH3OYO8qo | |
| DJI Wind4 UAV Lidar | https://www.youtube.com/watch?v=3ysdTTedXhQ | |
| DJI M600 UAV Zebhorizon | https://www.youtube.com/shorts/U2KpuILF5pM |

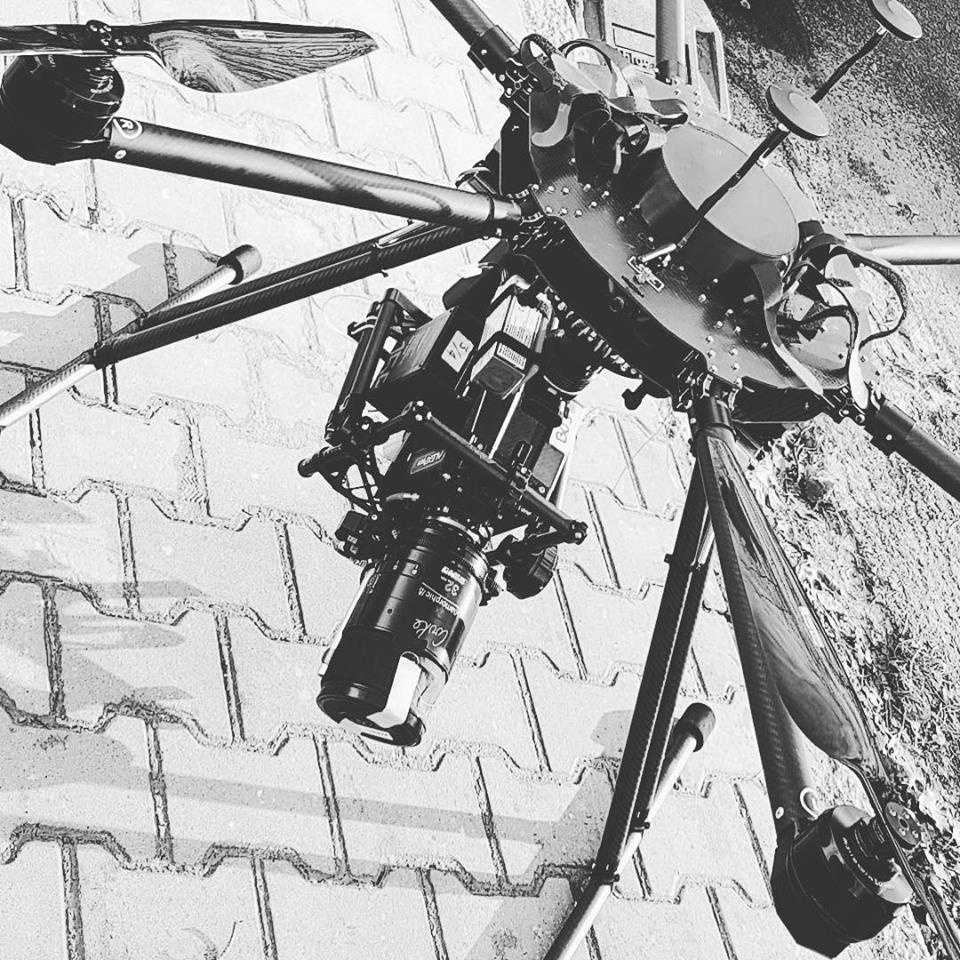

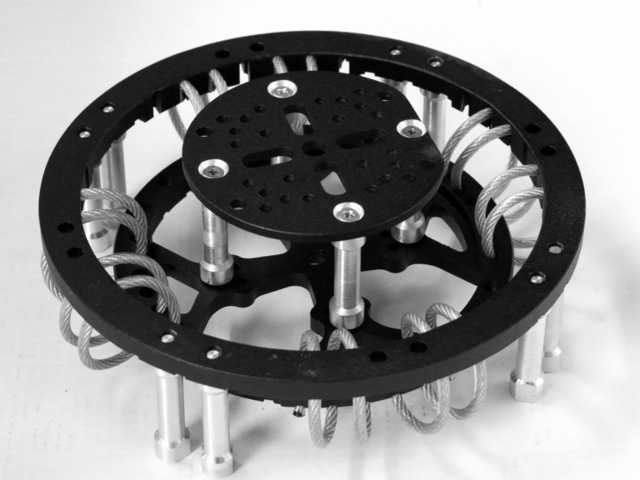

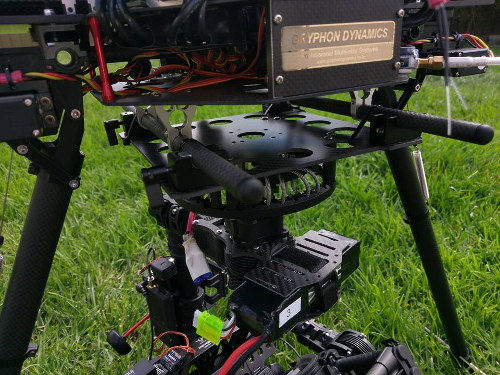

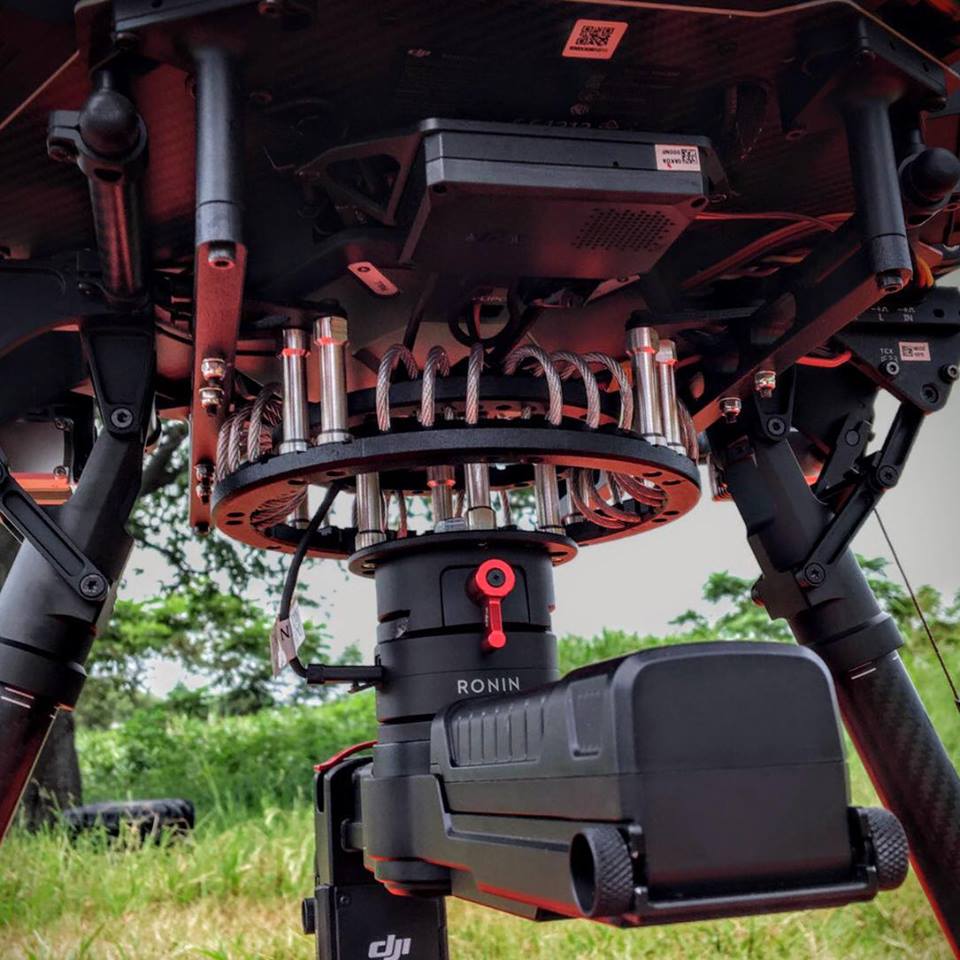

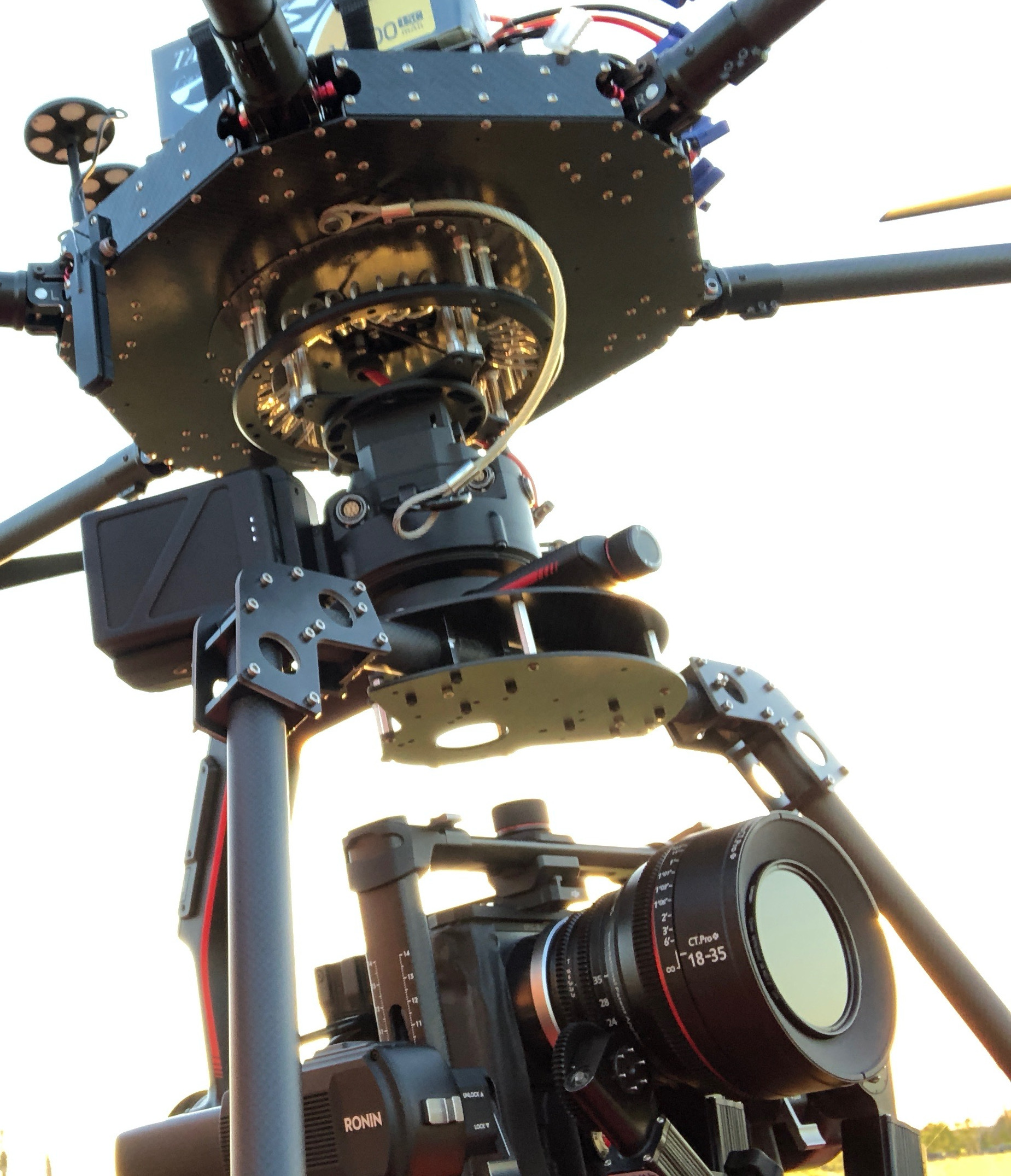

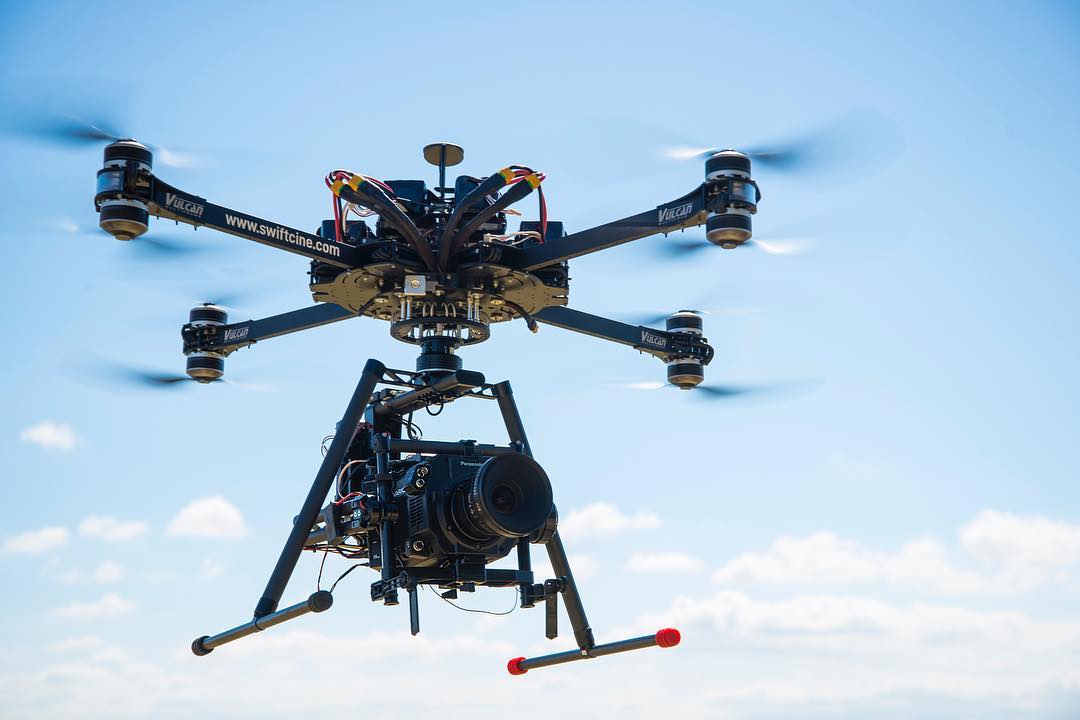

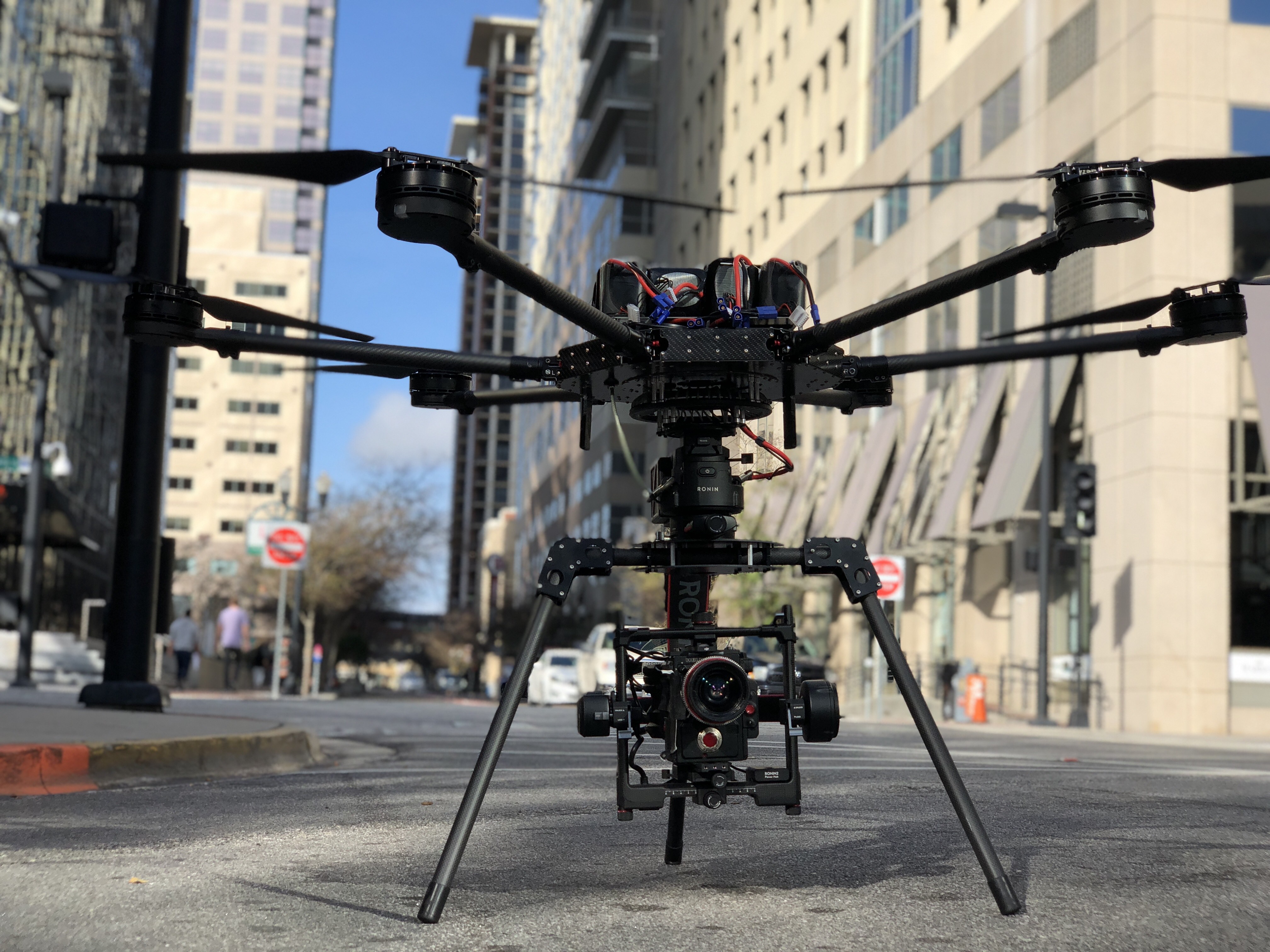

Type A is a light, highly efficient damper developed for drons (MōVI M5, M10, M15, DJI Ronin, Ronin M, Gremsy, ACR, Insta360 Titan). Compared to the widespread rubber vibration reduction systems, this provides a much better performance on helicams.
- 3-12kg
- perfect for drone slider crane cable dolly
- can be set for under or overslung
- works optimally in a wide range of weights
- significantly increases the wind resistance ability of the drone
- reduces the susceptibility to self-oscillation
- not an ad-hoc product, it is designed properly to eliminate the 80-300 Hz vibrations
- d=150mm, h=~30/50mm
 | type A damper normal overslung, standing | EUR250 | |
 | type A damper hanging underslung, inverted, drone | EUR300 | |

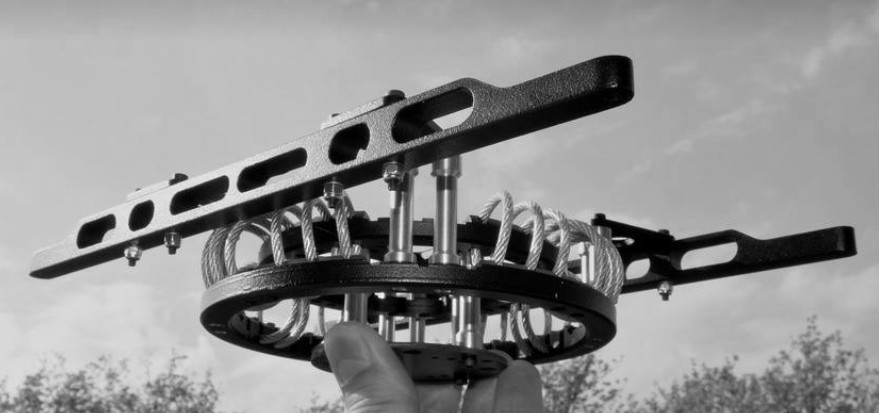

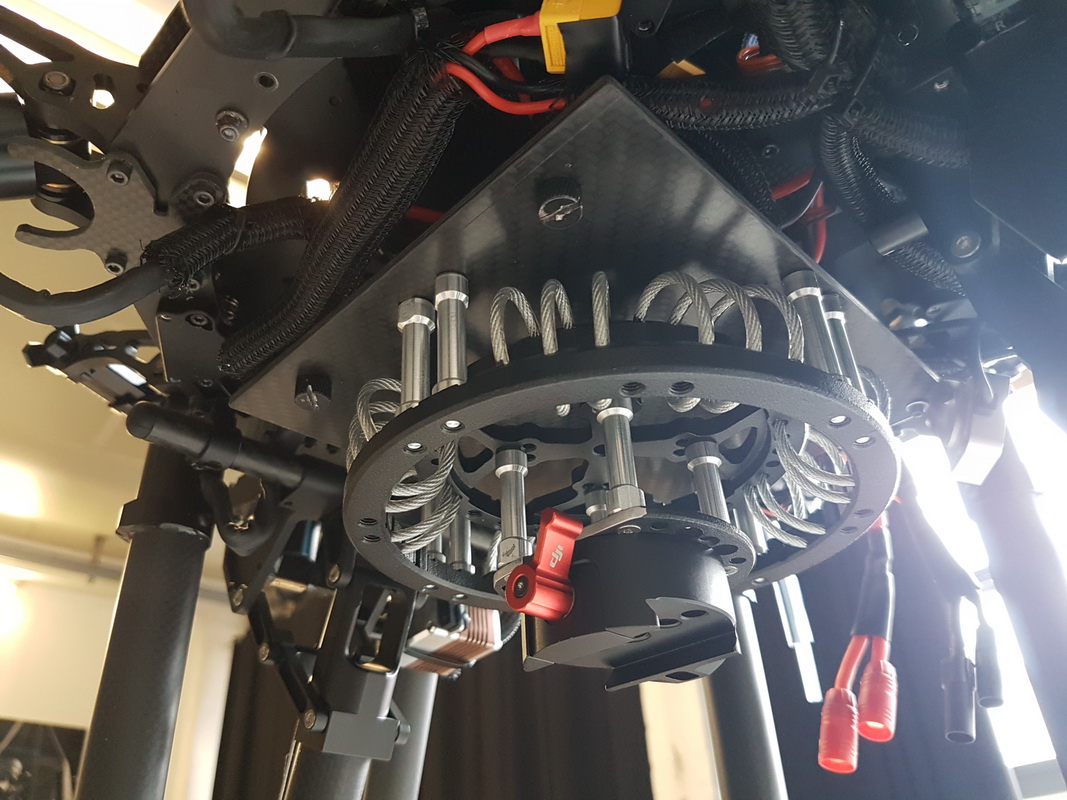

 | DJI M600 isolator upgrade download: Installation Instructions | EUR350 | |
| DJI M300 isolator upgrade | EUR350 | |

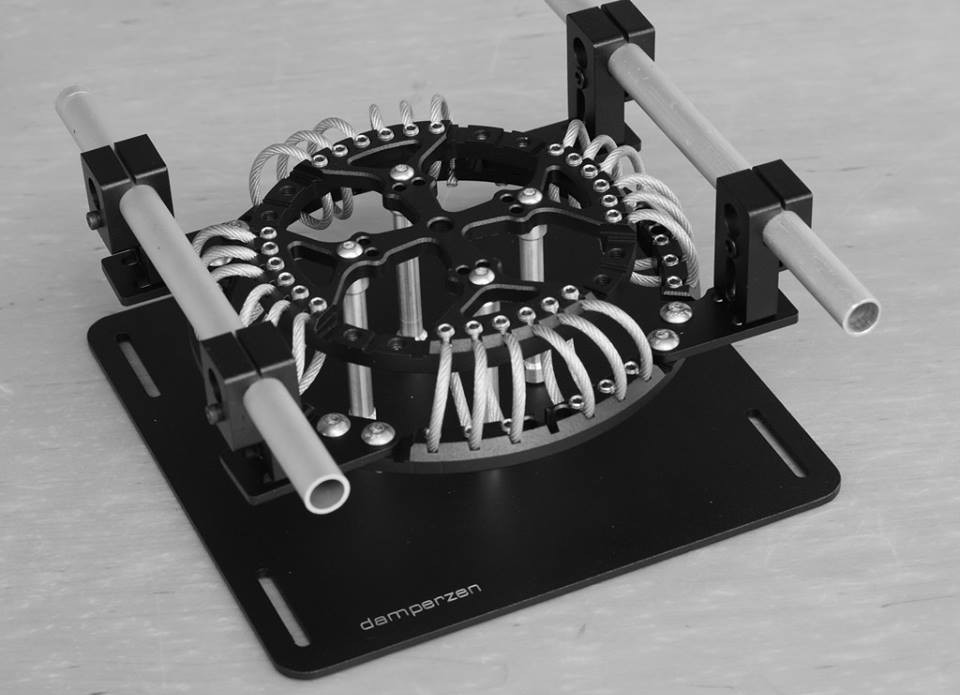

 | Dji Wind 4 isolator upgrade | EUR350 | |

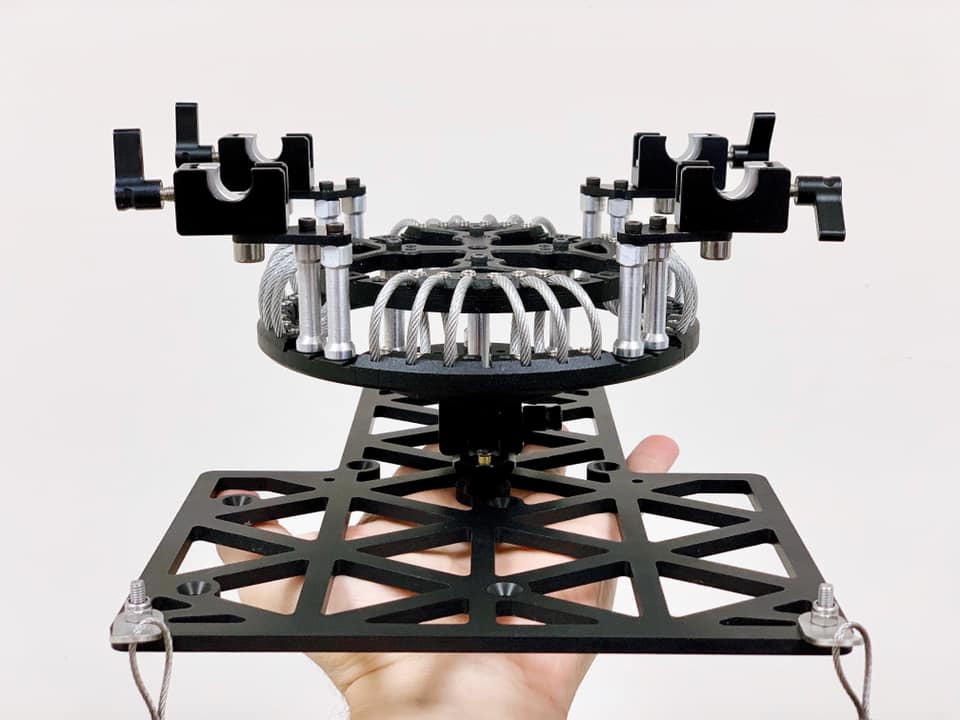

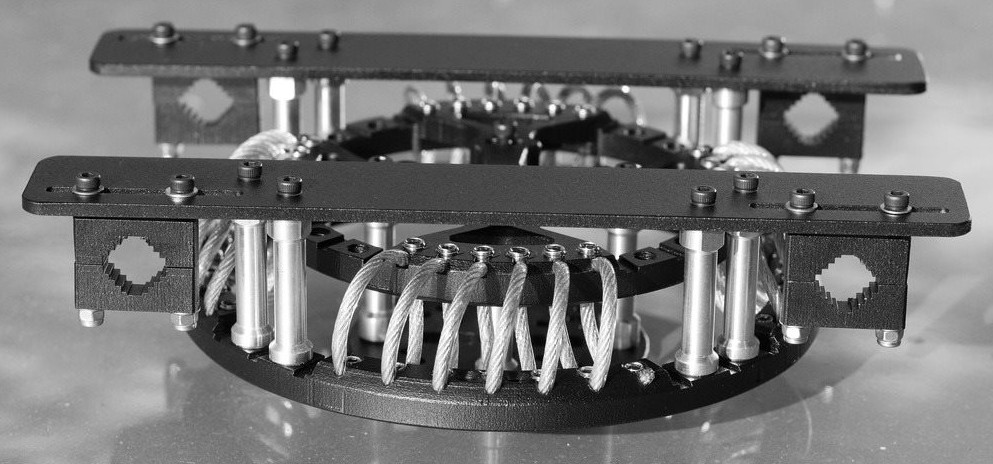

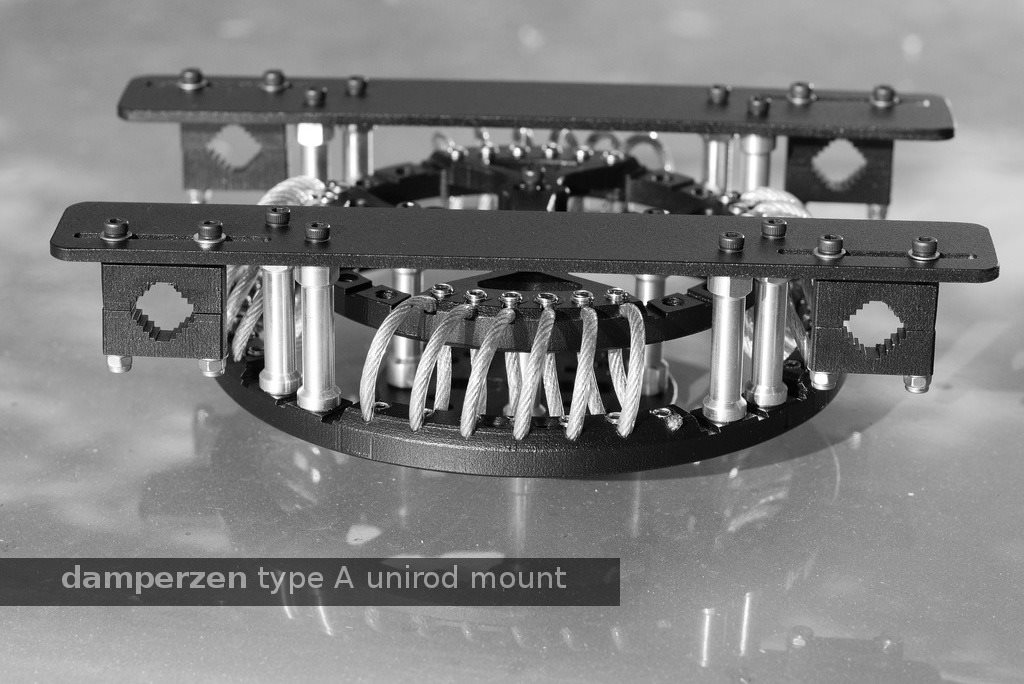

 | Uni rod mount adjustable clamp distance | EUR350 | |

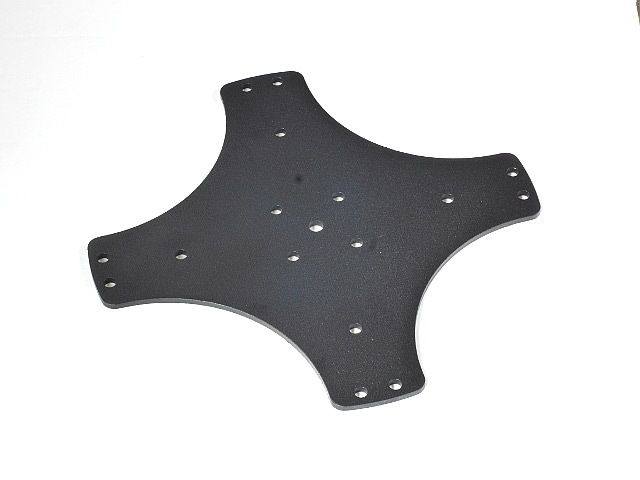

 | type A damper mount plate universal mount plate | EUR25 | |

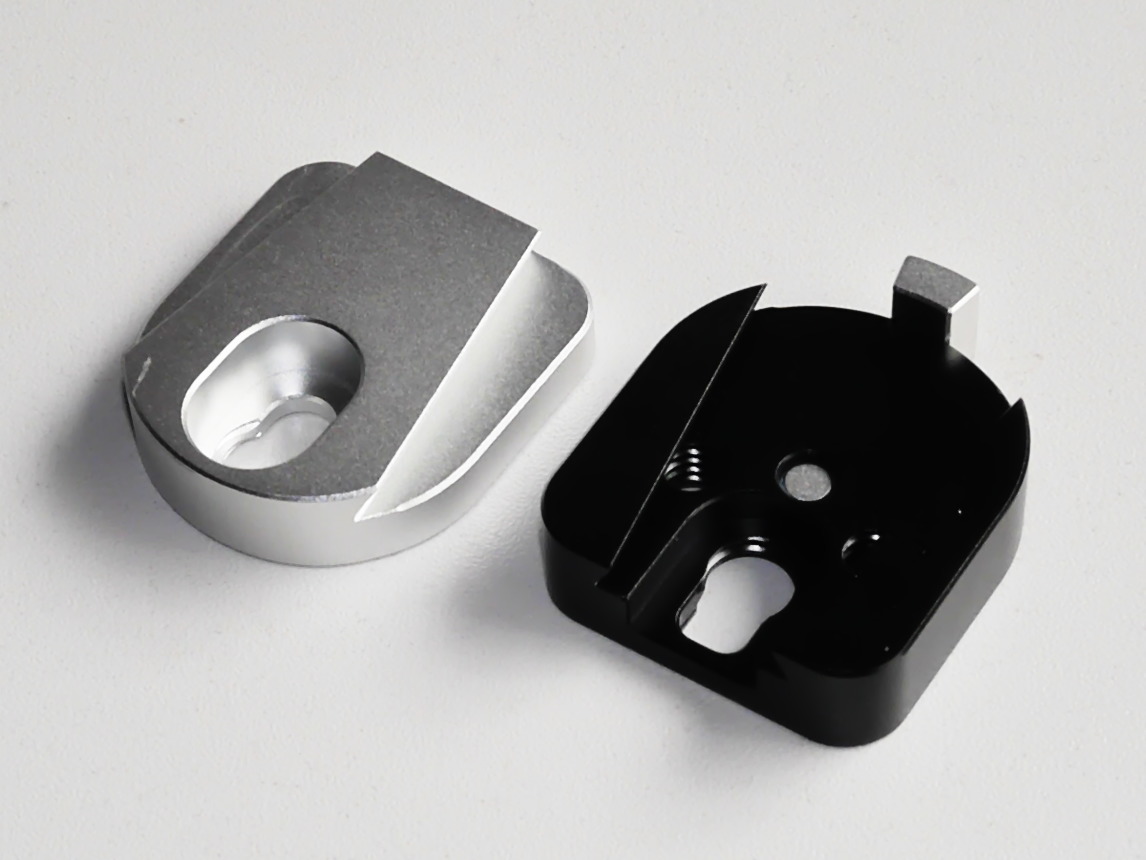

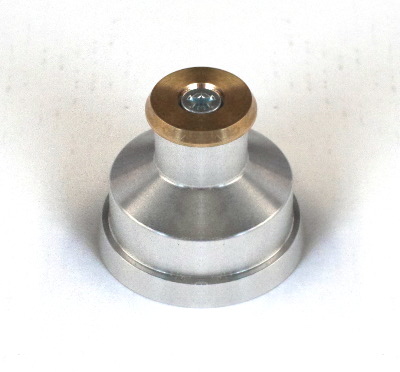

 | Movi toad Freefly Movi M10 M15 PRO | EUR50 | |

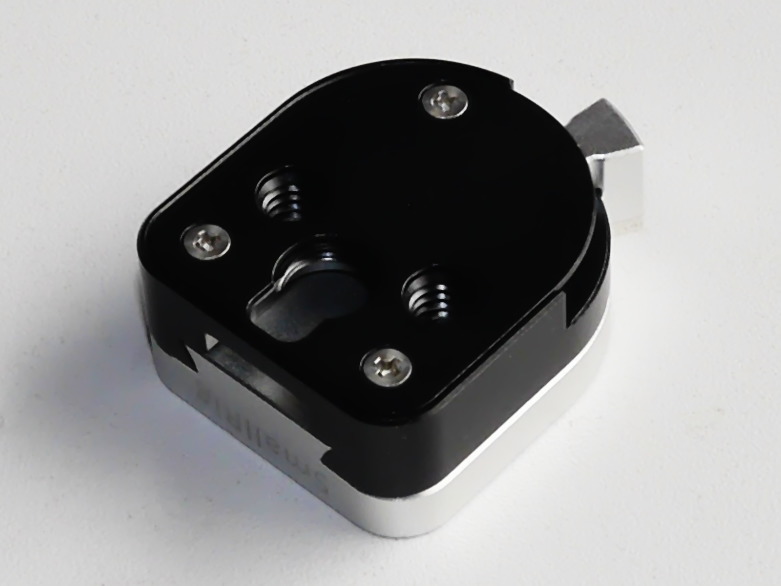

 | Ronin type QR DJI Ronin, Mx | EUR50 | |

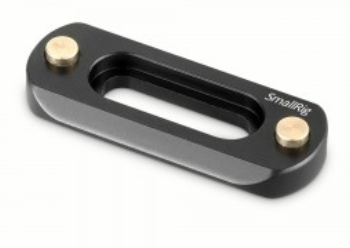

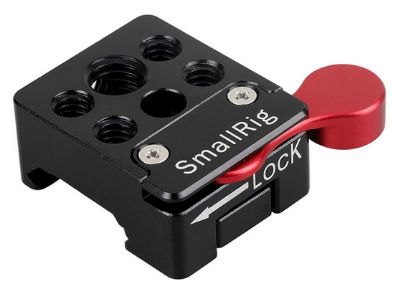

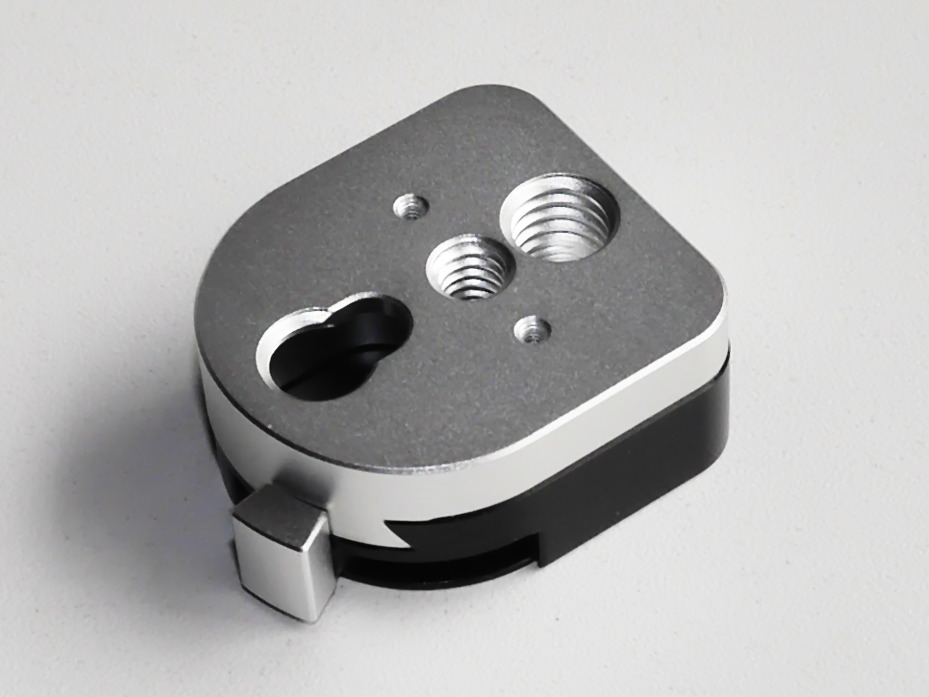

   | SmallRig Quick Release (max. 2.5kg) perfect for small ir cameras, lidars, stable, precise, lightweight | EUR40 |

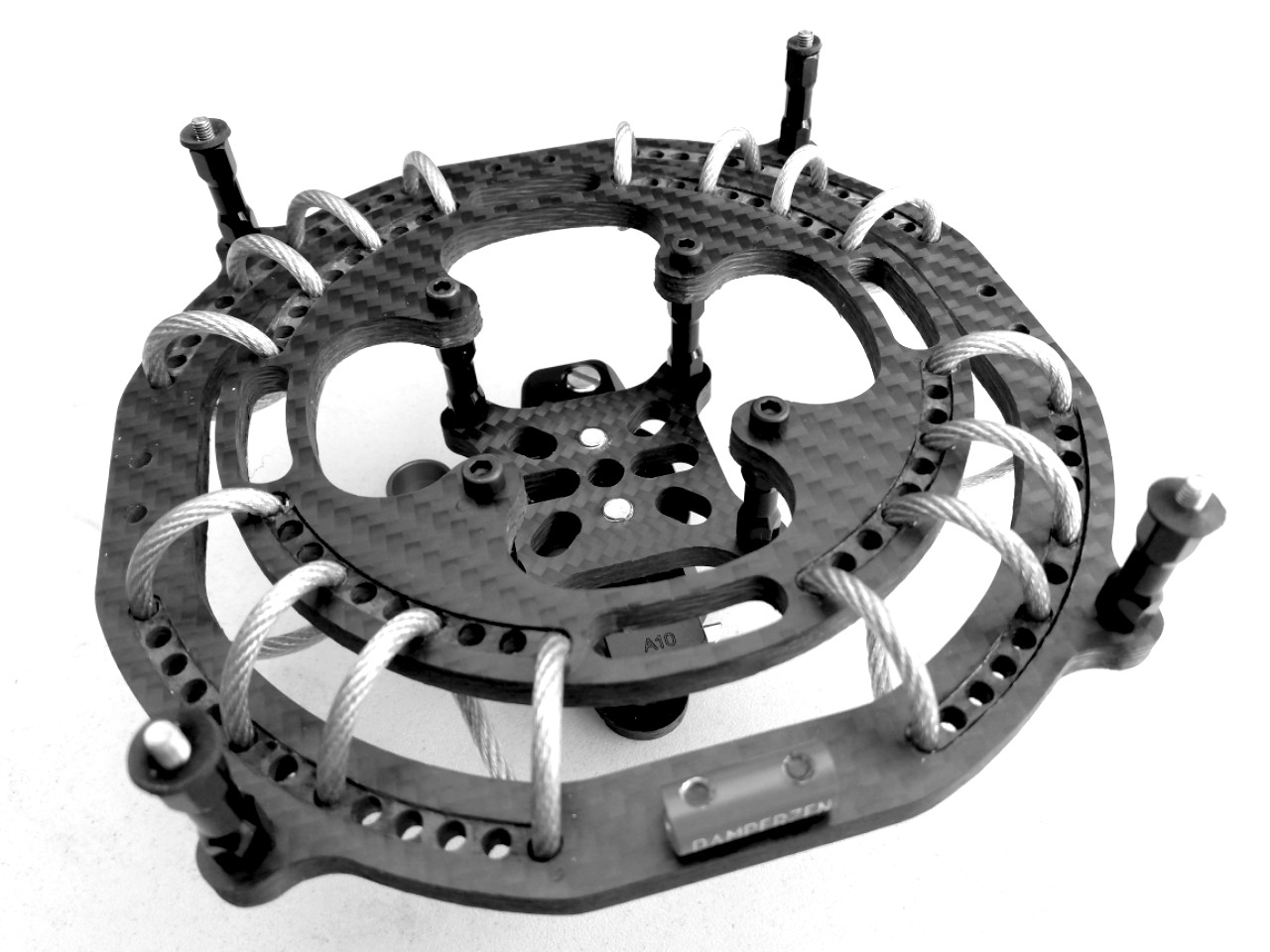

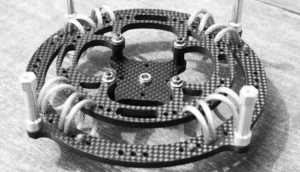

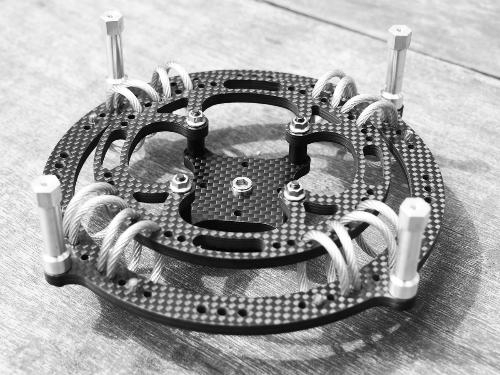

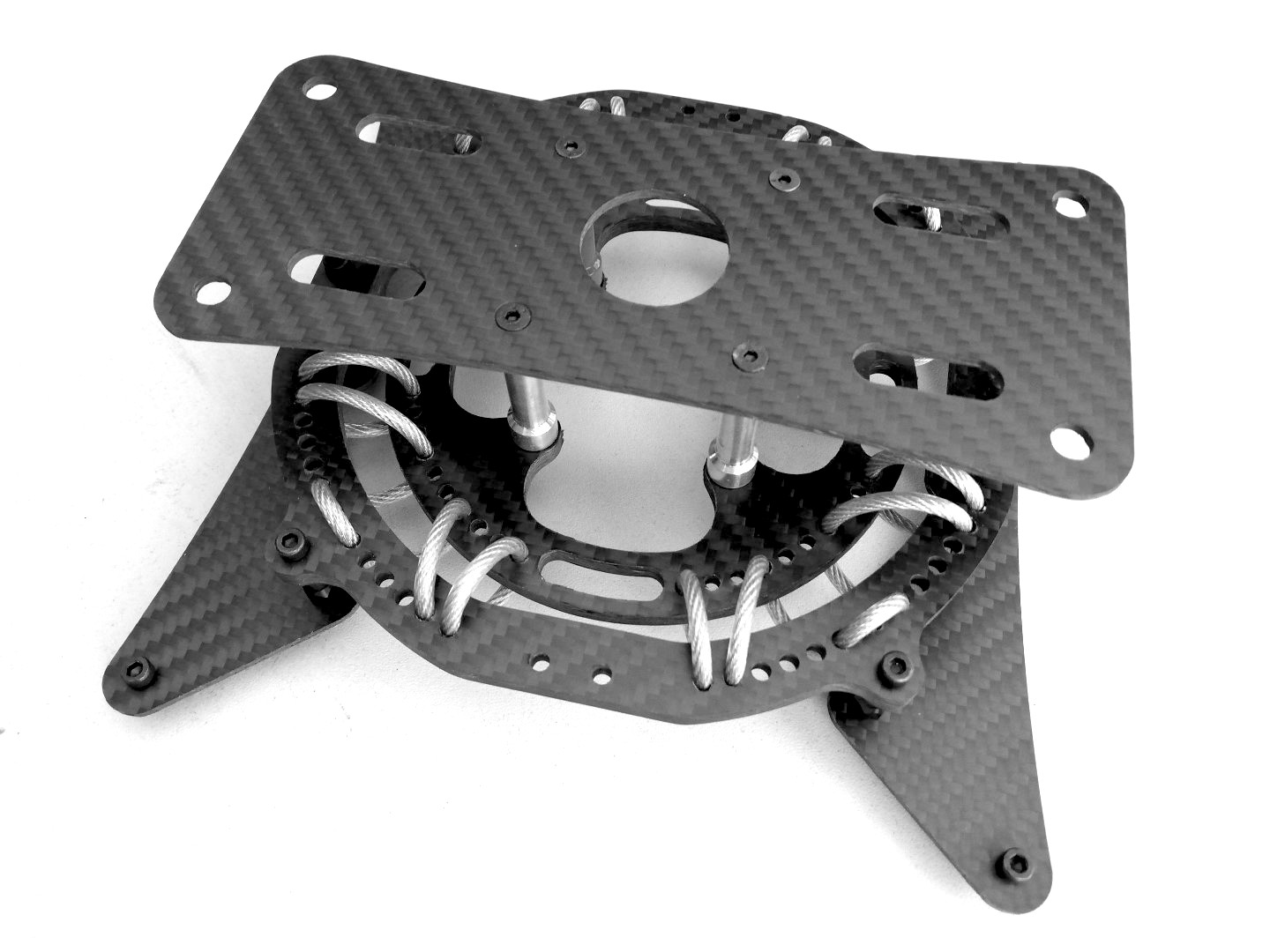

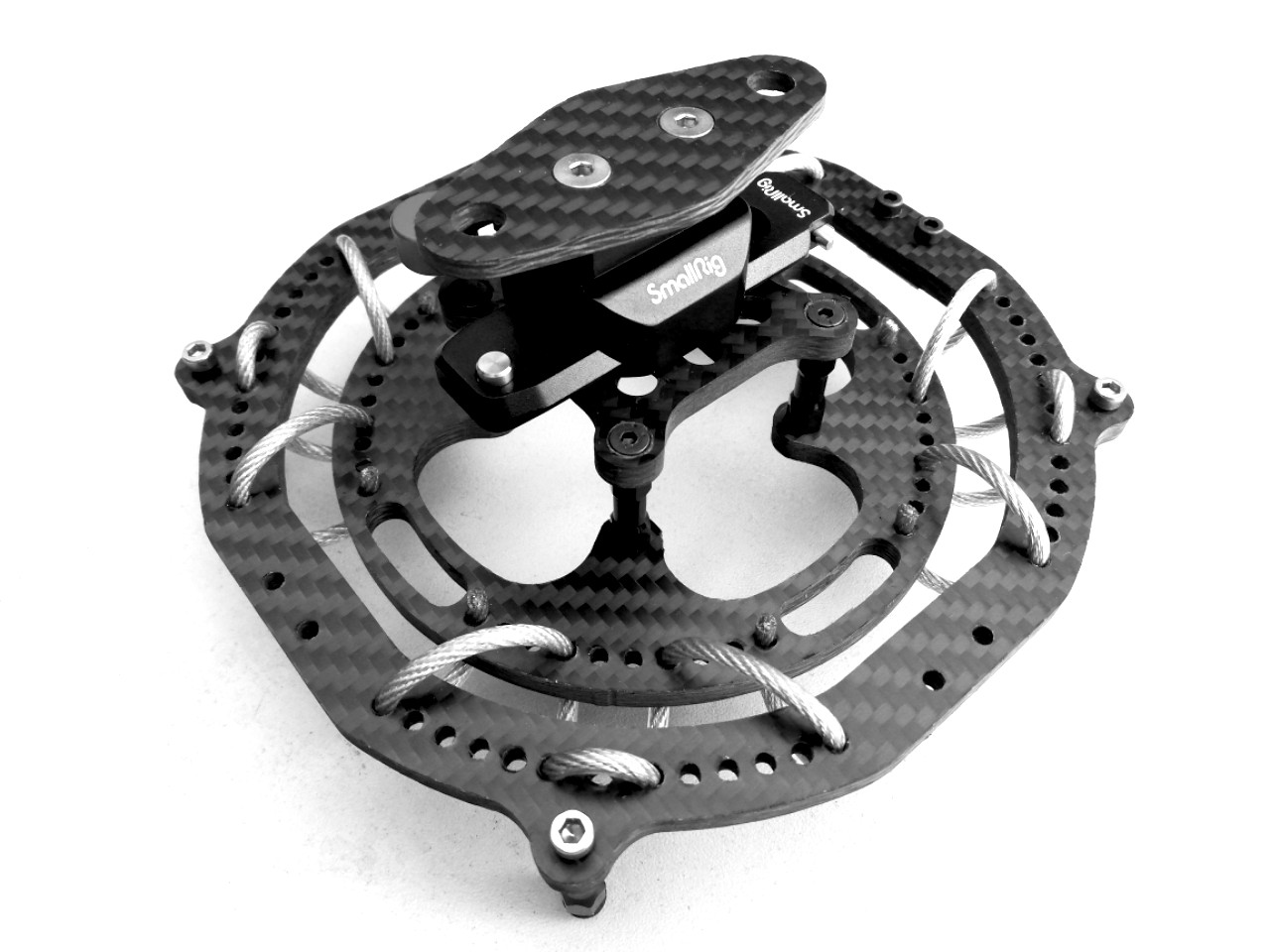

Type A carbon [0.1-5kg lidar, hyperspectral and other sensors and cameras]
 |
    |
|
M300 upgrade | https://www.youtube.com/watch?v=Z11AbgLp7Xo |
| M300 upgrade | https://www.youtube.com/watch?v=x5wdMiRqlWU | |
| M300 upgrade | https://www.youtube.com/watch?v=TqtmbVg1D3k | |

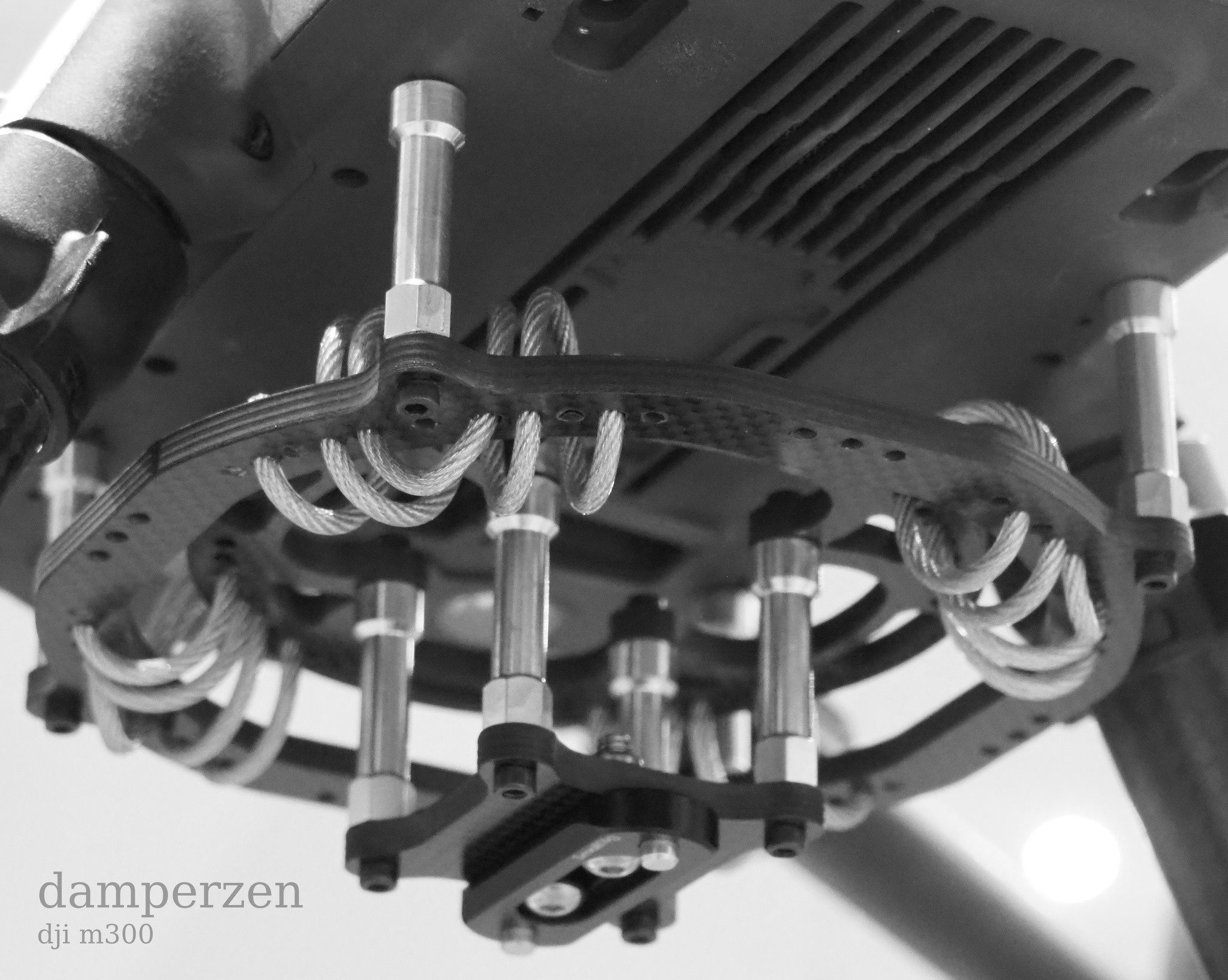

Type A carbon is a very light, highly efficient damper developed for drons (DJI M300). Compared to the widespread rubber vibration reduction systems, this provides a much better performance.
Customization possible, please contact us !
- 0.2-5kg
- perfect for drones
- can be set for under or overslung
- works optimally in a wide range of weights
- significantly increases the wind resistance ability of the drone
- reduces the susceptibility to self-oscillation
- not an ad-hoc product, it is designed properly to eliminate the 80-300 Hz vibrations
- made in the EU (Toray Japanese carbon/epoxy prepregs)
- d=150mm, h=~30/50mm
| type A carbon damper normal overslung, standing | EUR250 | ||
| type A carbon damper hanging underslung, inverted, drone | EUR300 | ||
| DJI M600 carbon isolator upgrade download: Installation Instructions | EUR350 | ||
|

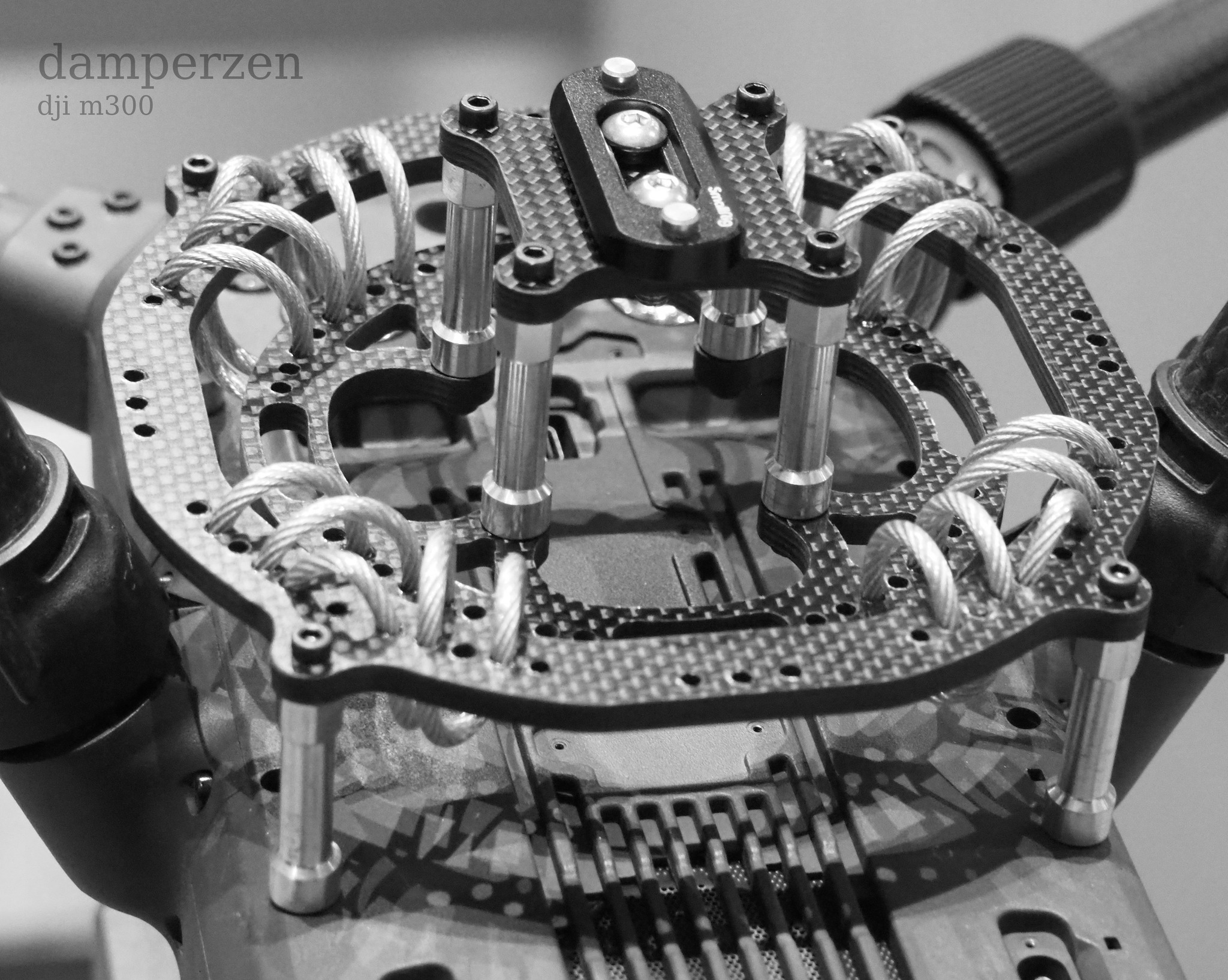

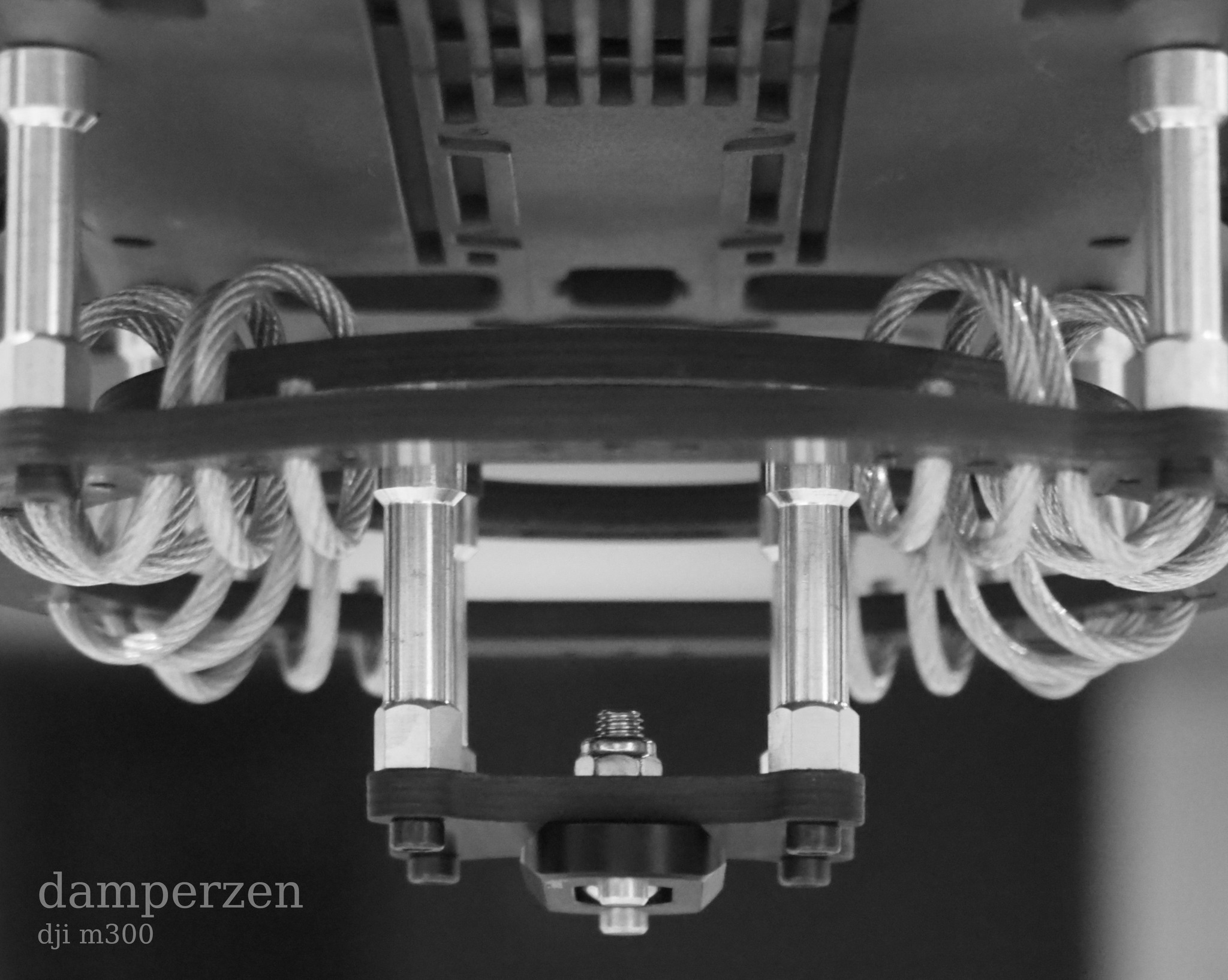

| DJI M300 carbon isolator upgrade | EUR350 | |

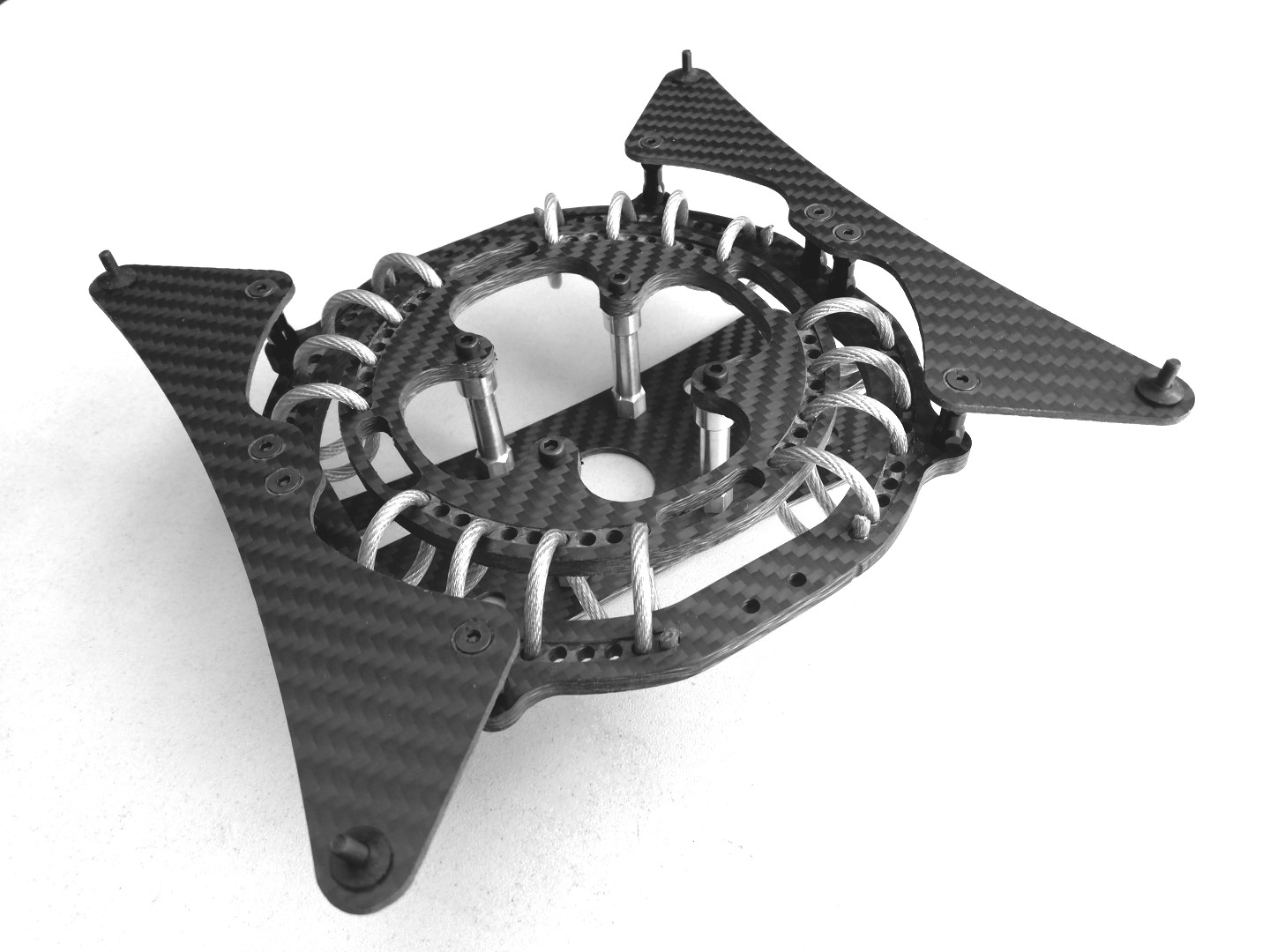

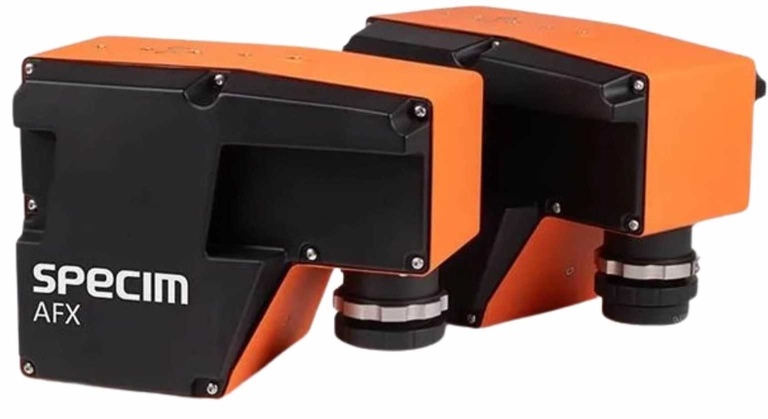

  | Freefly Alta X carbon isolator upgrade Specim double plate AFX10 AFX17 incl: typa A damper, 2x CF mount plates | EUR350 | |
     | DJI M300 carbon isolator upgrade Specim AFX10 AFX17 incl: typa A damper, NATO1865 quick release, CF mount plate | EUR400 | |
| type A damper mount plate universal mount plate | EUR25 |

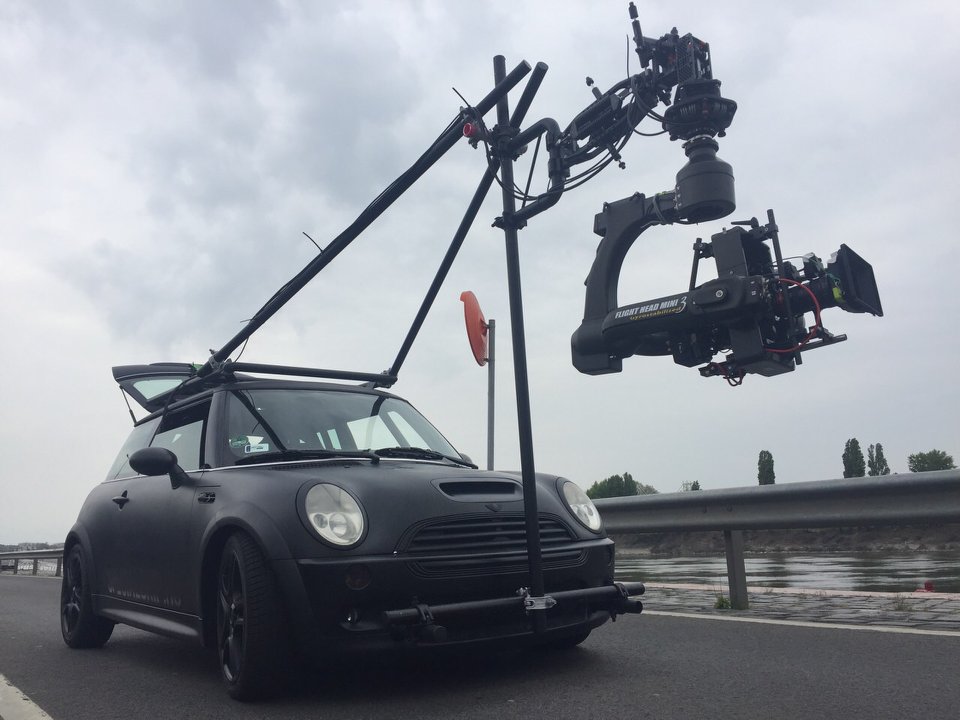

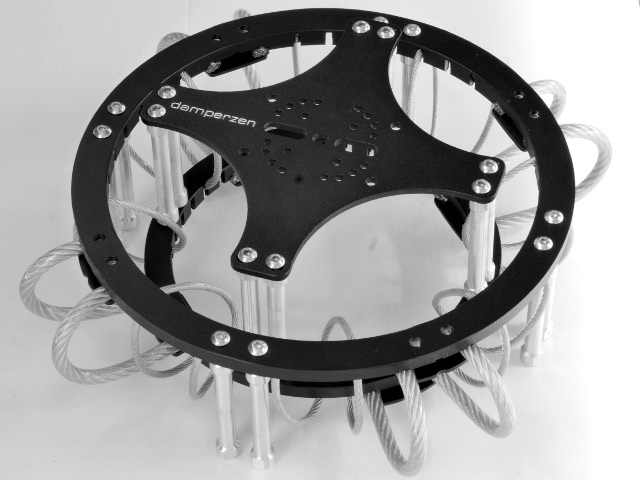

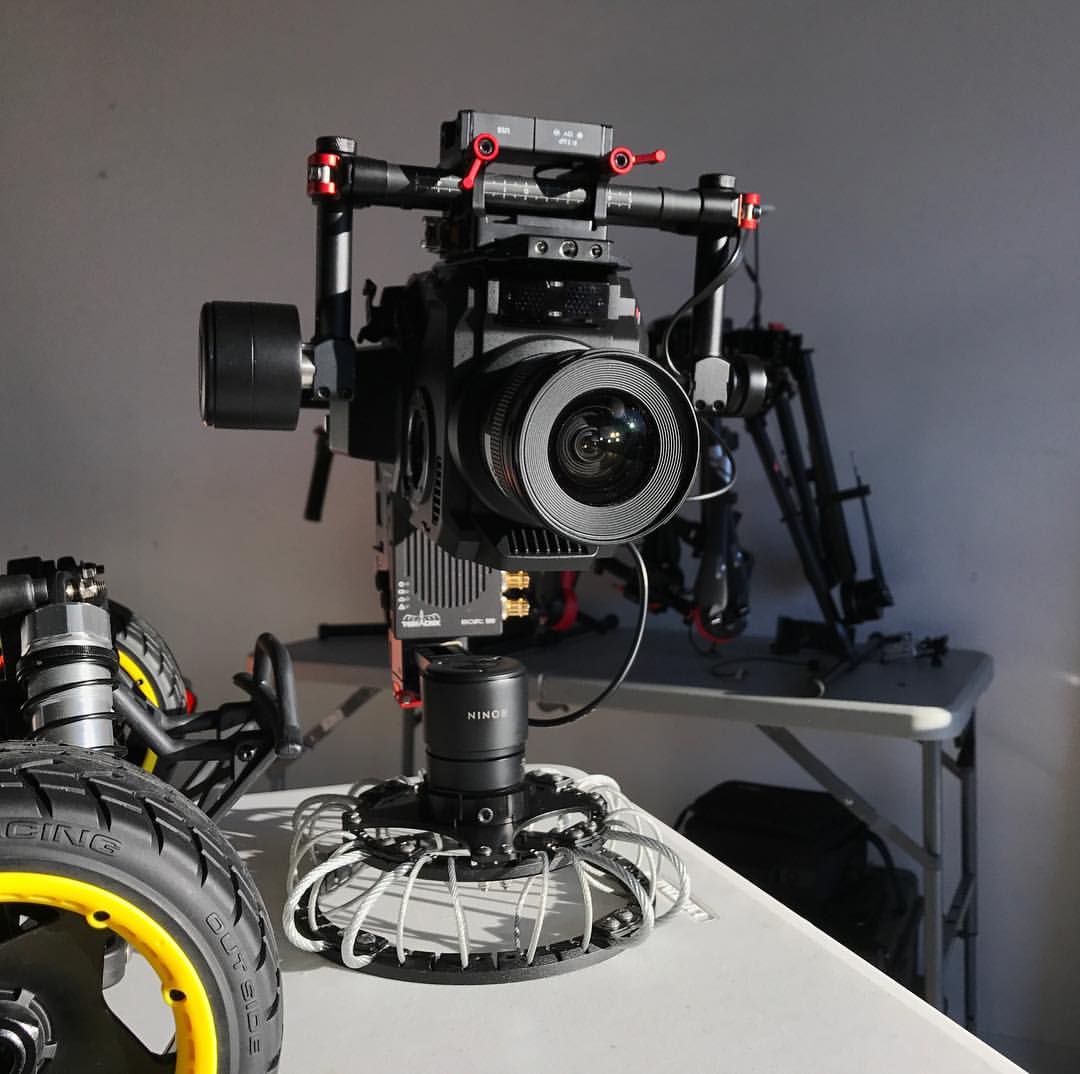

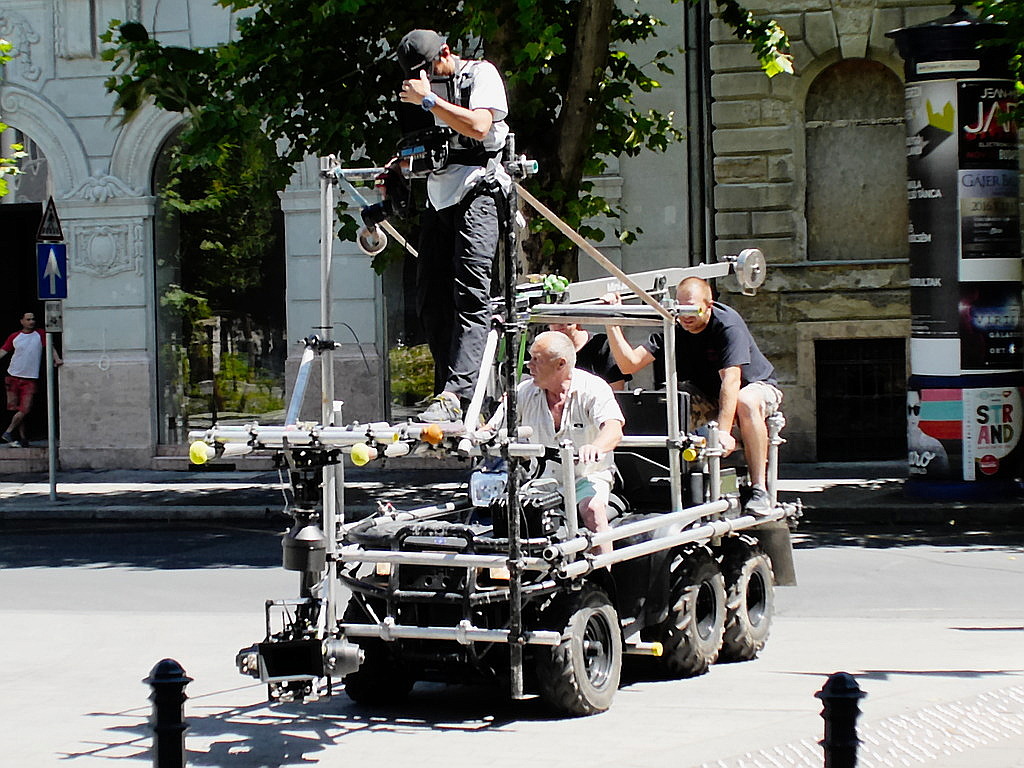

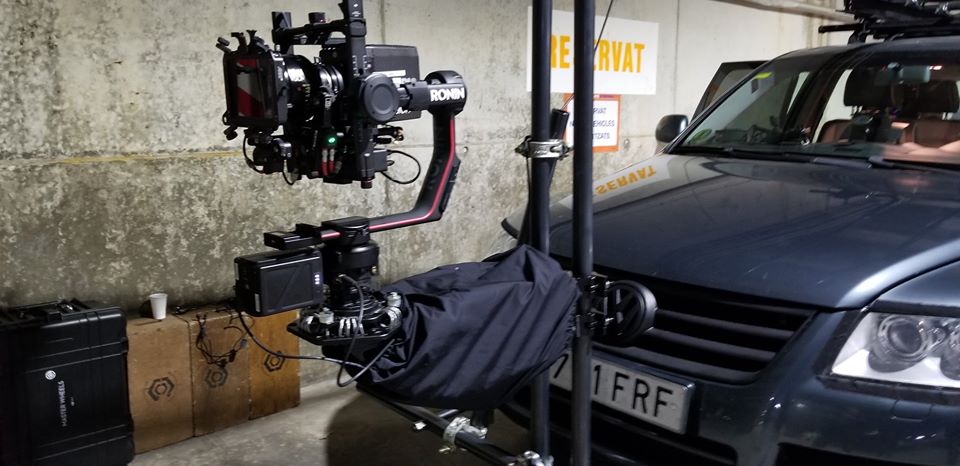

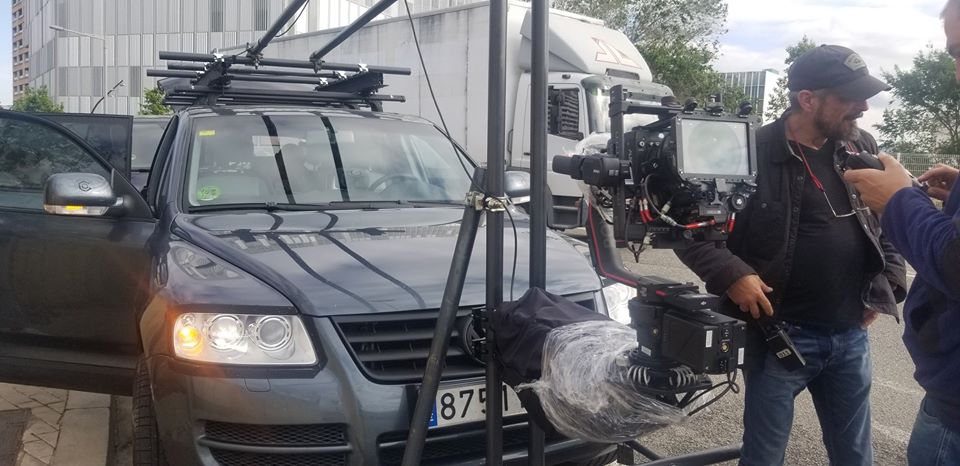

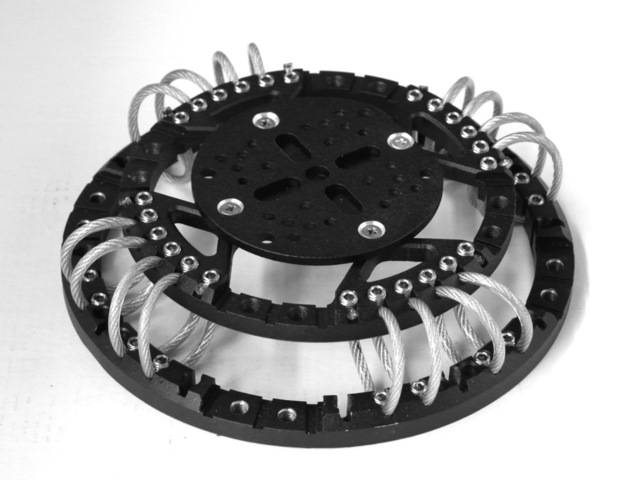

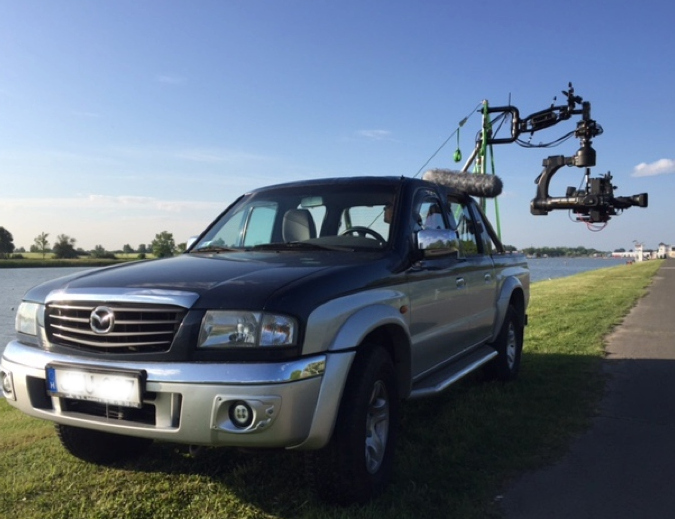

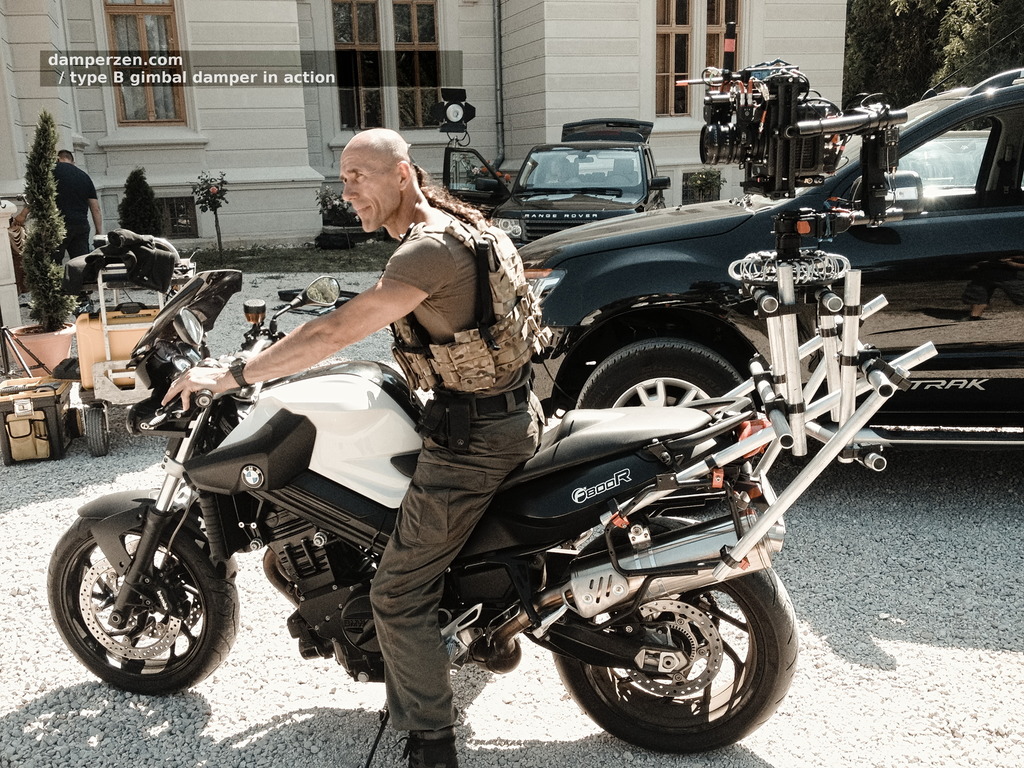

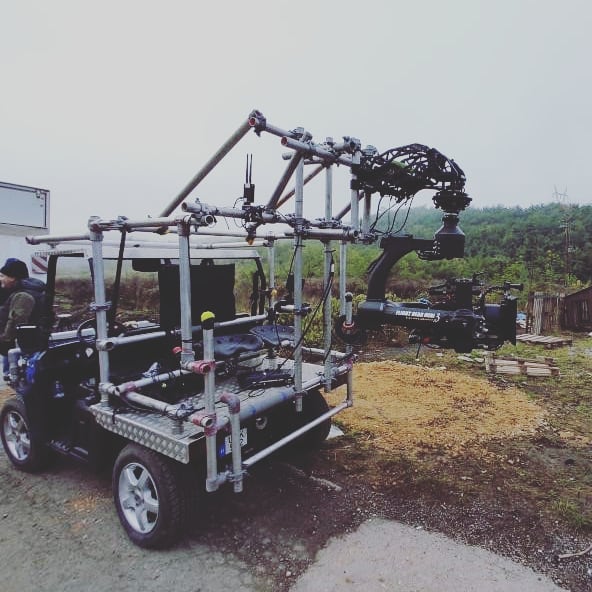

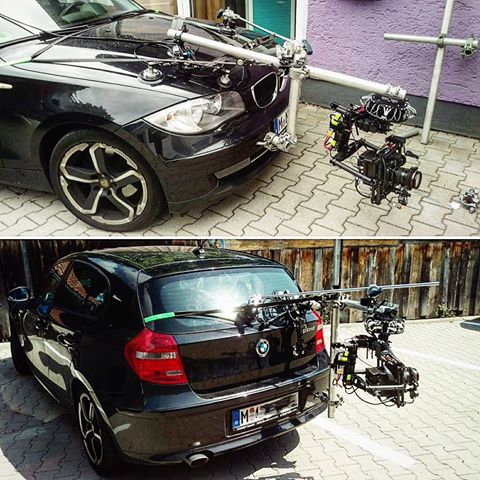

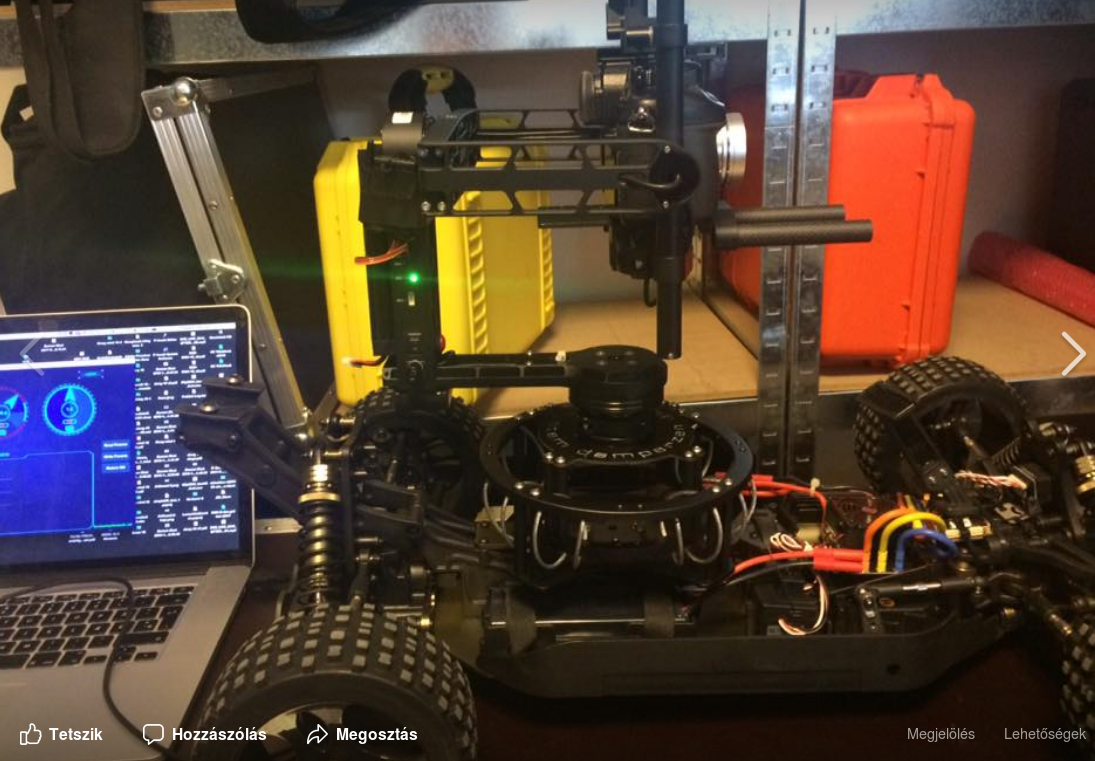

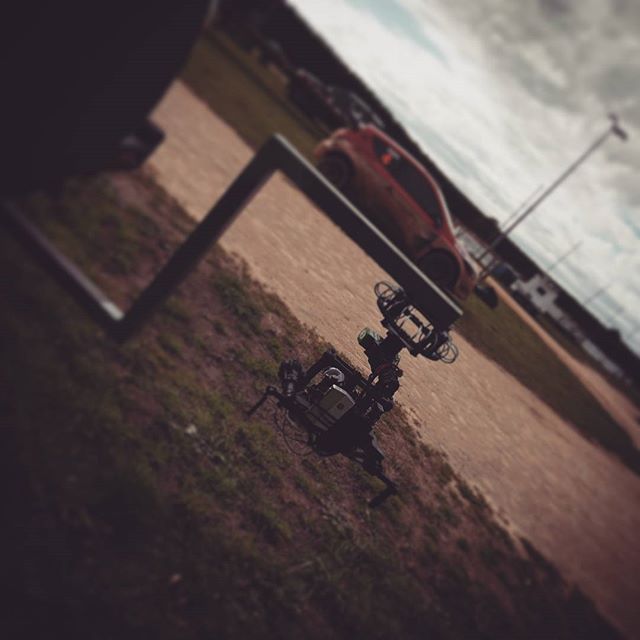

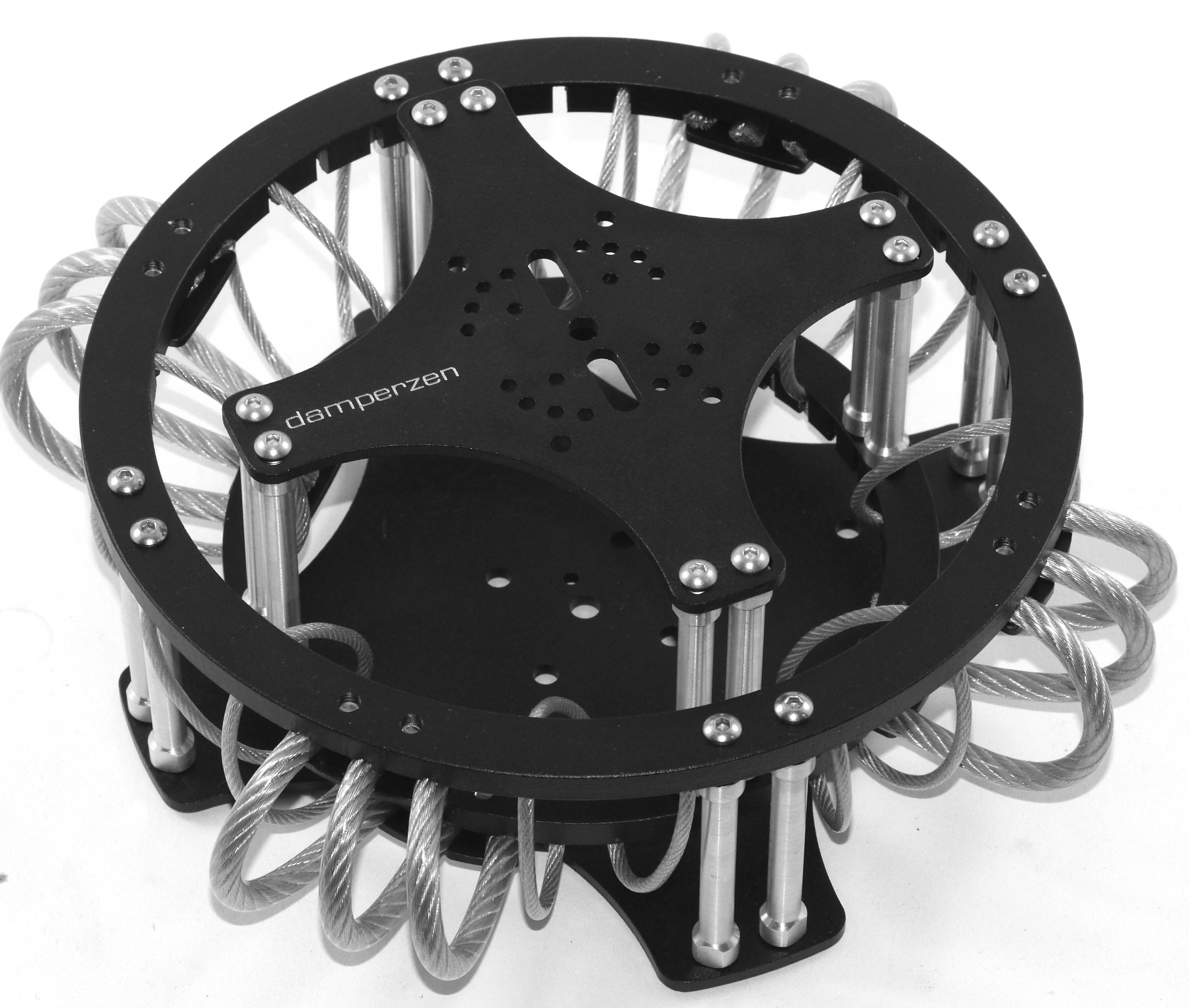

Type B [3-15kg car rc bike] gimbal dampers vibration isolators
 |
           |

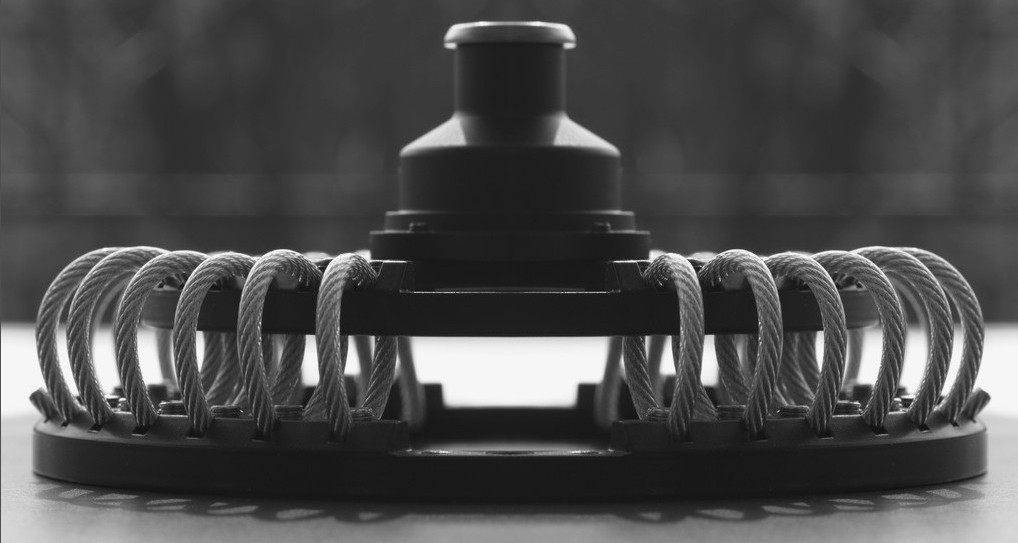

Type B is also a light, highly efficient damper developed for lightweight gimbals (MōVI M5, M10, M15, DJI Ronin, Ronin M, Gremsy, ACR….), it allows especially large displacements. The damping is provided by a basic wire rope, the strength of which can easily be increased by the installation of further wires.
- 3-15kg

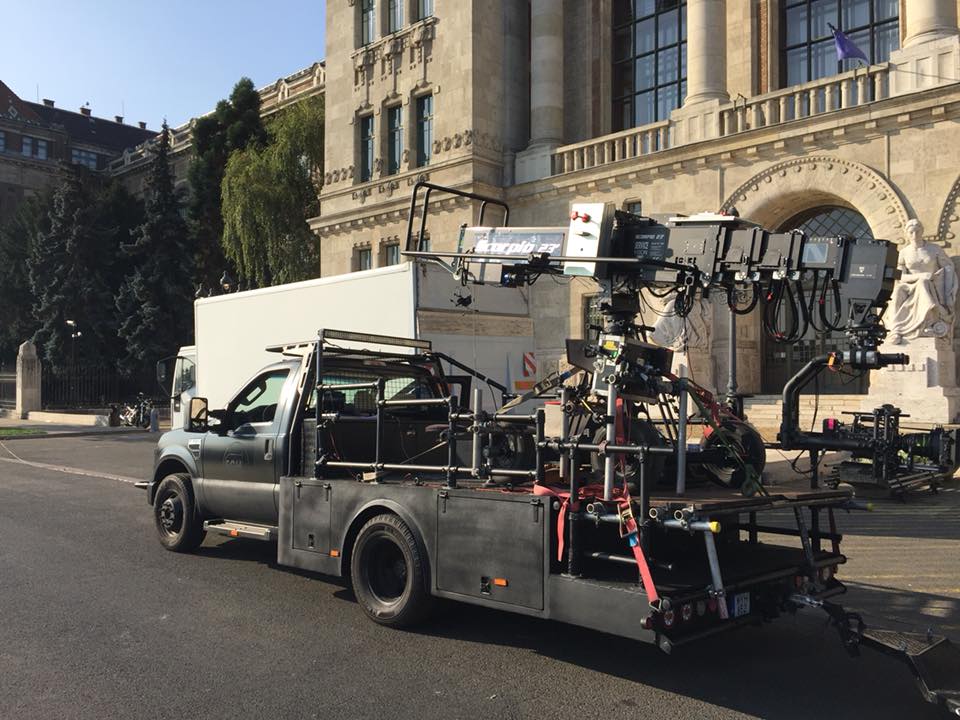

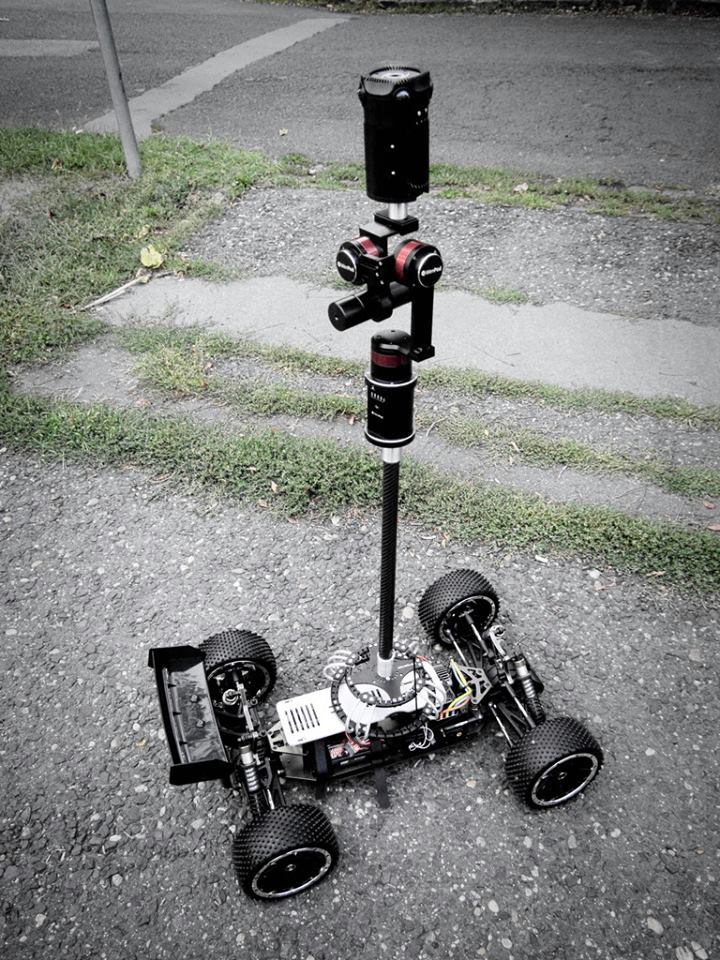

- recommended for car direct mount, rc car, bike ..
- free of pan-oscillation
- can be set for under or overslung
- d=200mm, h=~90mm
 | type B damper normal (overslung, standing) | EUR250 | |
 | type B damper hanging (underslung, inverted) | EUR300 | |
| type B damper mount plate | EUR25 | |
| Movi compatible toad | EUR50 | |

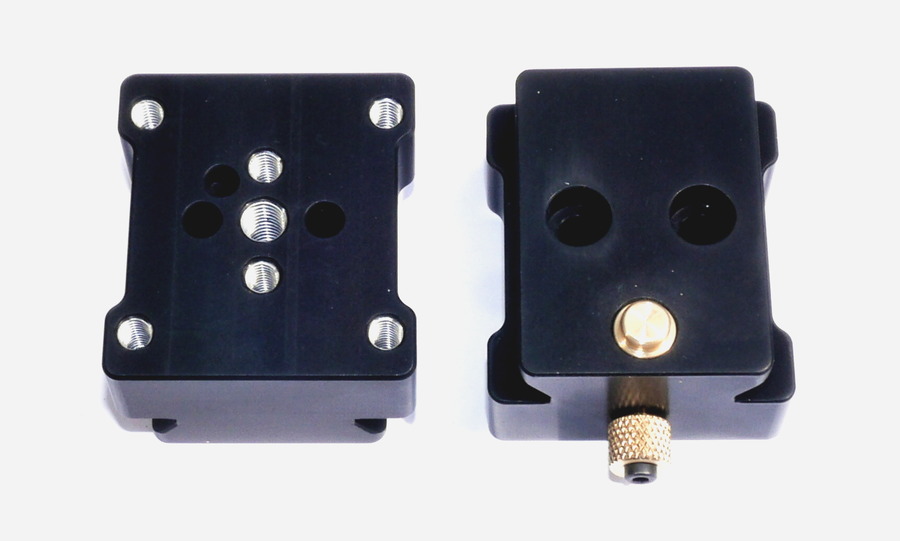

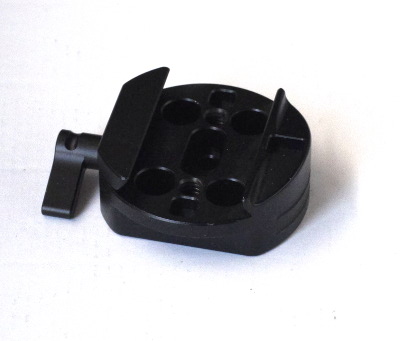

| Ronin type QR | EUR50 | |

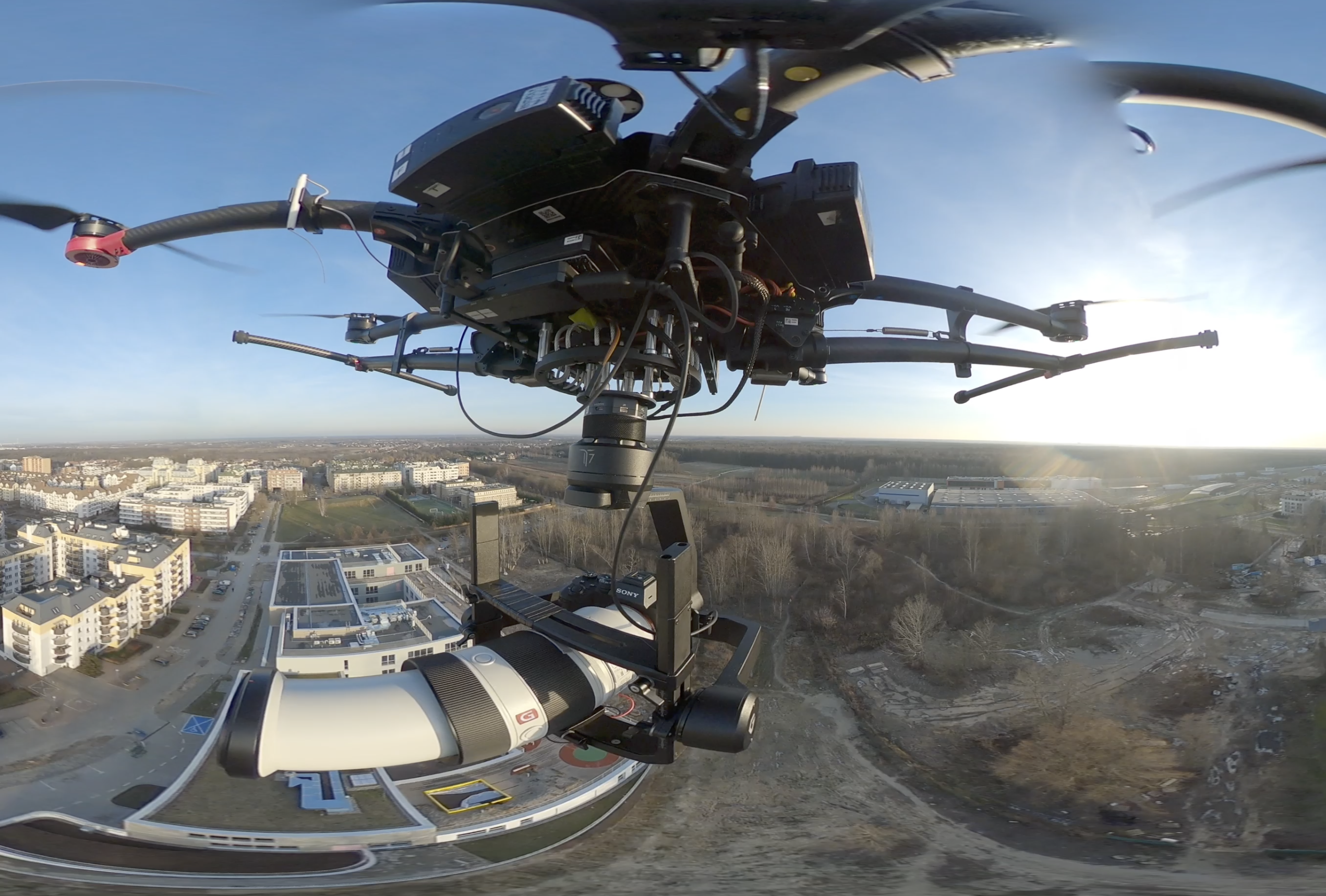

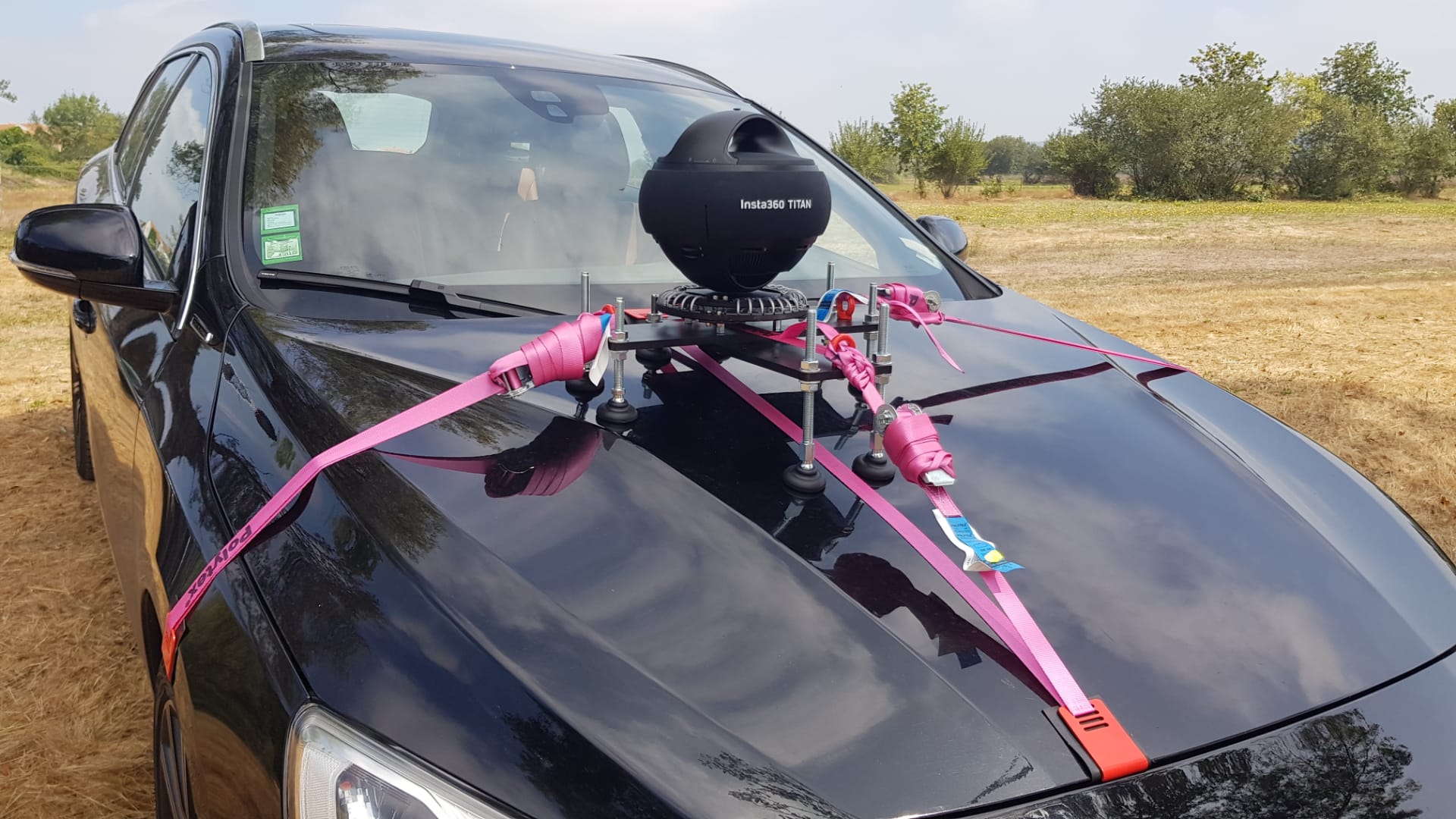

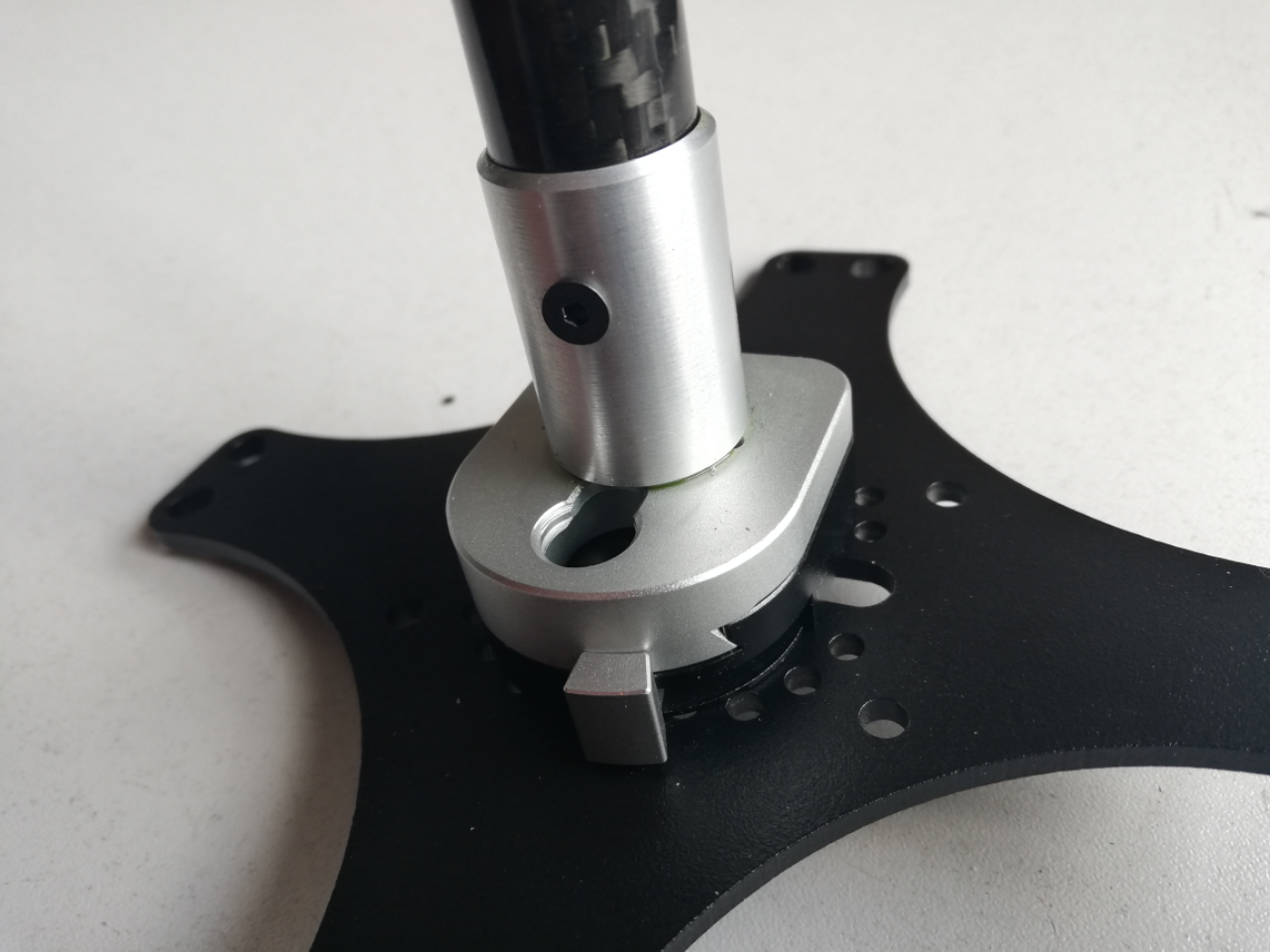

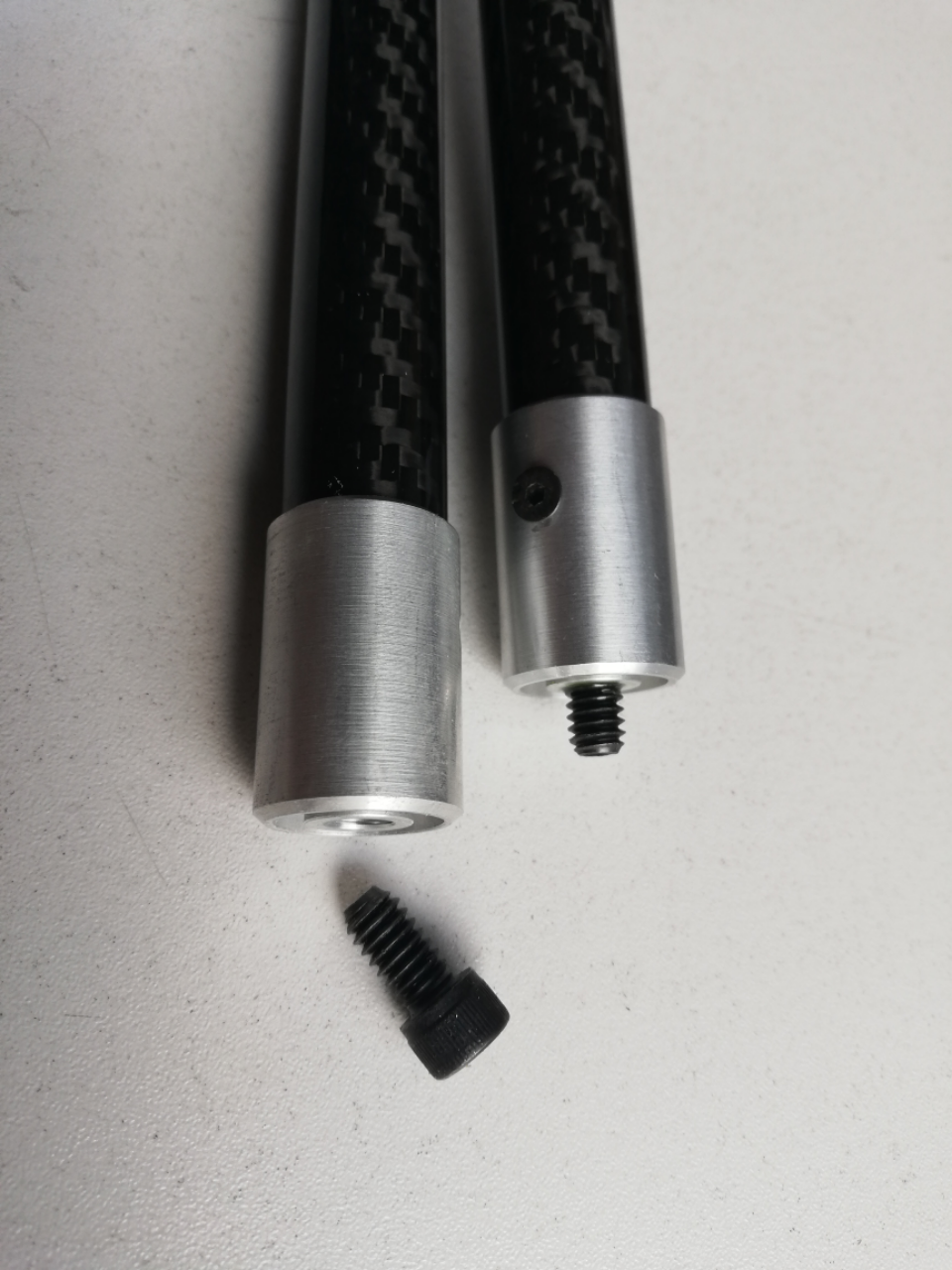

 Insta360 | 0.5m carbon rod, UNC1/4-20 threaded ends | EUR70 | |
 insta360 insta360 | 0.5m carbon rod, SmallRig quick release | EUR110 |

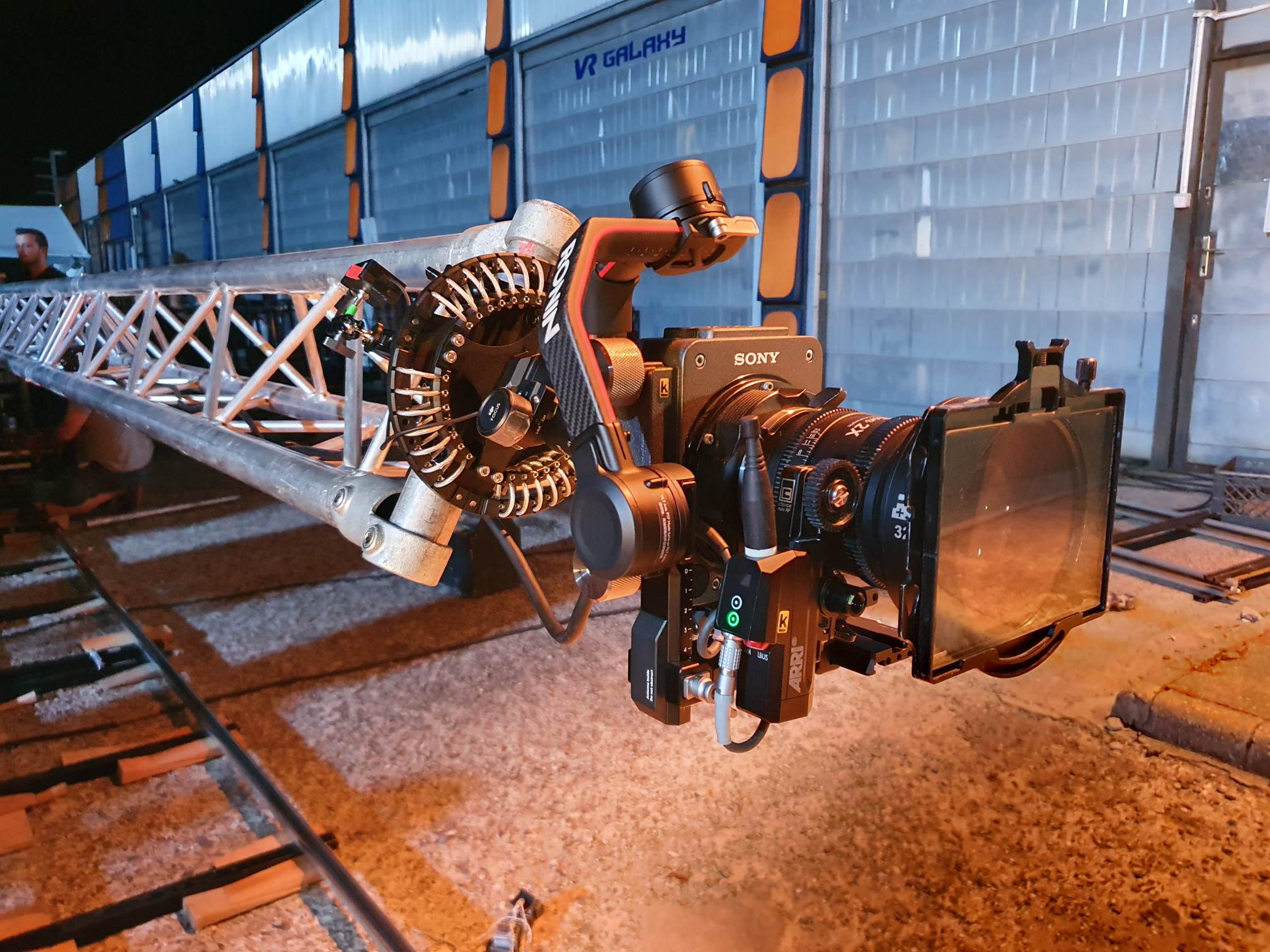

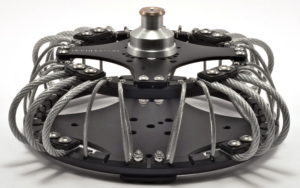

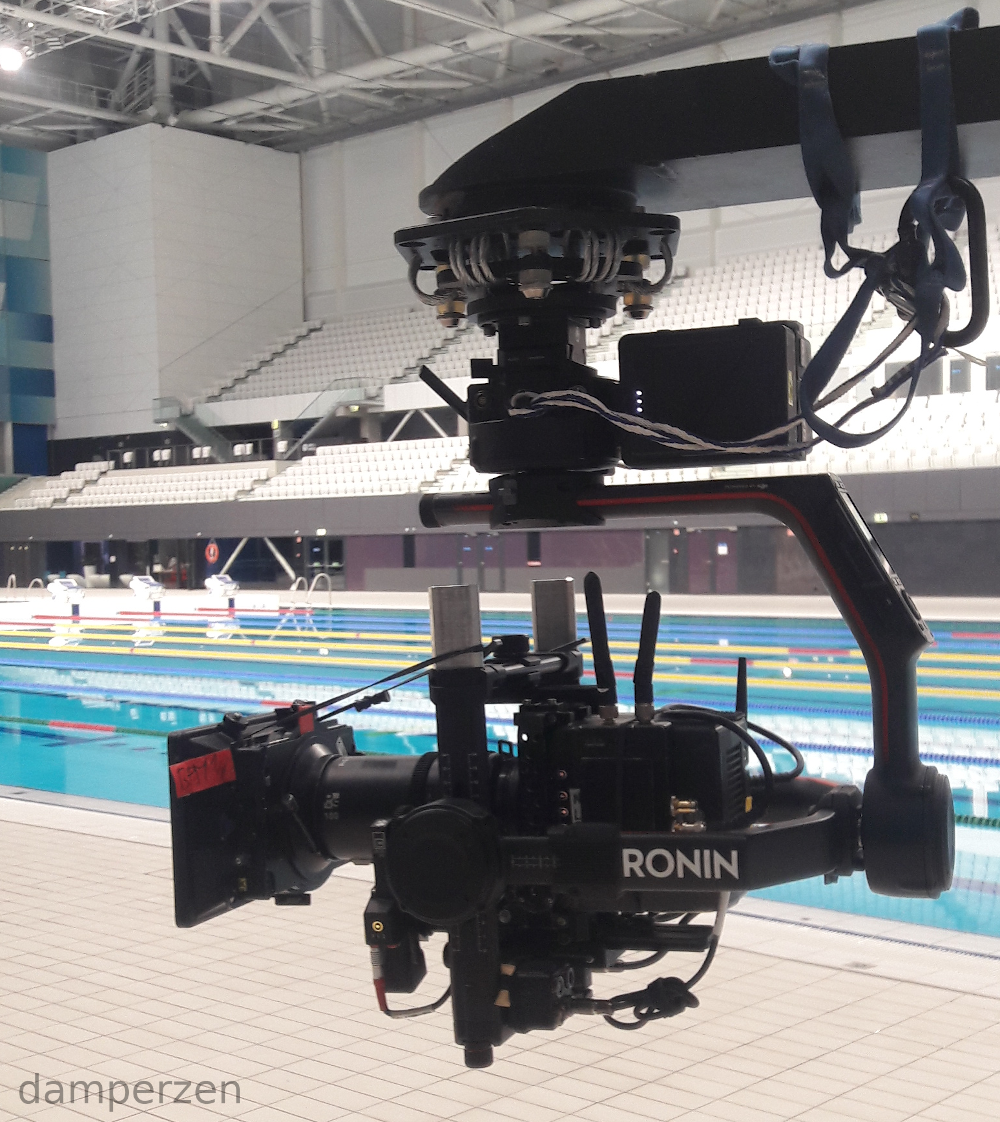

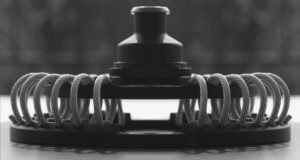

Type C [8-16kg drone cable cam crane dolly] gimbal dampers vibration isolators
 |

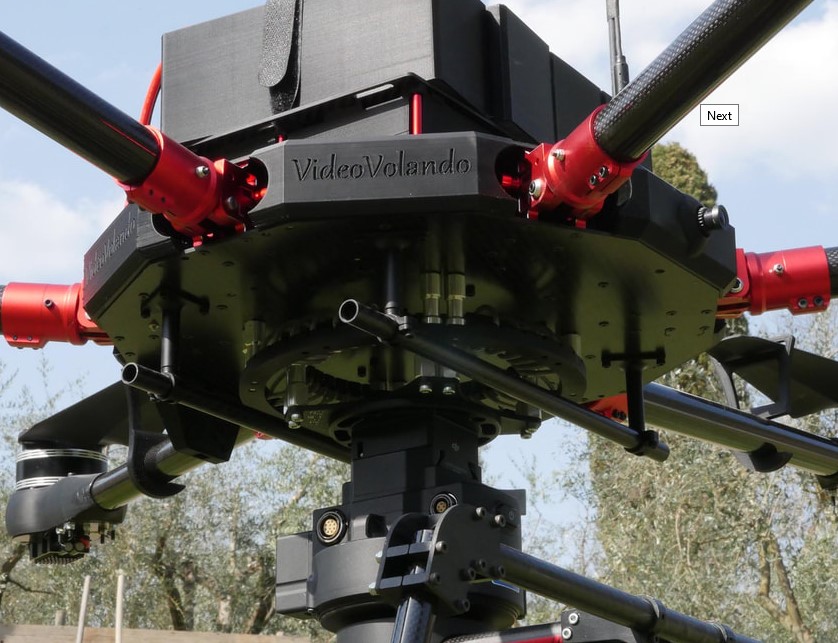

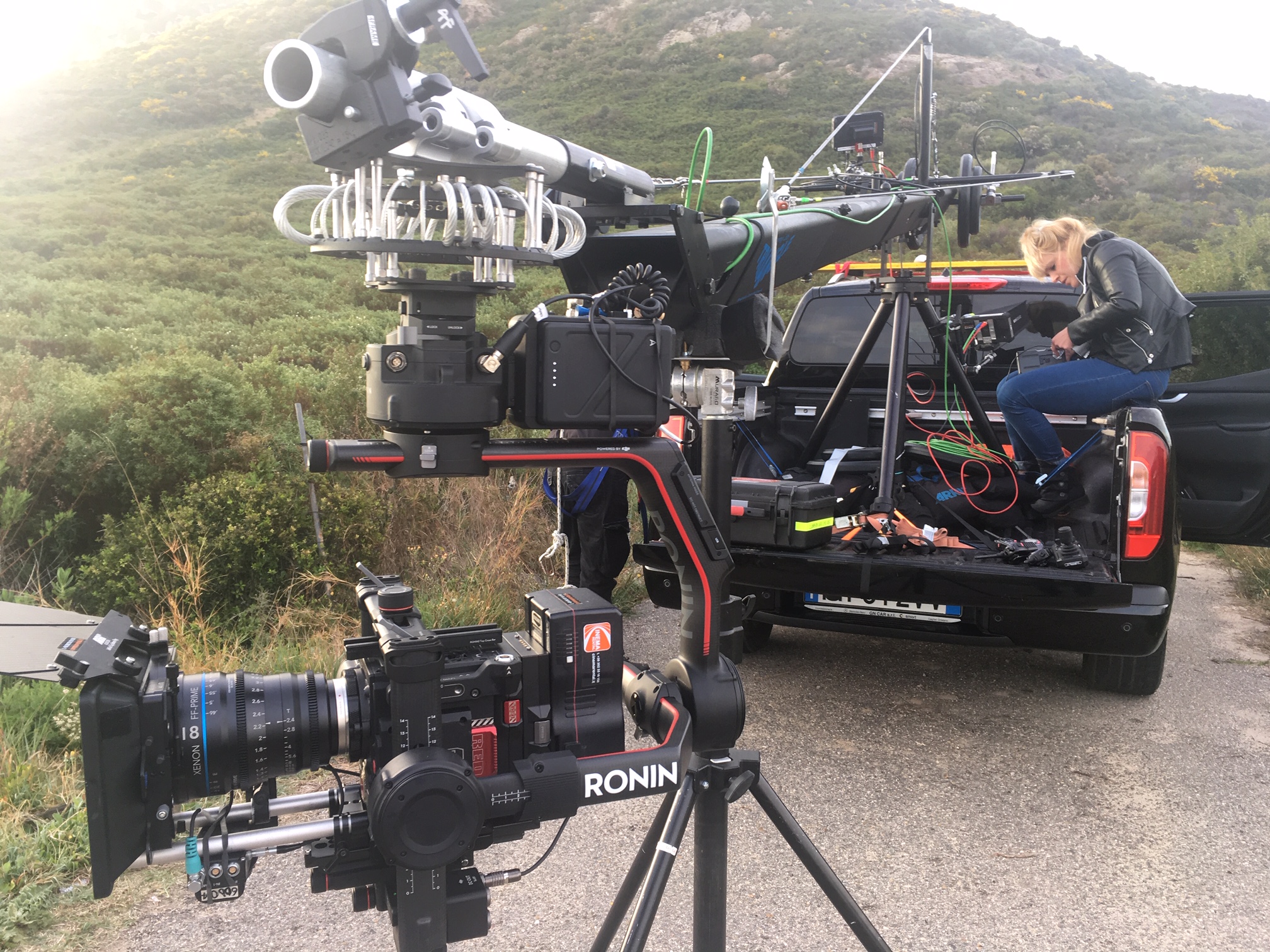

           Chopper Shoot   customer: videovolando.com Damperzen type C vibration isolator damper |
 |
Drone / Ronin 2 / type C |
https://vimeo.com/410986542 |

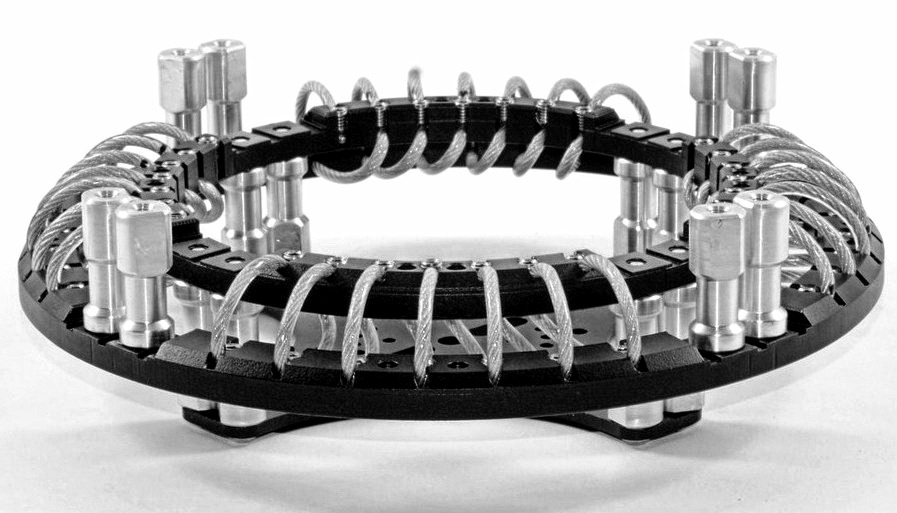

Type C is a state of the art wire rope construction, attractive design with excellent damping characteristic. It is a light, highly efficient damper developed for drons (Ronin 2 MōVI Pro Insta360 Titan). Compared to the widespread rubber vibration reduction systems, this provides a much better performance on helicams.
- 8-16kg
- perfect for drone cable cam crane dolly
- can be set for under or overslung
- optimally in a wide range of weights
- significantly increases the wind resistance ability of the system
- reduces the susceptibility to self-oscillation
- is not an ad-hoc product, designed properly to eliminate the 50-300 Hz vibrations
- d=200mm, h=~40/60mm
* Two types of gimbal mount plate options possible: 1:[Ronin 2] 2:[other: Ronin, Movi, Gemsy..]
| type C damper normal (overslung, standing) | EUR300 | ||
 | type C damper hanging (underslung, inverted, drone) | EUR350 | |
| type C damper mount plate | EUR25 | |
 | Euro Adapter | EUR175 | |

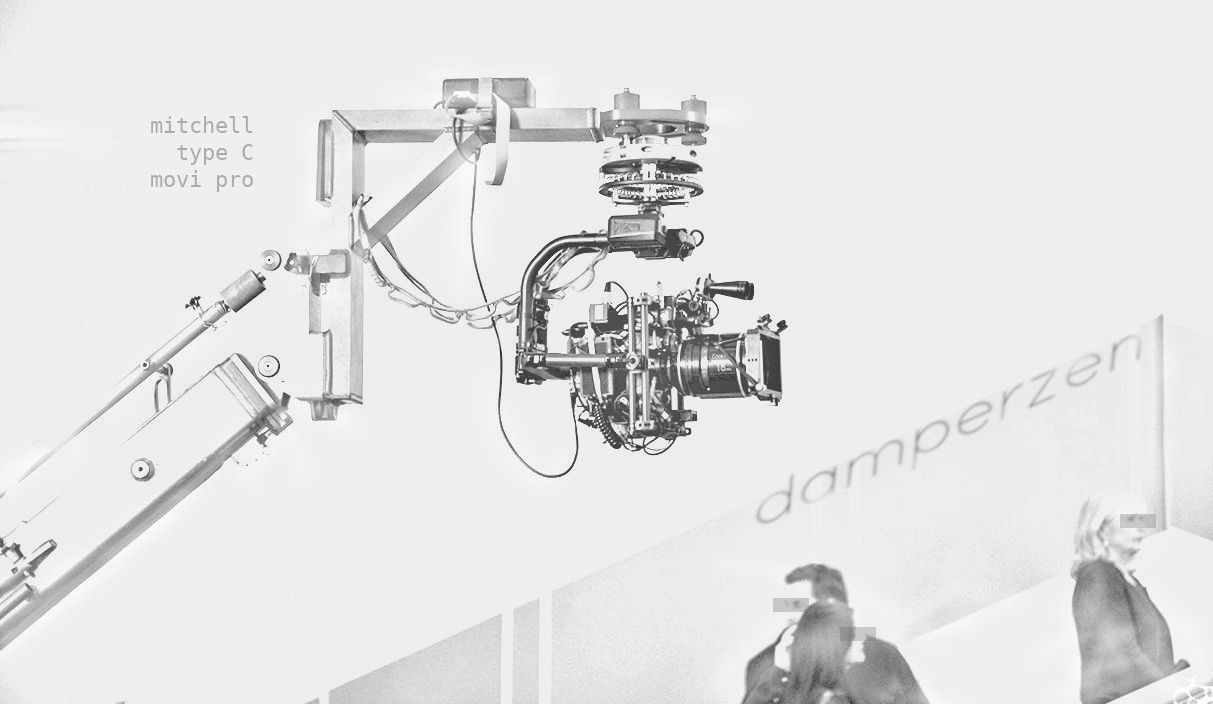

 | Mitchell mount | EUR120 | |
| Movi compatible toad | EUR50|
| |
| Ronin type QR | EUR50 | |
  | Ronin 2 type release | EUR120 |

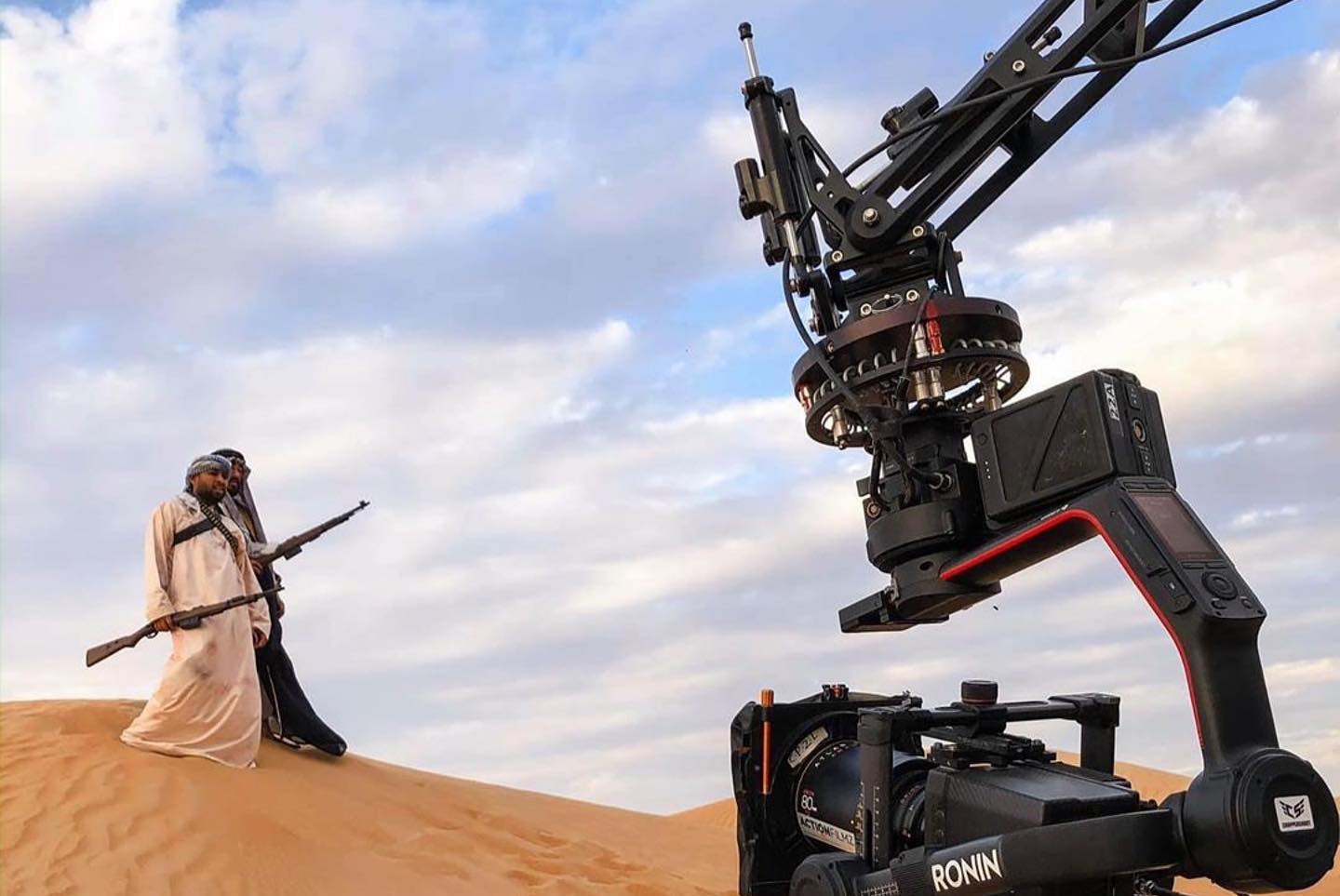

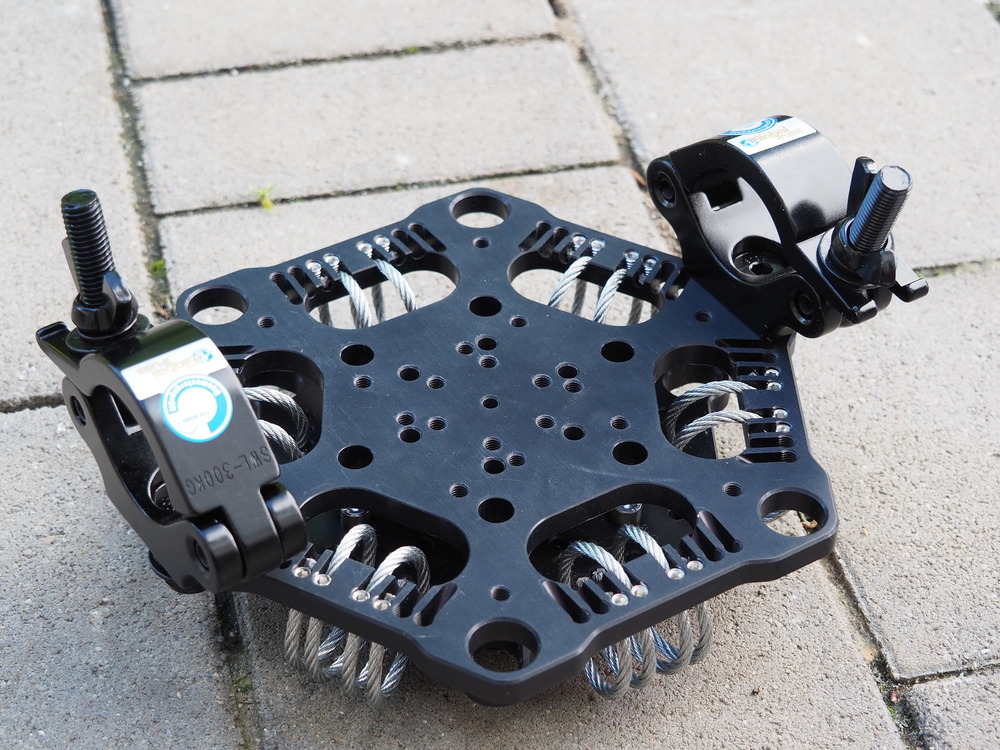

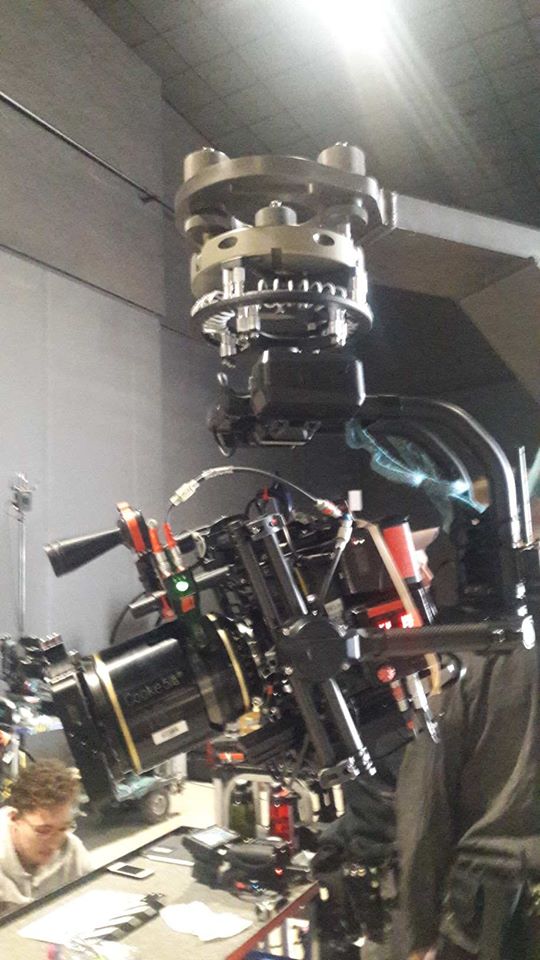

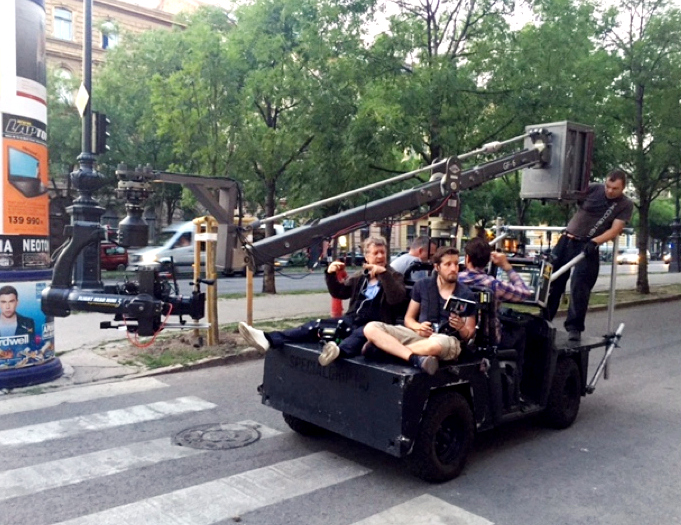

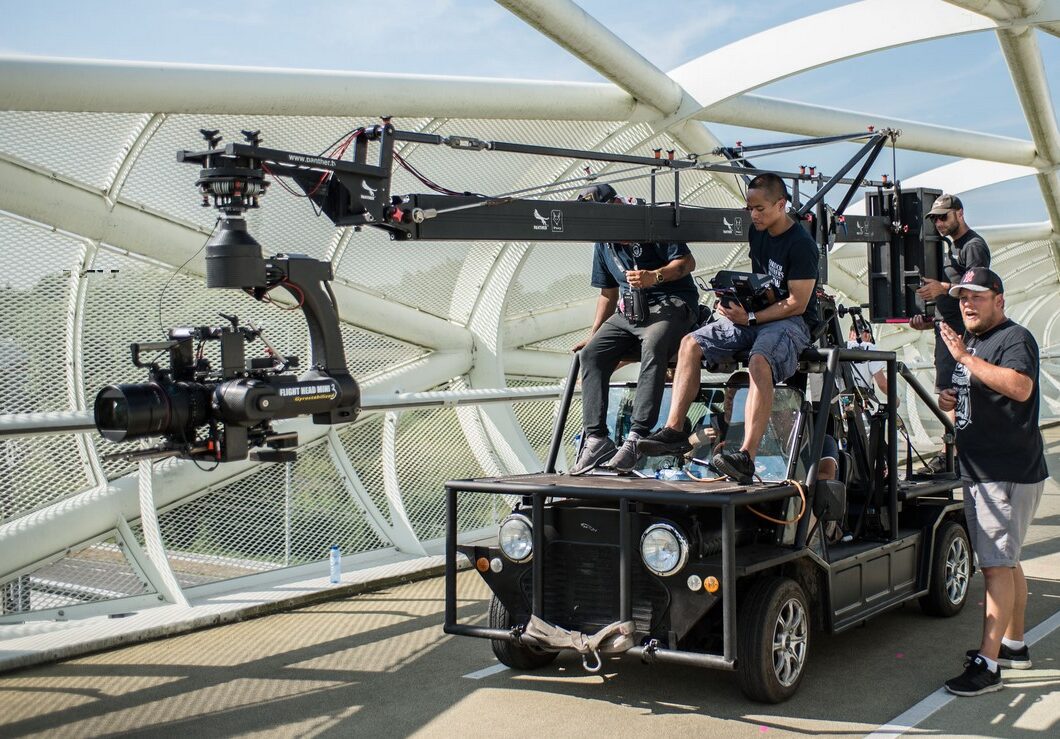

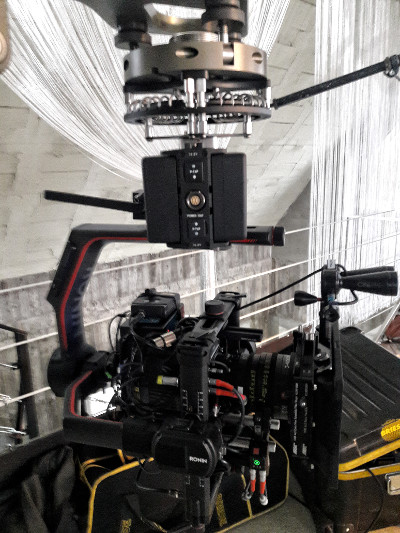

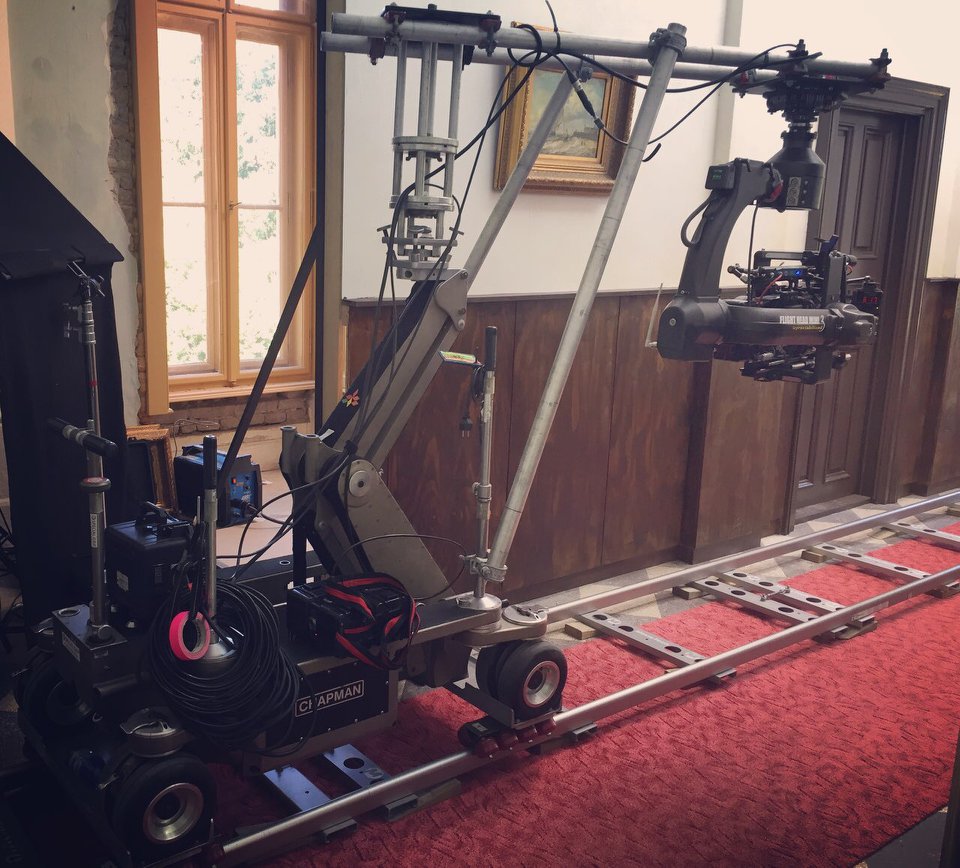

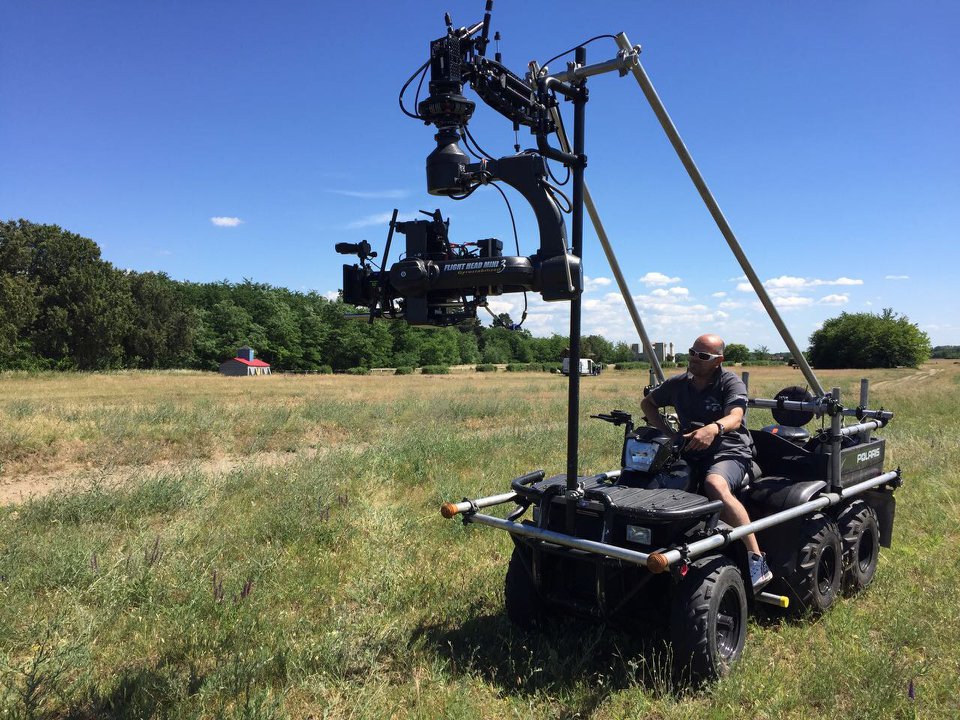

Type D v2 [12-35kg dolly crane spring arm] gimbal dampers vibration isolators
 |

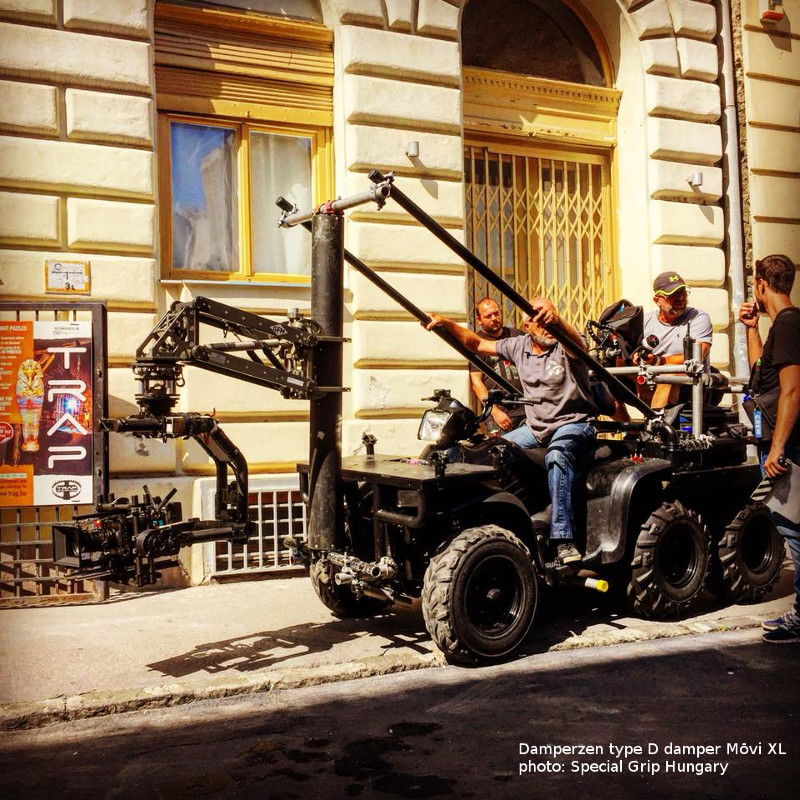

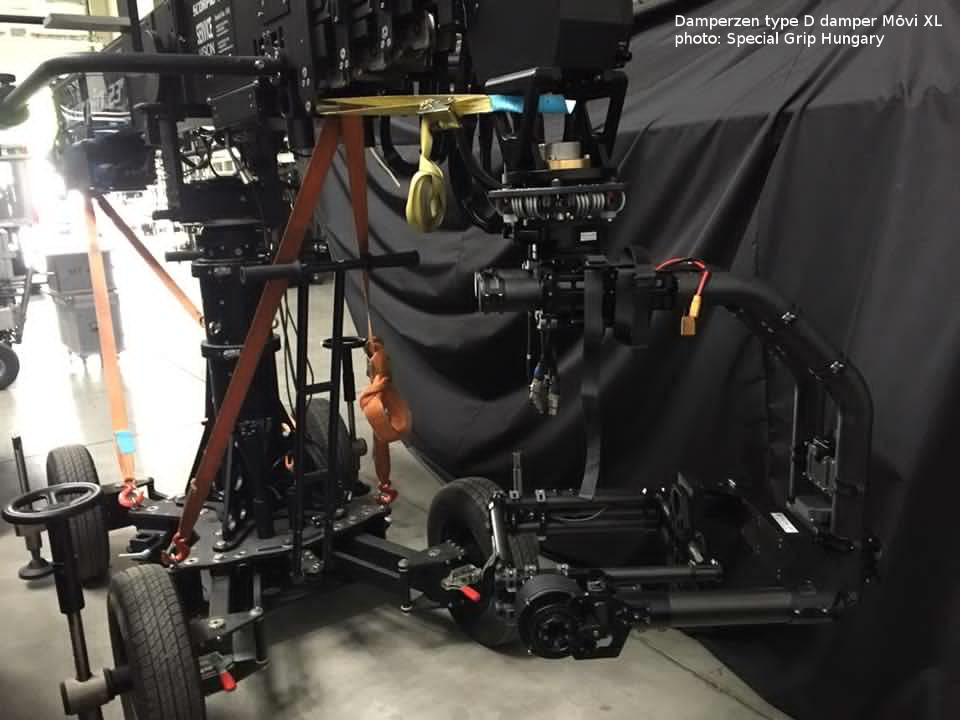

gimbal damper vibration isolator ronin gimbal damper vibration isolator ronin        customer: @specialgriphungary Damperzen type D vibration isolator damper                            customer: cinegrip.nl type D vibration damper isolator  moviepeople.it type D vibration damper isolator |
|

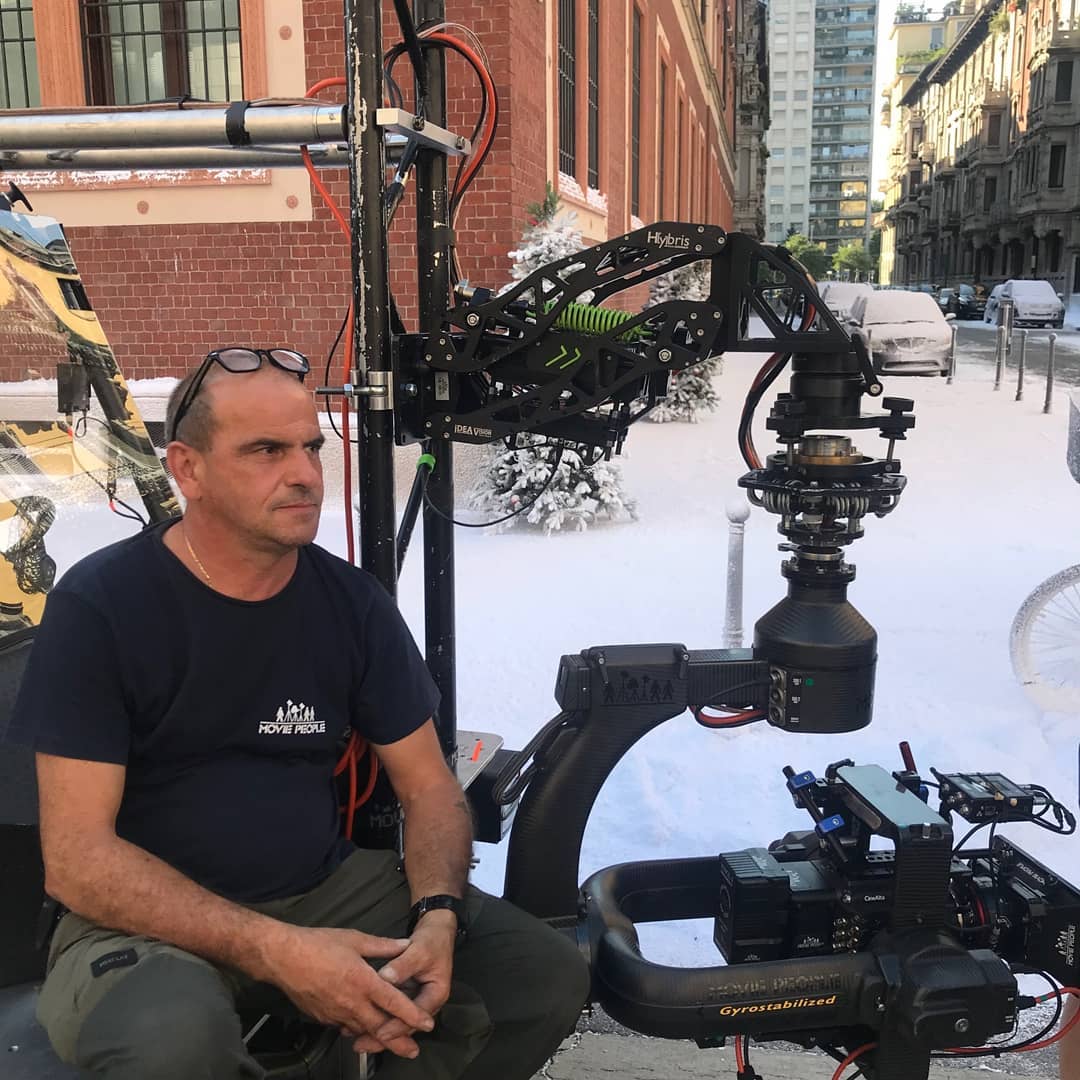

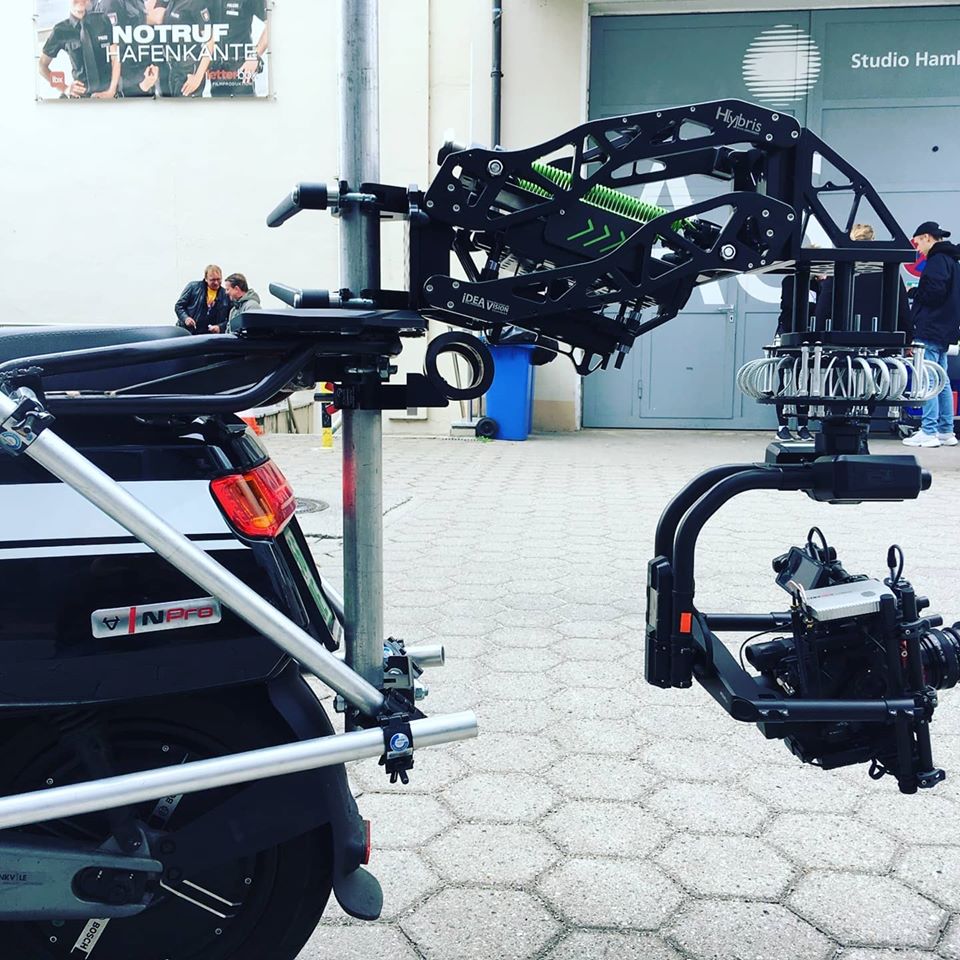

Ideavision Hybris / Ronin 2 / type D |
vimeo.com/354968386 |

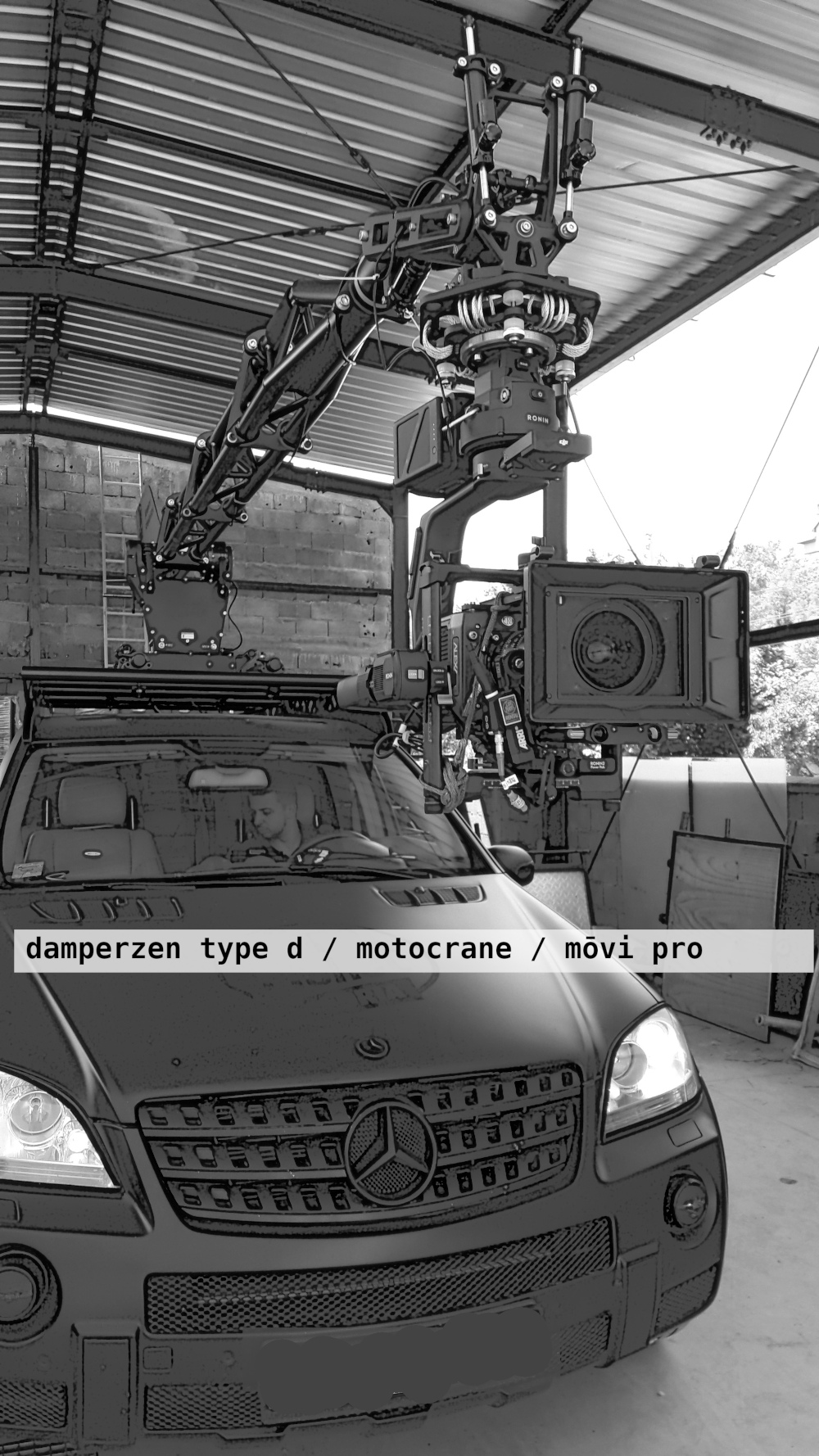

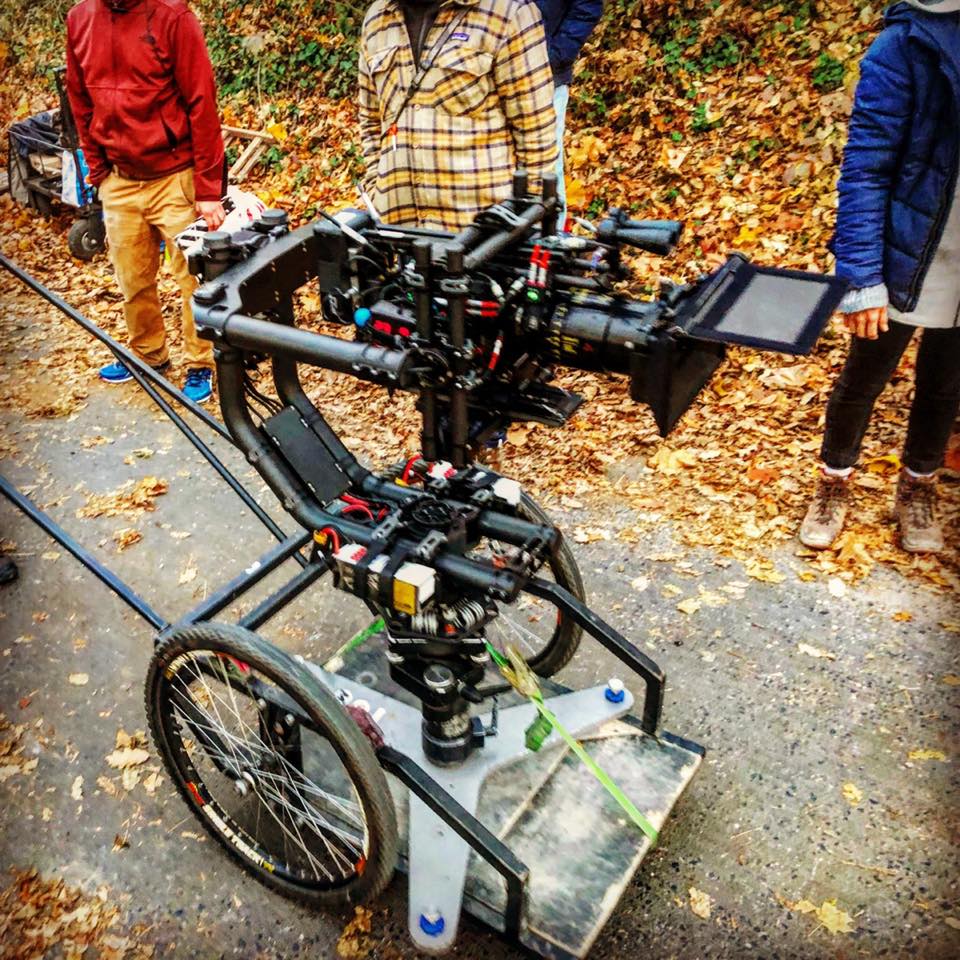

| Motocrane / Ronin 2 / type D | vimeo.com/393897095 | |

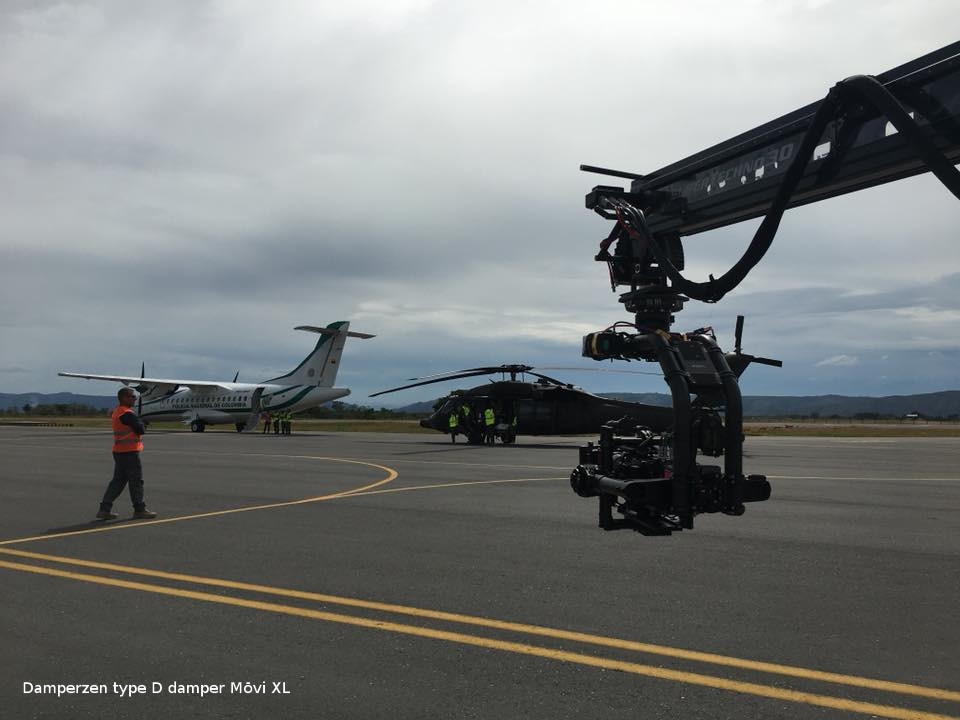

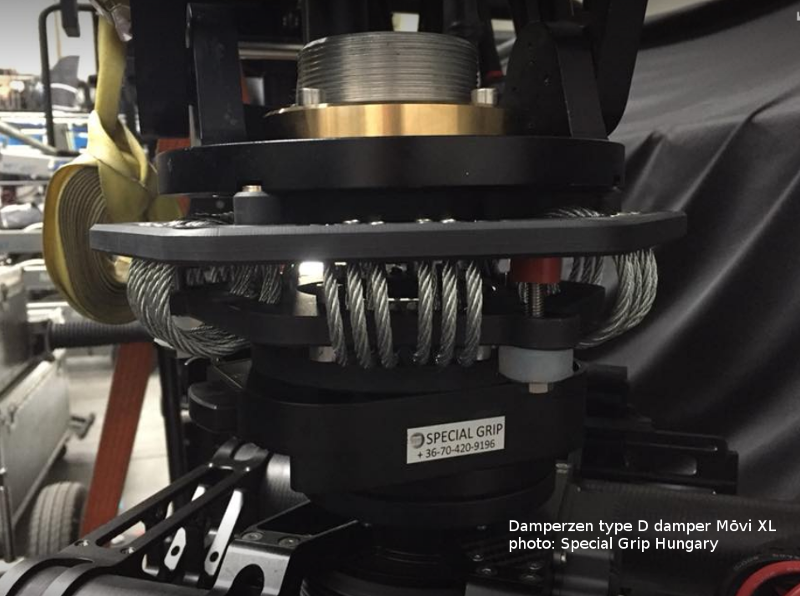

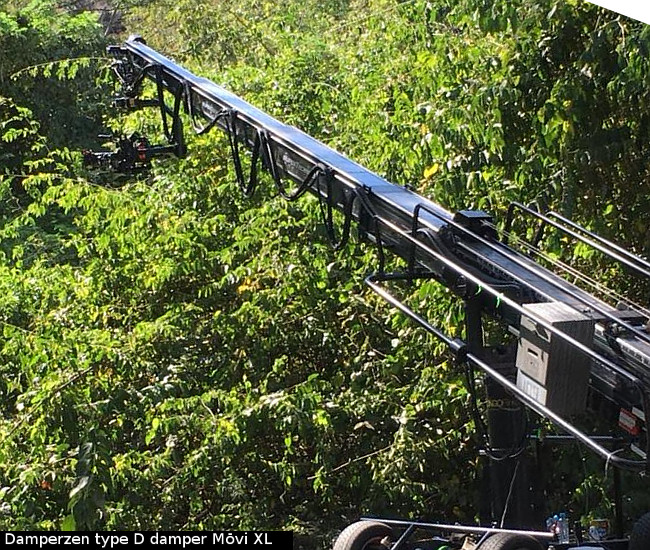

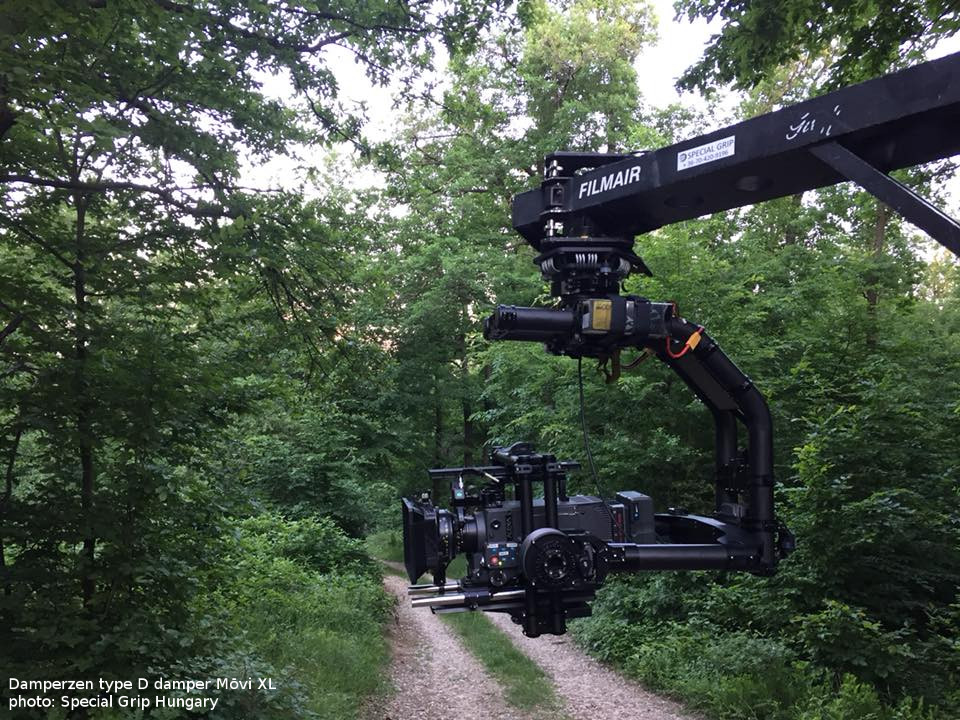

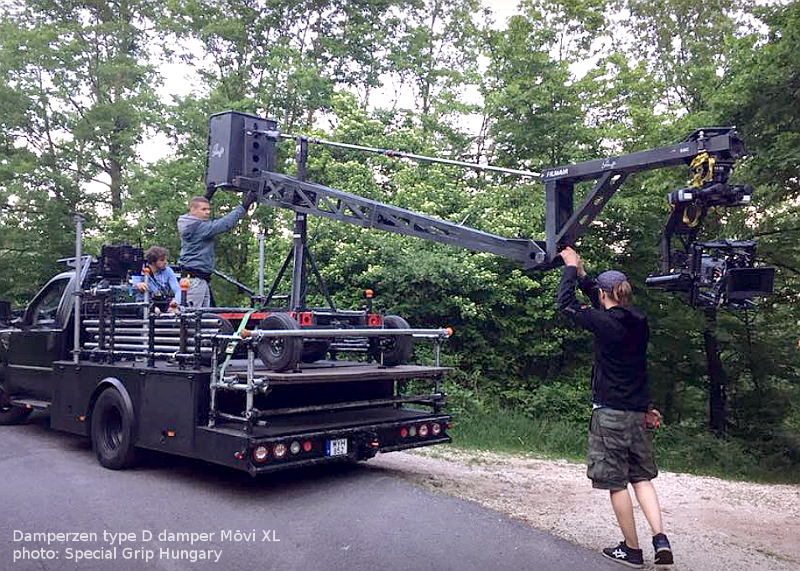

| GFM isolator / Movi XL / type D |
https://www.facebook.com/damperzen/videos/246844509552637/ |

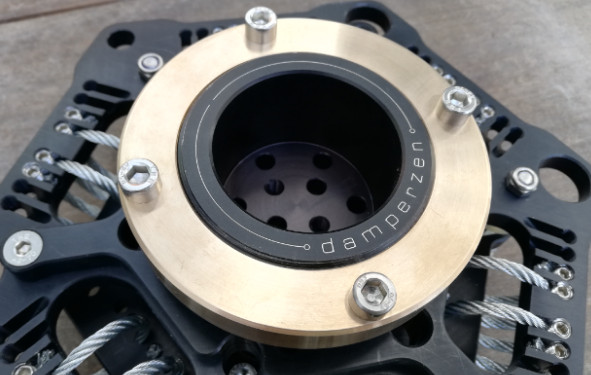

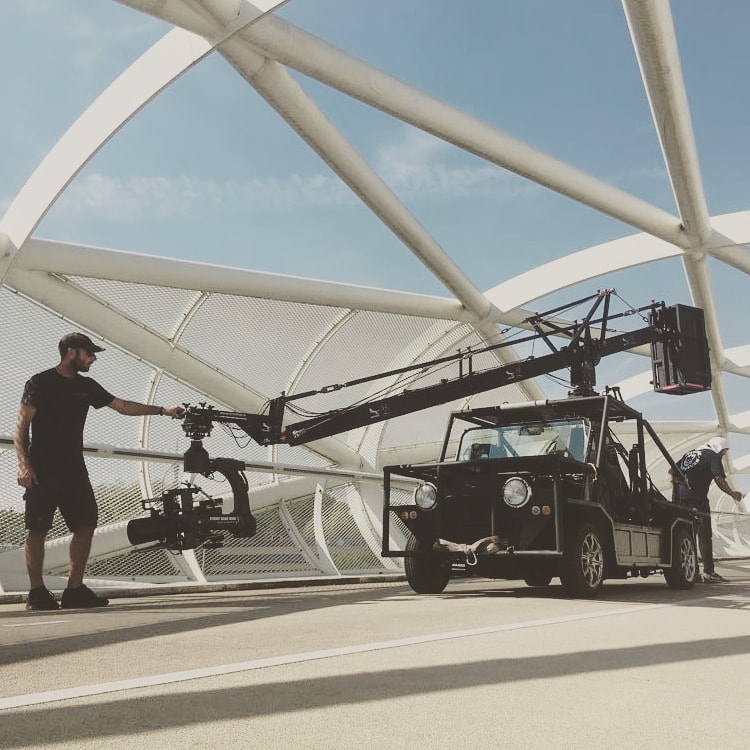

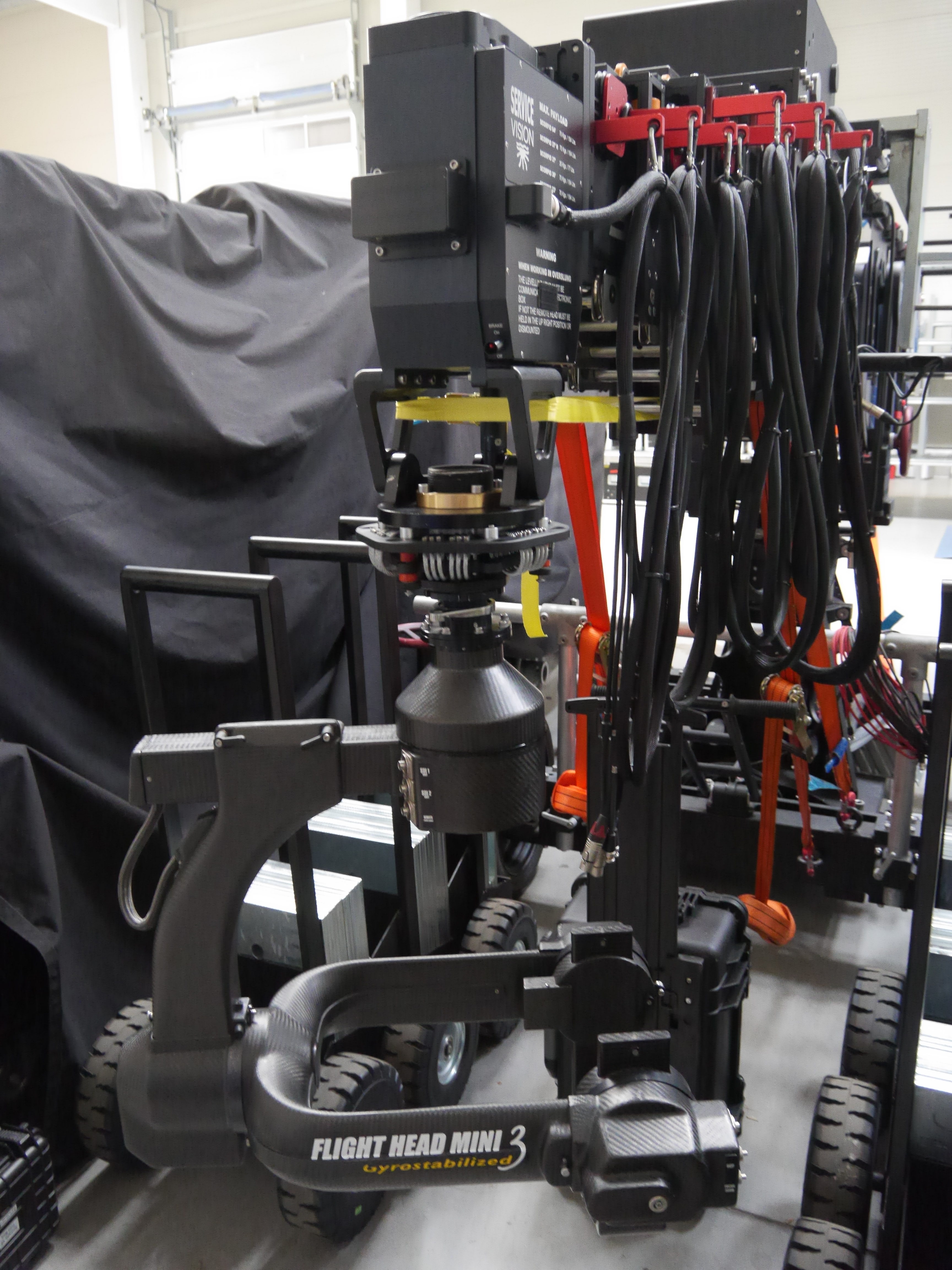

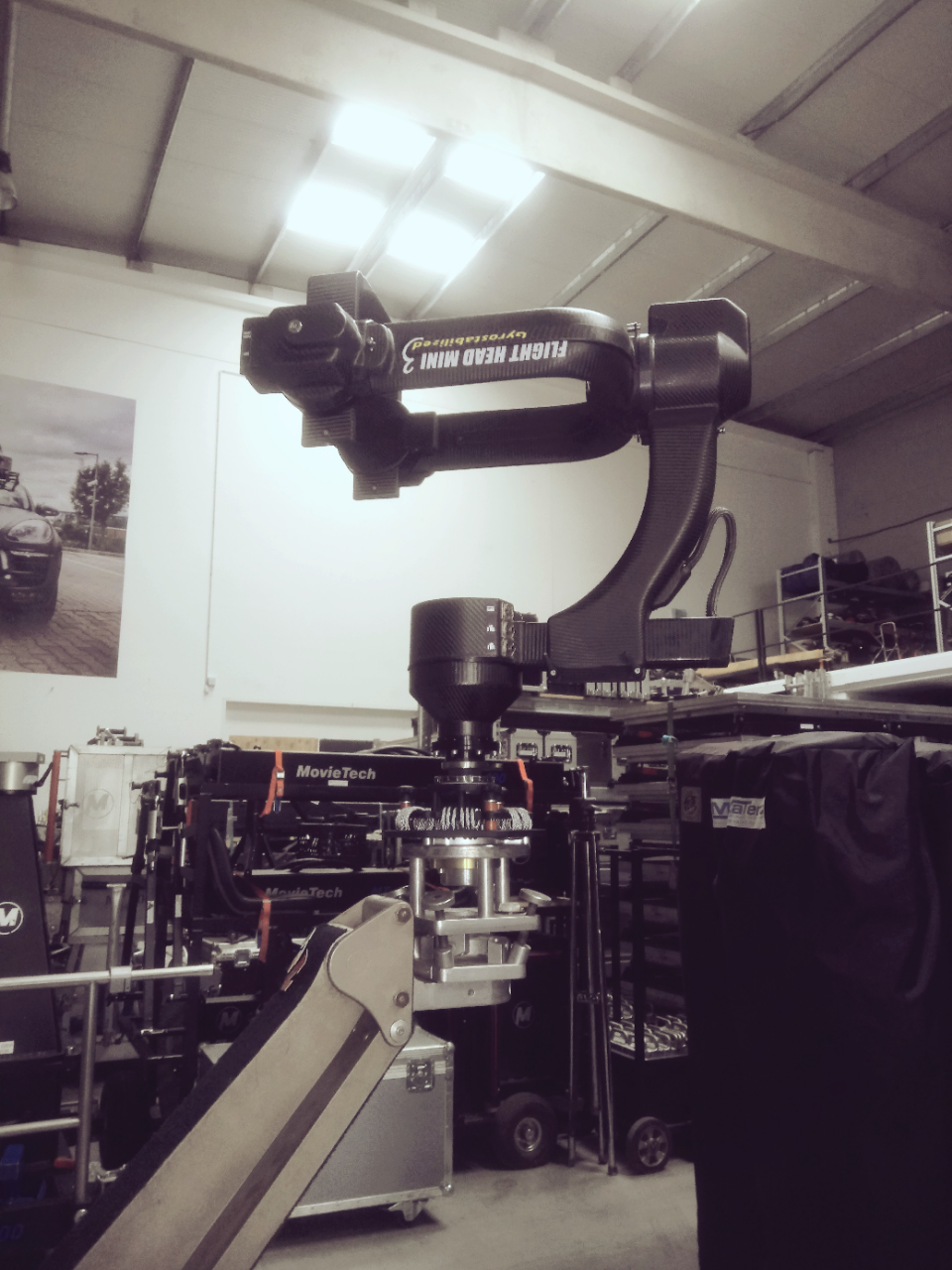

Type D is a damper made for medium-sized gyro heads (Mōvi XL Flight Head Mini DJI Ronin 2 Newtone) It has medium characteristic, works as a perfect vibration isolator, damper, shock absorber. Using damper the head will follow moving of the crane precisely, without any overshot not even in the dynamic movements.
- can use with dolly, crane, isolator arm ..
- under or overslung

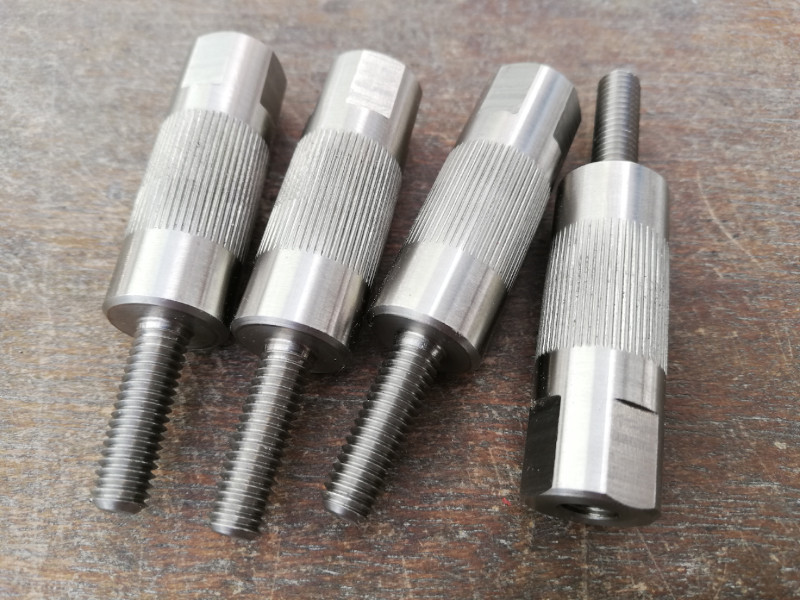

- adjusted with spanner knobs
- auto tune function of gimbals works well with the damper
- user centered design (since 2015)

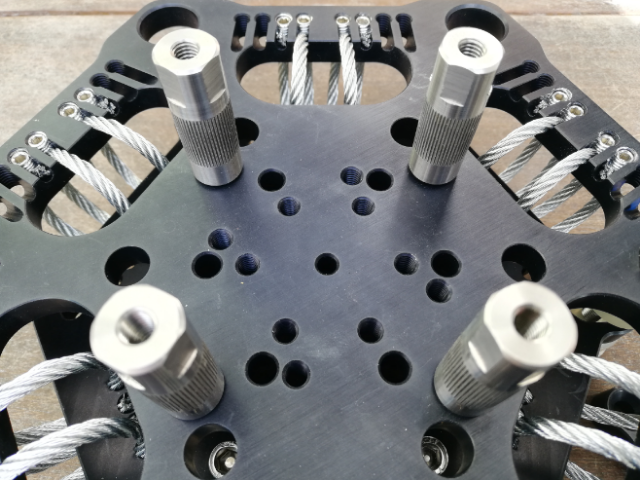

- individual central symmetry hexagon design, ropes work in 45degres tension mode
- d=240mm (hex)

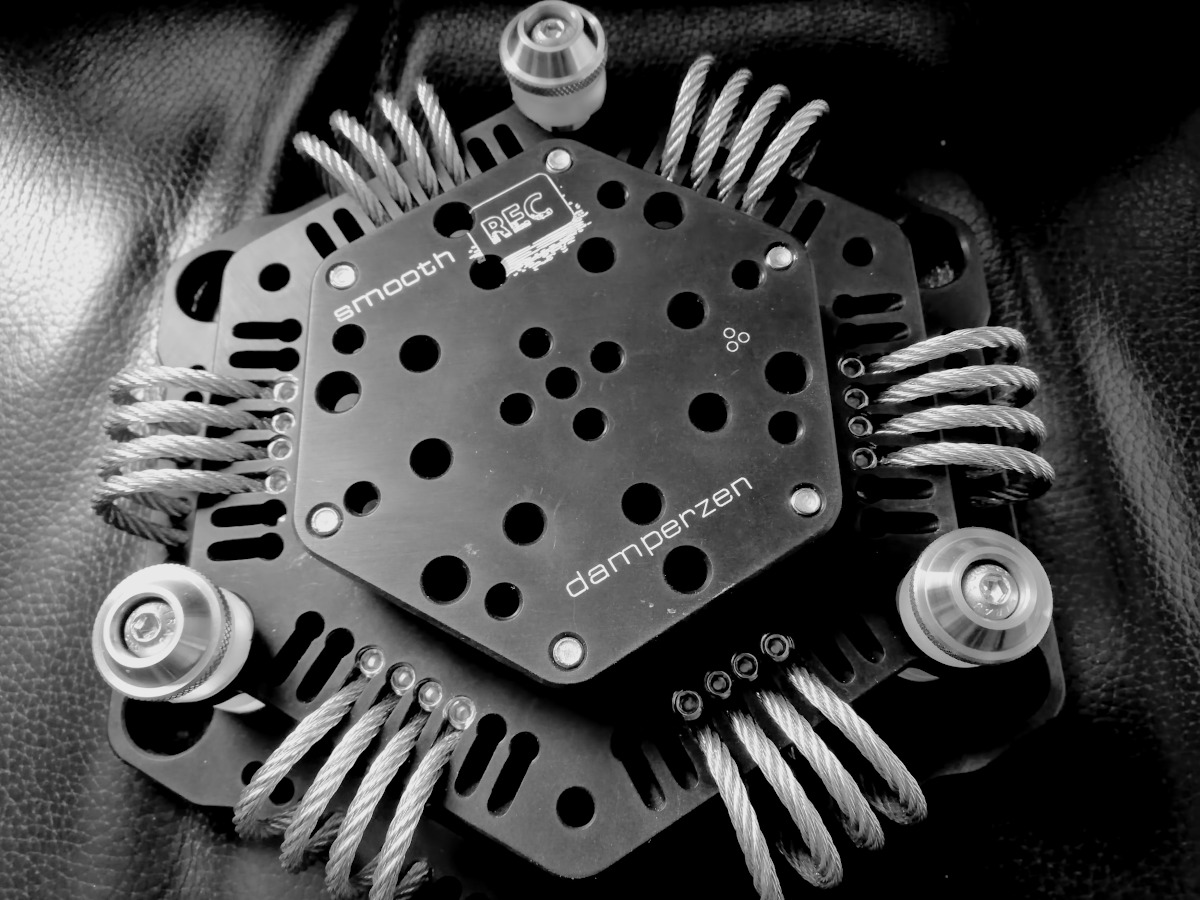

![](http://www.damperzen.com/wp2/wp-content/uploads/2018/05/d-v2-2.jpg") | type D damper damper with mounting plate for gimbals, the adaptors like Mitchell can be selected below | EUR550 | |
 | Mitchell mount | EUR120 | |
 | Euro Adapter | EUR150 | |
|
| Ronin 2 quick release mount | EUR120 | |
 | Blackarm / Motocrane / Ideavision Hybris mount | EUR70 | |

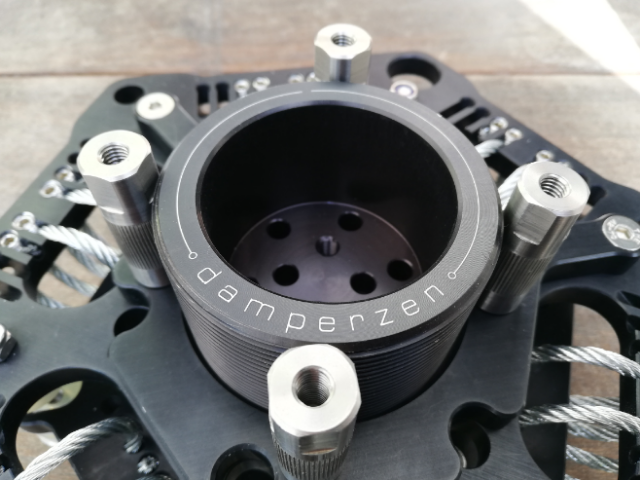

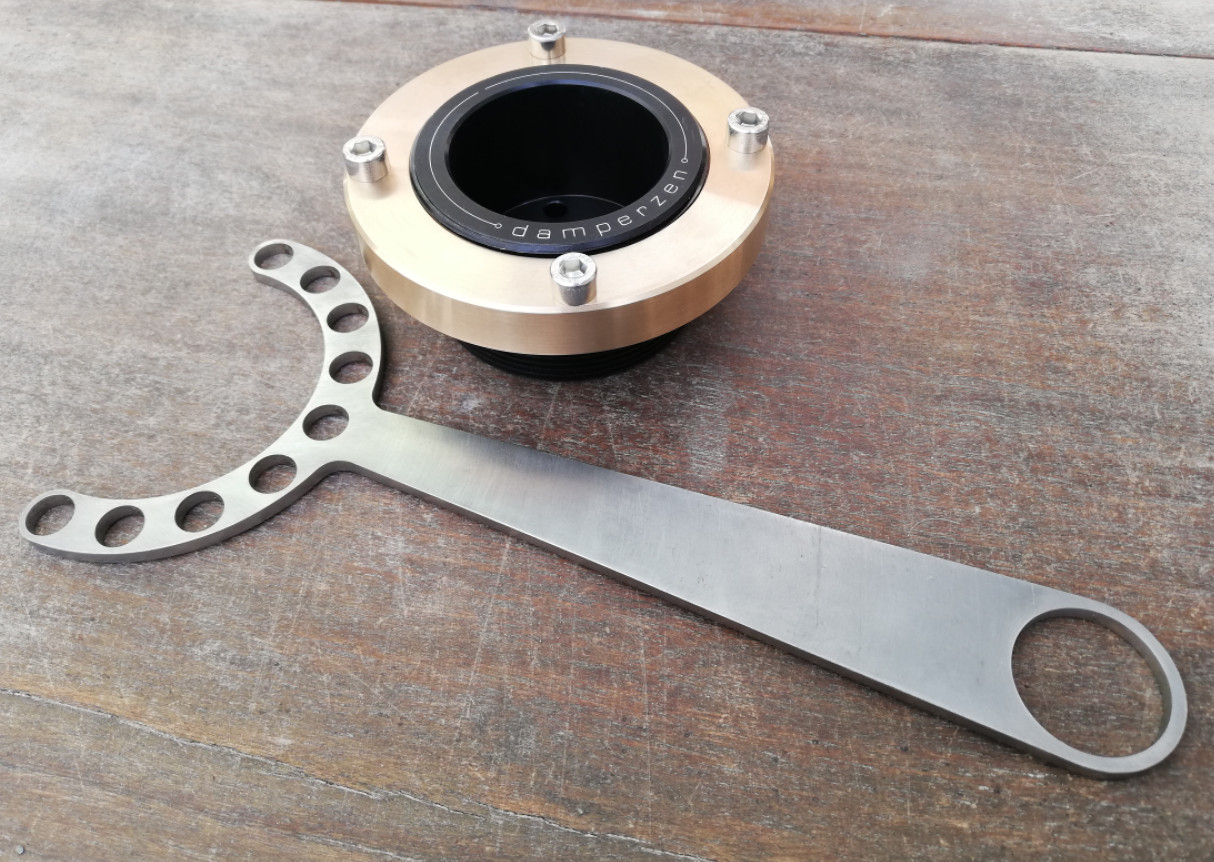

![](http://www.damperzen.com/wp2/wp-content/uploads/2021/07/P7300724-scaled.jpg") | Female Mitchell mount (for heads) | EUR100 | |

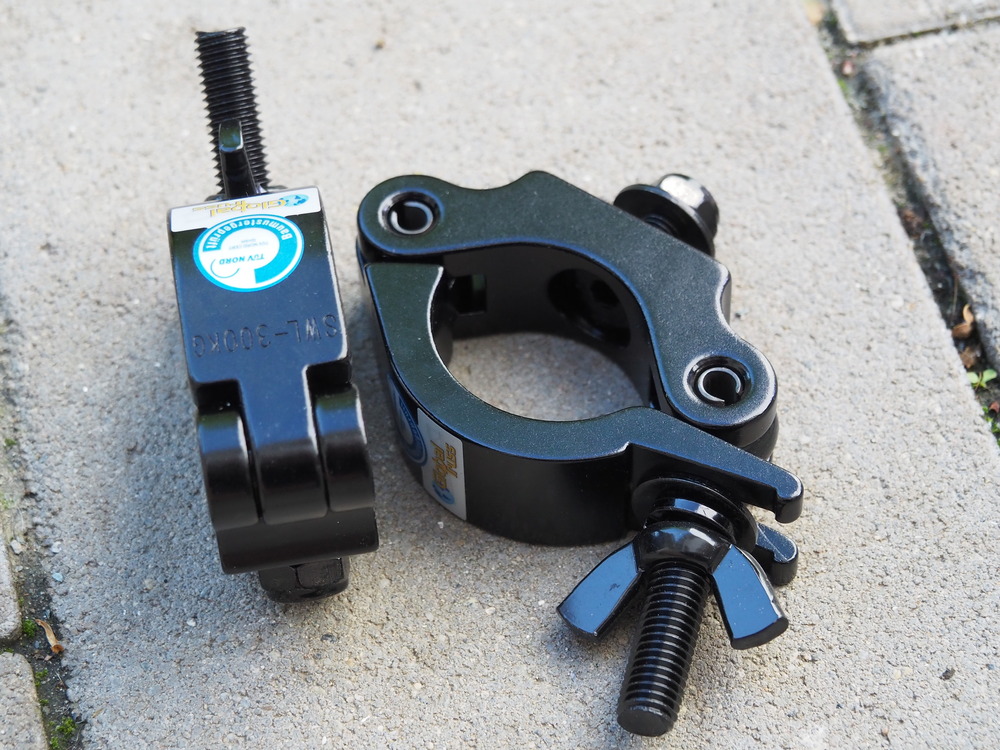

  | Tube clamp 48-51mm 2pcs | EUR50 | |

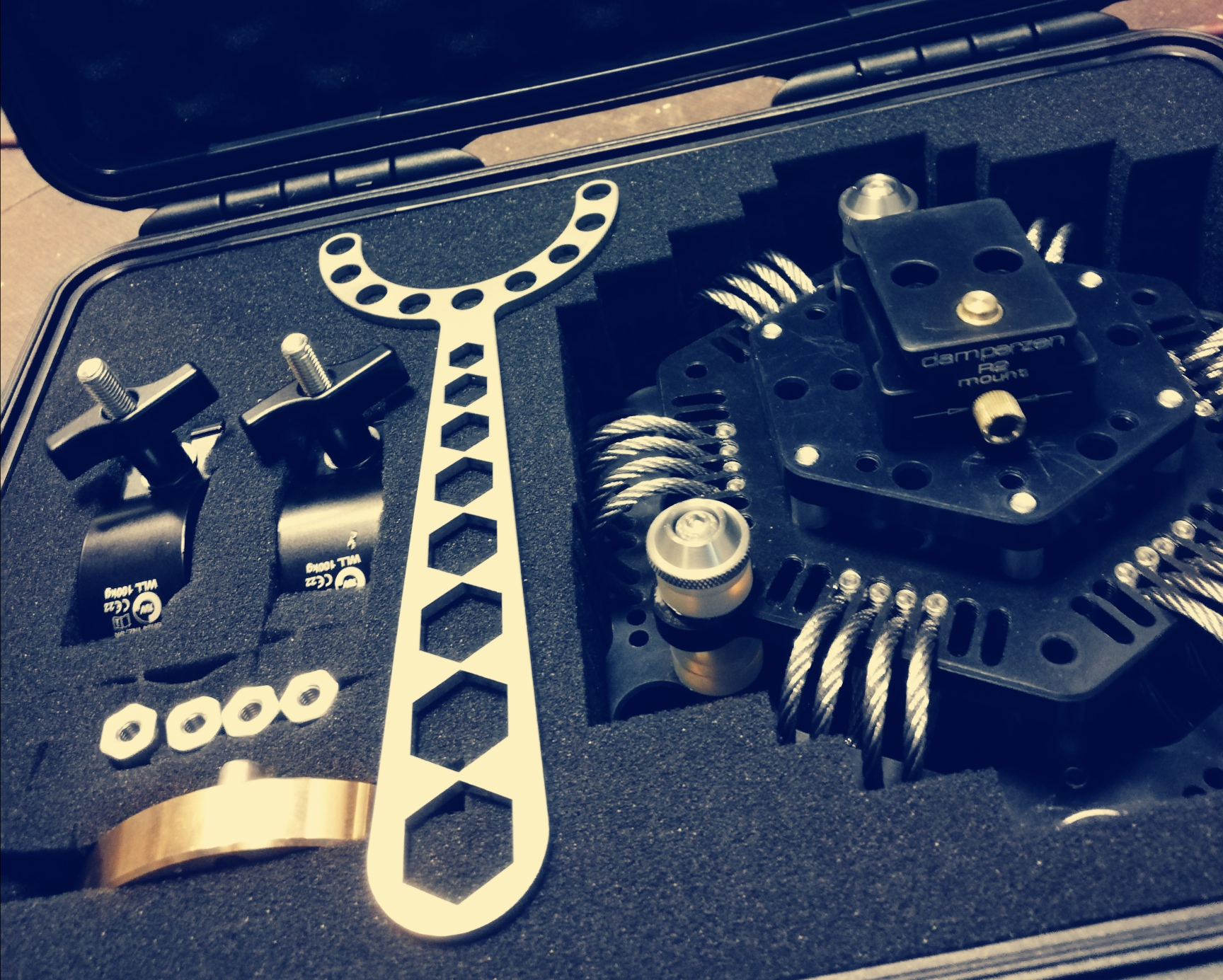

![](http://www.damperzen.com/wp2/wp-content/uploads/2022/11/case.jpg") | Case | EUR120 |
